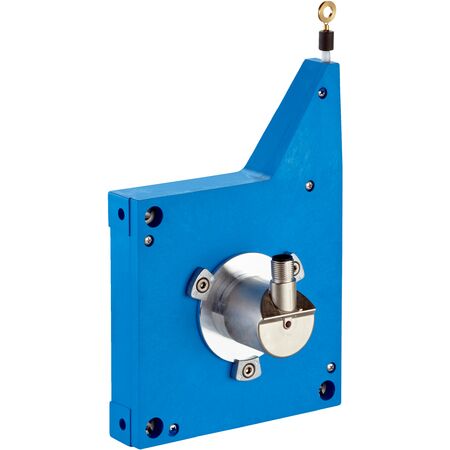

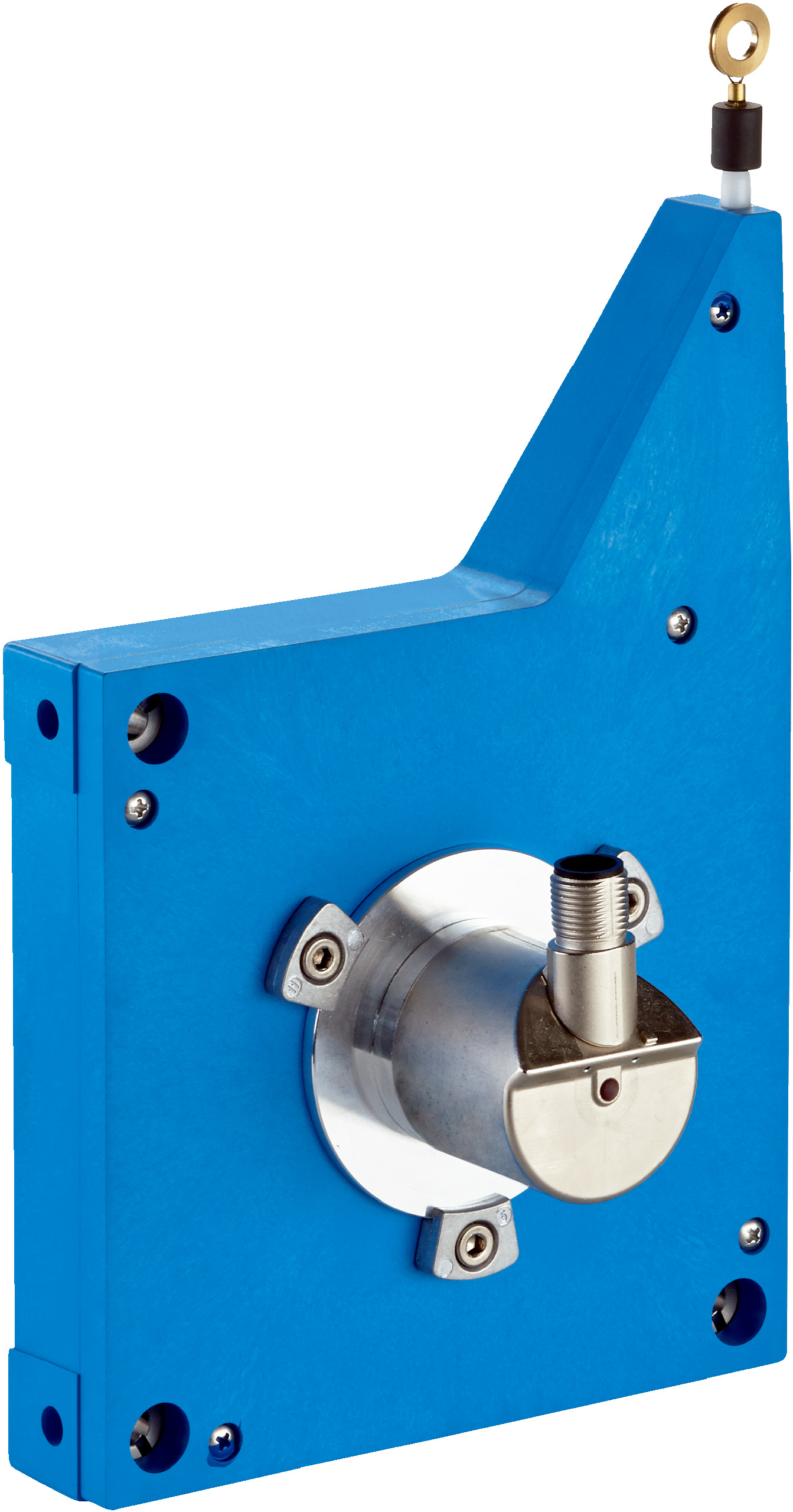

Wire Draw Encoder BCG13-Q1PM0561 | 5m Measurement Range | 0.09mm Resolution | IO-Link Communication | by SICK
The Wire Draw Encoder BCG13-Q1PM0561 offers a measurement range of up to 5 meters with an impressive resolution of 0.09 mm, making it ideal for industrial automation and safety-related applications. Designed for precise position measurement, this absolute encoder features a robust construction with a stainless steel measuring wire and low power consumption, ensuring reliability and efficiency in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.09 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 4.5 N to 7 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 4 m/s²
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP50 (mechanic IP65)
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.92 kg
Key Features
- Measurement range up to 5 meters
- Absolute encoder with high resolution of 0.09 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- IO-Link communication interface (V1.1, COM3 at 230.4 kBaud)
- Programmable and configurable settings
- Robust construction with plastic Noryl housing and stainless steel measuring wire
- Spring return force between 4.5 N and 7 N
- Operating temperature range from -20 °C to +70 °C
- IP50 enclosure rating, IP65 for mounted mechanic
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG13-Q1PM0561 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
