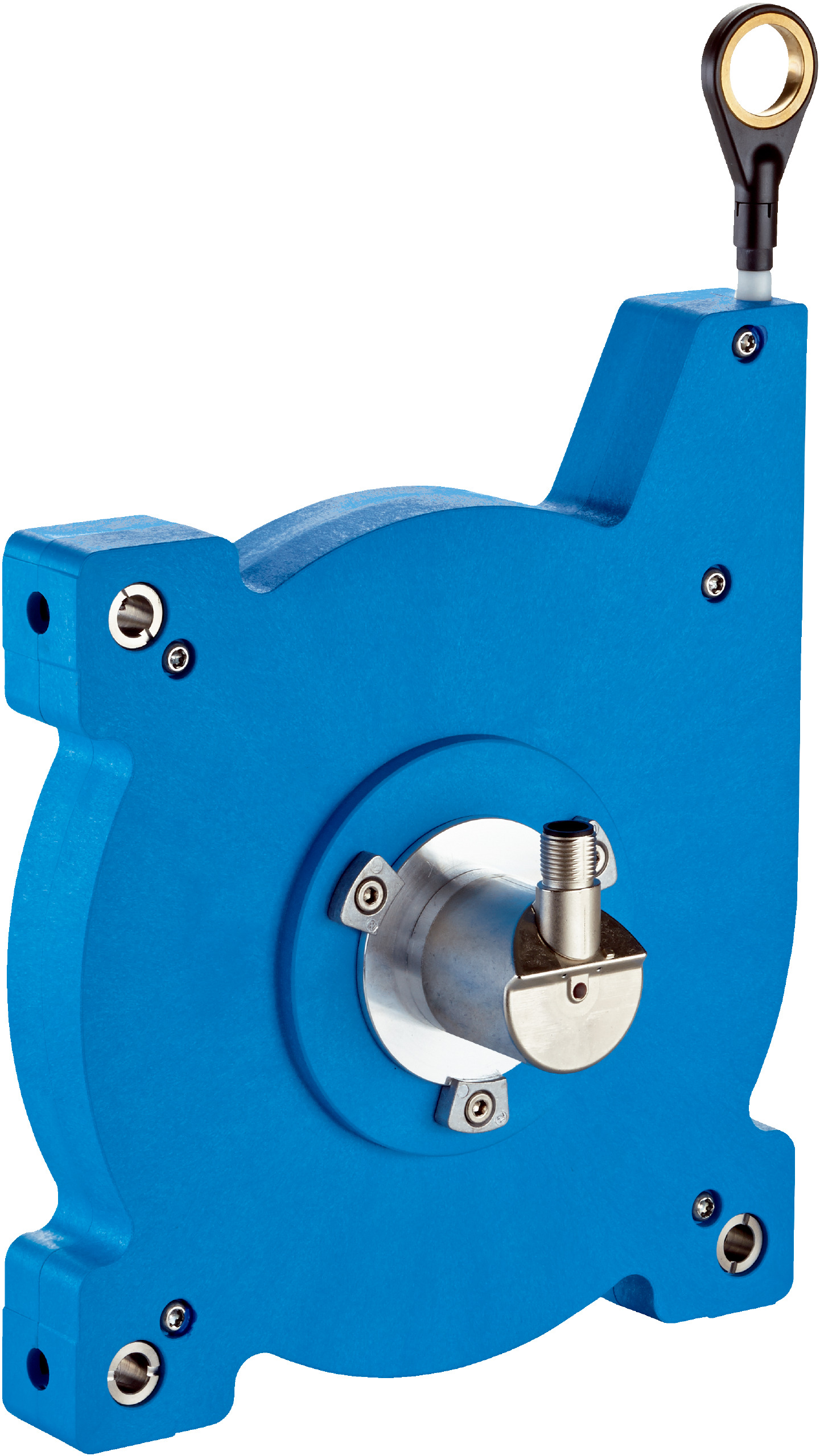

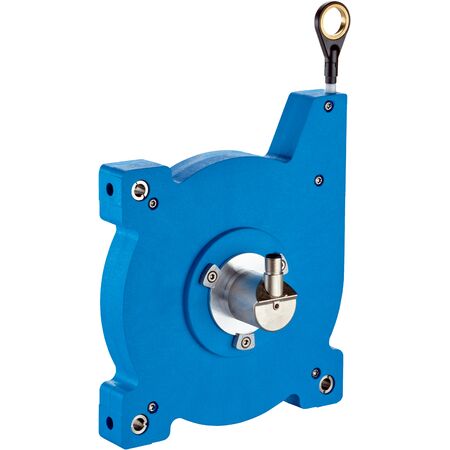

Wire Draw Encoder BCG19-C1QM10S01 | 10m Measurement Range | 0.07mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG19-C1QM10S01 offers a measurement range of up to 10 meters with an impressive resolution of 0.07 mm, making it ideal for precise wire length measurement in industrial automation. Designed for high reliability, it features a robust IP67-rated housing and a long-lasting wire draw mechanism, ensuring optimal performance in safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.07 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 (mechanic IP66, encoder IP67)
- Operating temperature range: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.02 kg
Key Features
- Measurement range up to 10 m
- Absolute encoder with resolution of 0.07 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- CANopen communication interface
- Programmable and configurable device
- Highly flexible stranded stainless steel measuring wire
- Robust housing with IP50 rating, mounted mechanic IP66, encoder IP67
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 9 N and 12 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen devices and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise wire length measurement
- Position feedback in machinery and equipment
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCG19-C1QM10S01 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
