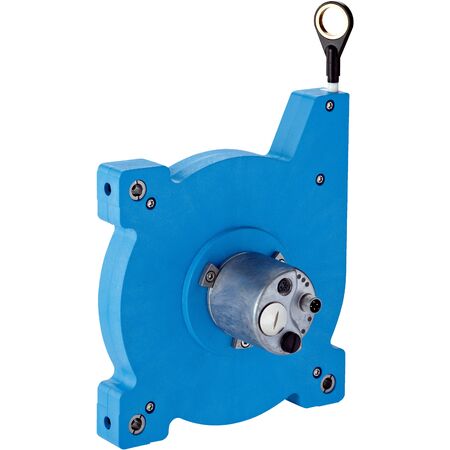

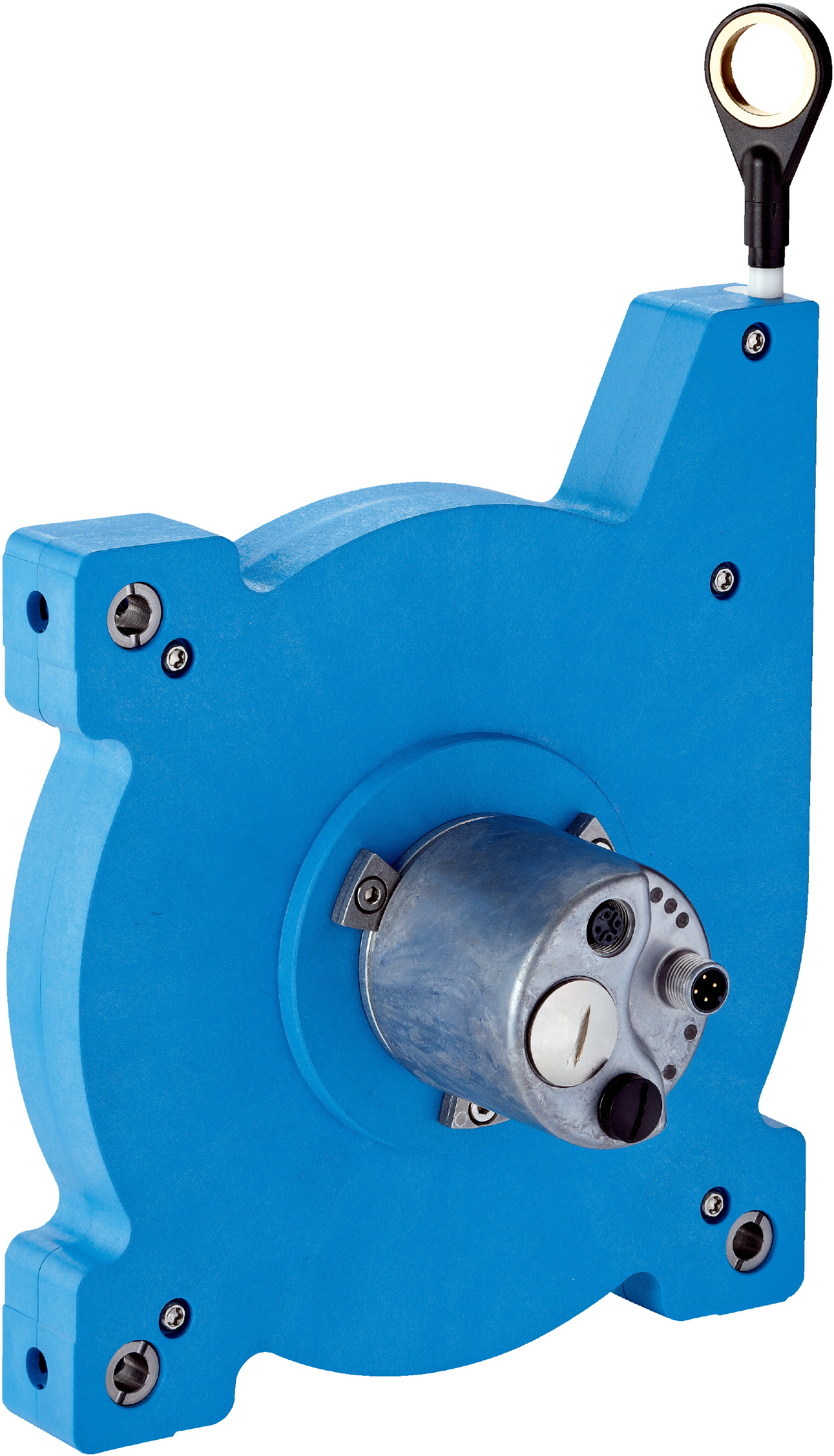

Wire Draw Encoder BCG19-I1BM1099 | 0 to 10 m Measurement Range | 0.002 mm Resolution | EtherNet/IP™ Interface | by SICK
The Wire Draw Encoder BCG19-I1BM1099 offers a measurement range of 0 to 10 m with an impressive resolution of 0.002 mm, making it ideal for precise position measurement in industrial automation. Designed for robust performance, it features an EtherNet/IP™ communication interface and operates efficiently in temperatures from -30 °C to +70 °C, ensuring reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.002 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.1 kg
Key Features
- Measurement range of 0 m to 10 m
- High resolution of 0.002 mm
- Repeatability ≤ 0.2 mm
- Linearity ≤ ± 2 mm
- Hysteresis ≤ 0.4 mm
- EtherNet/IP™ communication interface
- Programmable and configurable
- Robust housing with IP50 rating, mounted mechanic IP67
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 9 N and 12 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and EtherNet/IP communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation and safety monitoring
- Position measurement in machinery
- Process control requiring precise linear measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCG19-I1BM1099 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
