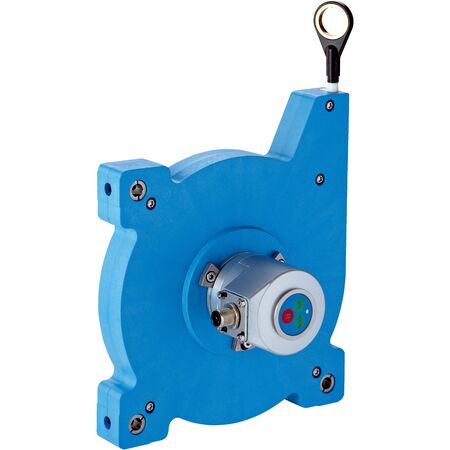

Wire Draw Encoder BCG19-L1EM10PP | 0 m to 10 m Measurement Range | 0.04 mm Resolution | IP50 Rated | by SICK
The Wire Draw Encoder BCG19-L1EM10PP offers a measurement range of 0 m to 10 m with an impressive resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. Designed for precise position feedback, this absolute encoder features a robust IP50-rated housing and operates efficiently in temperatures from –30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: Analog / Voltage / 0...10 V
- Connection type: Male connector, M12, 5-pin, radial
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Mounted encoder model: ACM60, ACM60B-S1LE13X06
- Enclosure rating: IP50 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 600 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.3 kg
Key Features
- Measurement range of 0 m to 10 m
- Absolute encoder for precise position feedback
- High resolution of 0.04 mm
- Repeatability of ≤ 0.2 mm
- Linearity of ≤ ± 2 mm
- Hysteresis of ≤ 0.4 mm
- Analog voltage communication interface (0...10 V)
- Robust housing with IP50 rating, mounted mechanic IP67
- Operating temperature range from –30 °C to +70 °C
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 9 N and 12 N
- Long life wire draw mechanism with typically 1,000,000 cycles
