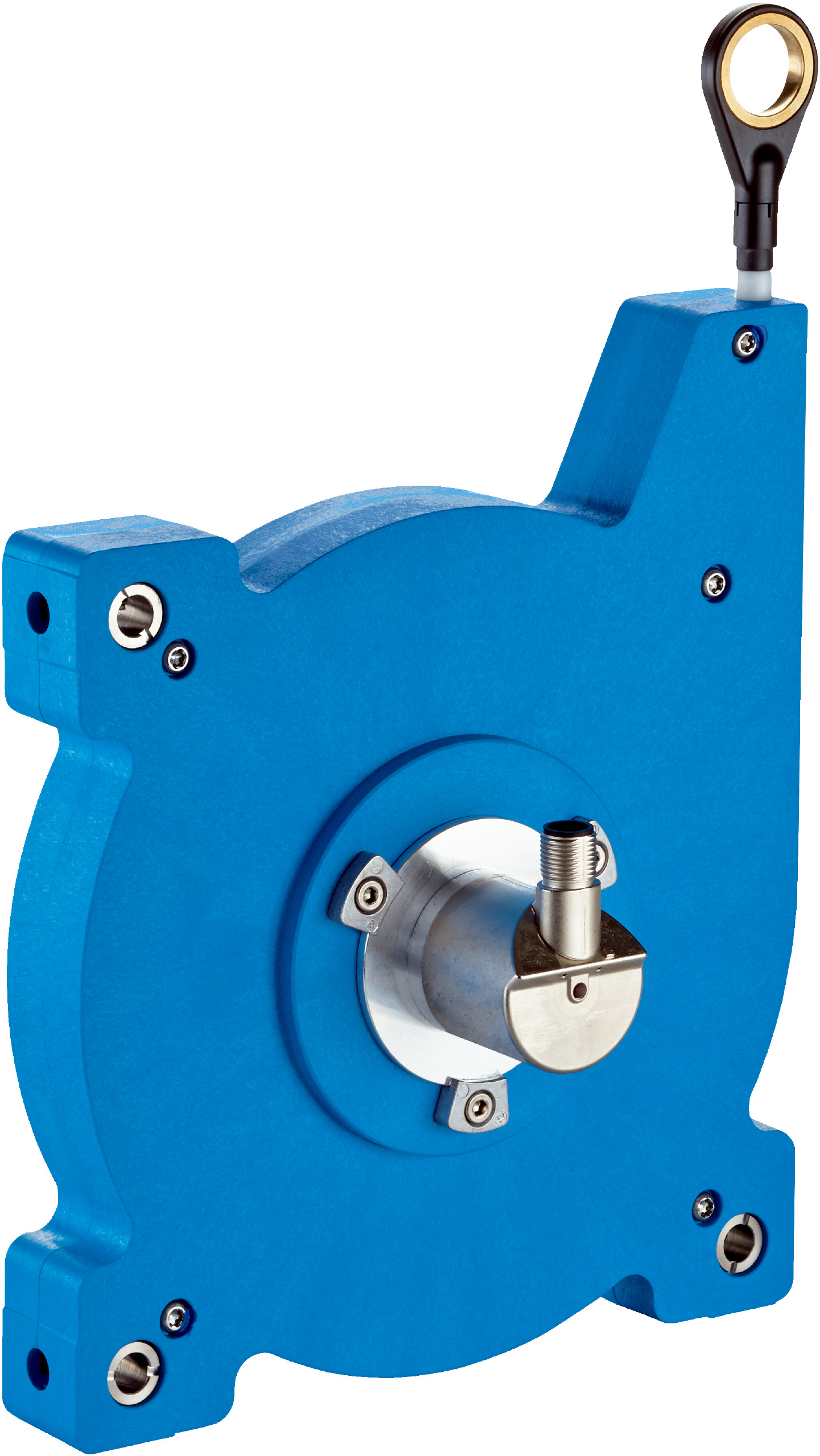

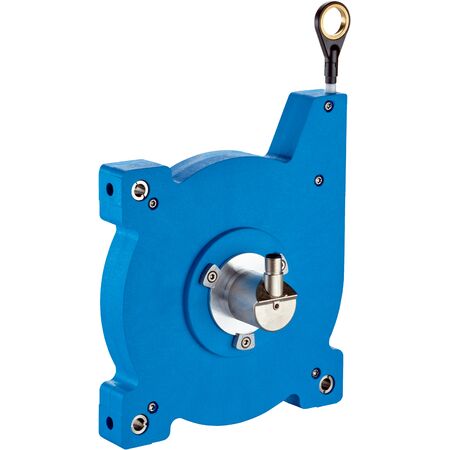

Wire Draw Encoder BCG19-Q1PM1062 | 10m Measurement Range | 0.03mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCG19-Q1PM1062 offers a measurement range of up to 10 meters with an impressive resolution of 0.03 mm, making it perfect for industrial automation and precise length measurement. Designed for high reliability, it features an IP67 rating and a long-lasting wire draw mechanism, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 0.55 mm
- Spring return force: 9 N to 12 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 3 m/s
- Wire acceleration: 8 m/s²
- Enclosure rating: IP50 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature range: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 150mm x 250mm x 150mm
- Weight: 2.02 kg
Key Features
- Measurement range up to 10 m
- Absolute encoder with high resolution of 0.03 mm
- Repeatability ≤ 0.2 mm and linearity ≤ ± 2 mm
- IO-Link communication interface with programmable configuration
- Robust construction with IP50 to IP67 protection ratings
- Operating temperature range from -20 °C to +70 °C
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCG19-Q1PM1062 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
