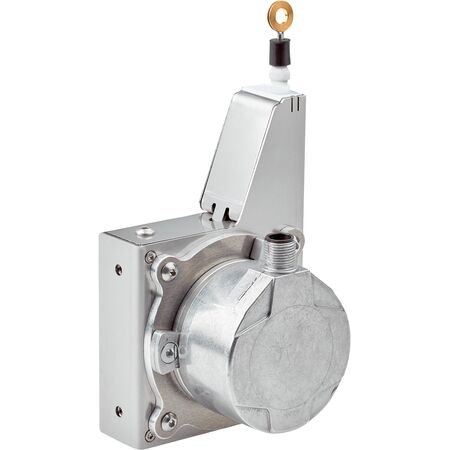

Wire Draw Encoder BCV08-A1CM03N400 | SSI Communication | 0.03 mm Resolution | Robust Stainless Steel | by SICK
The Wire Draw Encoder BCV08-A1CM03N400 offers high measurement accuracy with a 0.03 mm resolution and SSI communication interface, making it ideal for industrial automation and safety-related applications. Built for durability with a robust stainless steel wire draw mechanism, it ensures a long service life of typically 1,000,000 cycles, providing reliable feedback for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.03 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Housing material: Stainless steel 1.4301
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Actual wire draw length: 3.2 m
- Operating speed: 4 m/s
- Mounted encoder model: AFM60 SSI
- Enclosure rating: IP60 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.9 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement accuracy with 0.03 mm resolution
- Robust stainless steel wire draw mechanism
- Long service life with typically 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 8 N and 10 N
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption at ≤ 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BCV08-A1CM03N400 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
