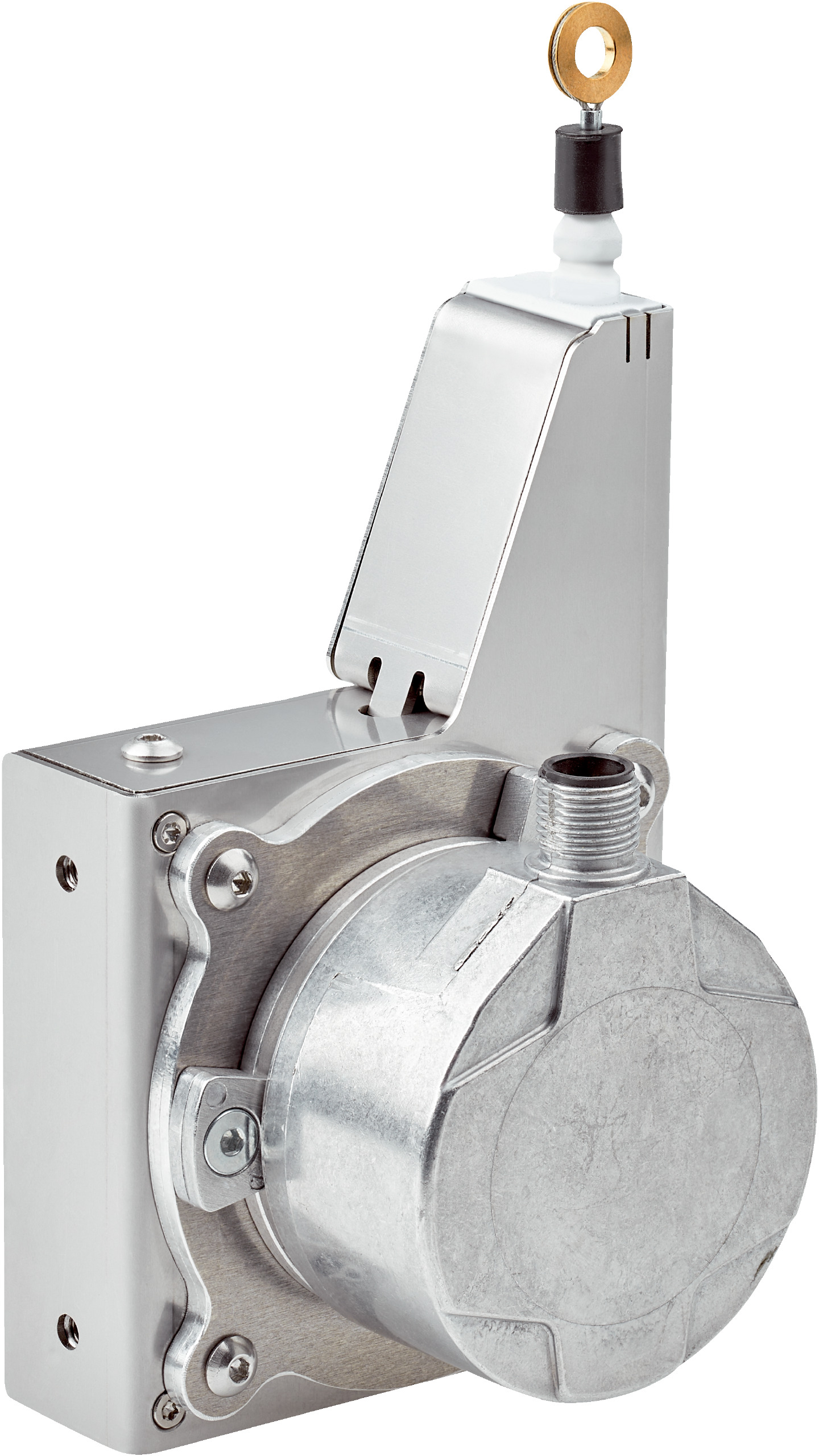

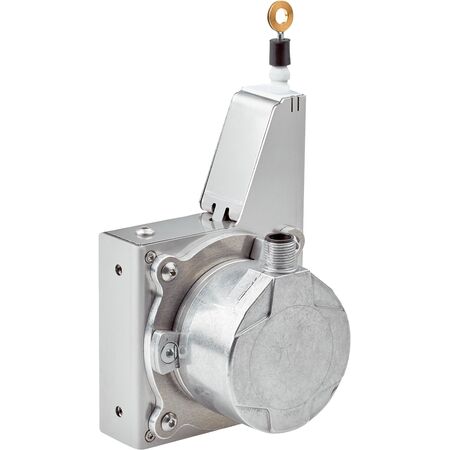

Wire Draw Encoder BCV08-A1CM03N600 | Absolute Encoder with SSI | 0.06 mm Resolution | IP60 Rated | by SICK
The Wire Draw Encoder BCV08-A1CM03N600 is an absolute encoder designed for precise position measurement in industrial automation. With a measurement range of up to 3 meters and a high resolution of 0.06 mm, it ensures reliable feedback for machine control systems. Built with robust stainless steel housing, it operates in temperatures from -30 °C to +70 °C, making it ideal for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.06 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: SSI
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 0.7 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Housing material: Stainless steel 1.4301
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: AFM60 SSI
- Enclosure rating: IP60 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 250 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.9 kg
Key Features
- Absolute encoder with SSI communication interface
- Measurement range up to 3 meters
- High resolution of 0.06 mm
- Repeatability ≤ 0.3 mm and linearity ≤ ± 2 mm
- Robust stainless steel housing and wire draw mechanism
- Spring return force between 8 N and 10 N
- Operating temperature range from –30 °C to +70 °C
- IP60 enclosure rating, mounted mechanic IP67
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper connection and compliance with AS/NZS 3000 wiring rules.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with wire draw measurement needs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-A1CM03N600 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
