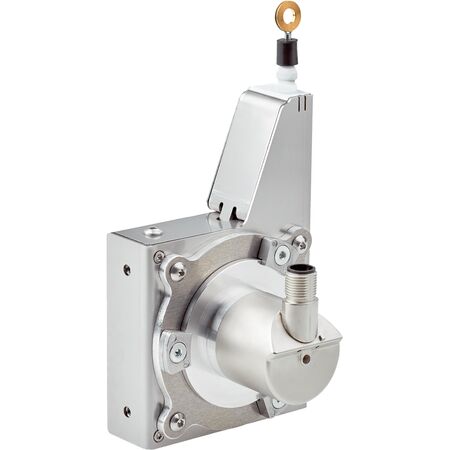

Wire Draw Encoder BCV08-A1NM03M400 | SSI Communication | 0.03 mm Resolution | IP67 Rated | by SICK
The Wire Draw Encoder BCV08-A1NM03M400 is designed for precise position measurement in industrial automation. With a high resolution of 0.03 mm and repeatability of ≤ 0.3 mm, it ensures reliable performance in safety-related applications. Built with a robust stainless steel wire draw mechanism and an operating temperature range of -30 °C to +70 °C, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.03 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin, universal
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: AHM36 SSI
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP60 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.72 kg
Key Features
- Absolute encoder with SSI communication interface
- High resolution of 0.03 mm and repeatability ≤ 0.3 mm
- Robust stainless steel wire draw mechanism with 3.2 m wire length
- Spring return force between 8 N and 10 N
- Operating temperature range from -30 °C to +70 °C
- IP60 enclosure rating with IP66 for mounted mechanic and IP67 for encoder
- Low power consumption ≤ 1.5 W
- Programmable and configurable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-A1NM03M400 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
