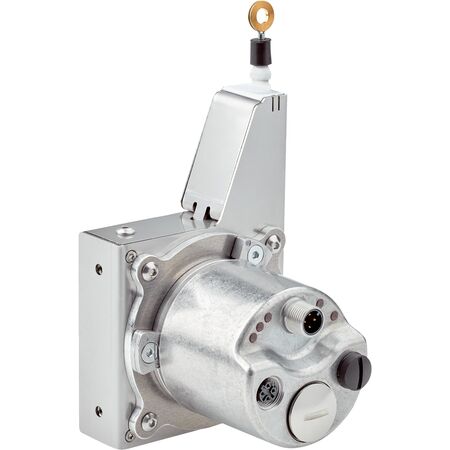

Wire Draw Encoder BCV08-E1BM03N200 | 0.0009 mm Resolution | EtherCAT Communication | IP60 Enclosure | by SICK
The Wire Draw Encoder BCV08-E1BM03N200 offers precise linear measurement with a high resolution of 0.0009 mm and a measurement range of up to 3 meters. Designed for industrial automation, it features EtherCAT communication and a robust stainless steel construction, ensuring reliability in safety-critical applications. With an operating temperature range of -30 °C to +70 °C, this encoder is perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.0009 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: EtherCAT® / CoE (CAN over EtherCAT®)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Stainless steel 1.4401
- Spring return force: 8 N to 10 N
- Operating speed: 4 m/s
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP60 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.8 kg
Key Features
- Absolute encoder with high resolution of 0.0009 mm
- Measurement range up to 3 meters
- Repeatability ≤ 0.3 mm and linearity ≤ ± 2 mm
- Communication via EtherCAT® / CoE (CAN over EtherCAT®)
- Programmable and configurable interface
- Robust stainless steel wire draw mechanism with 1,000,000 cycle life
- Operating temperature range from –30 °C to +70 °C
- IP60 enclosure rating, IP67 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 3 W reduces energy usage
- Compliance with China-RoHS supports environmental safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BCV08-E1BM03N200 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-critical measurement applications.
