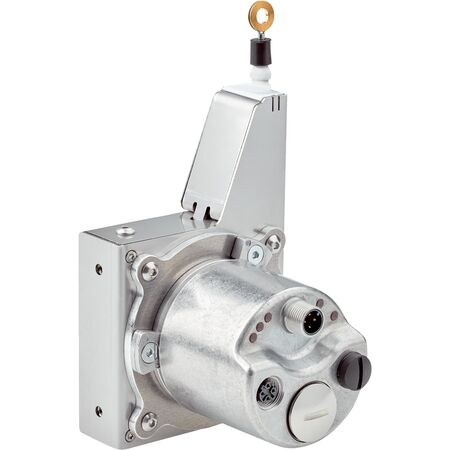

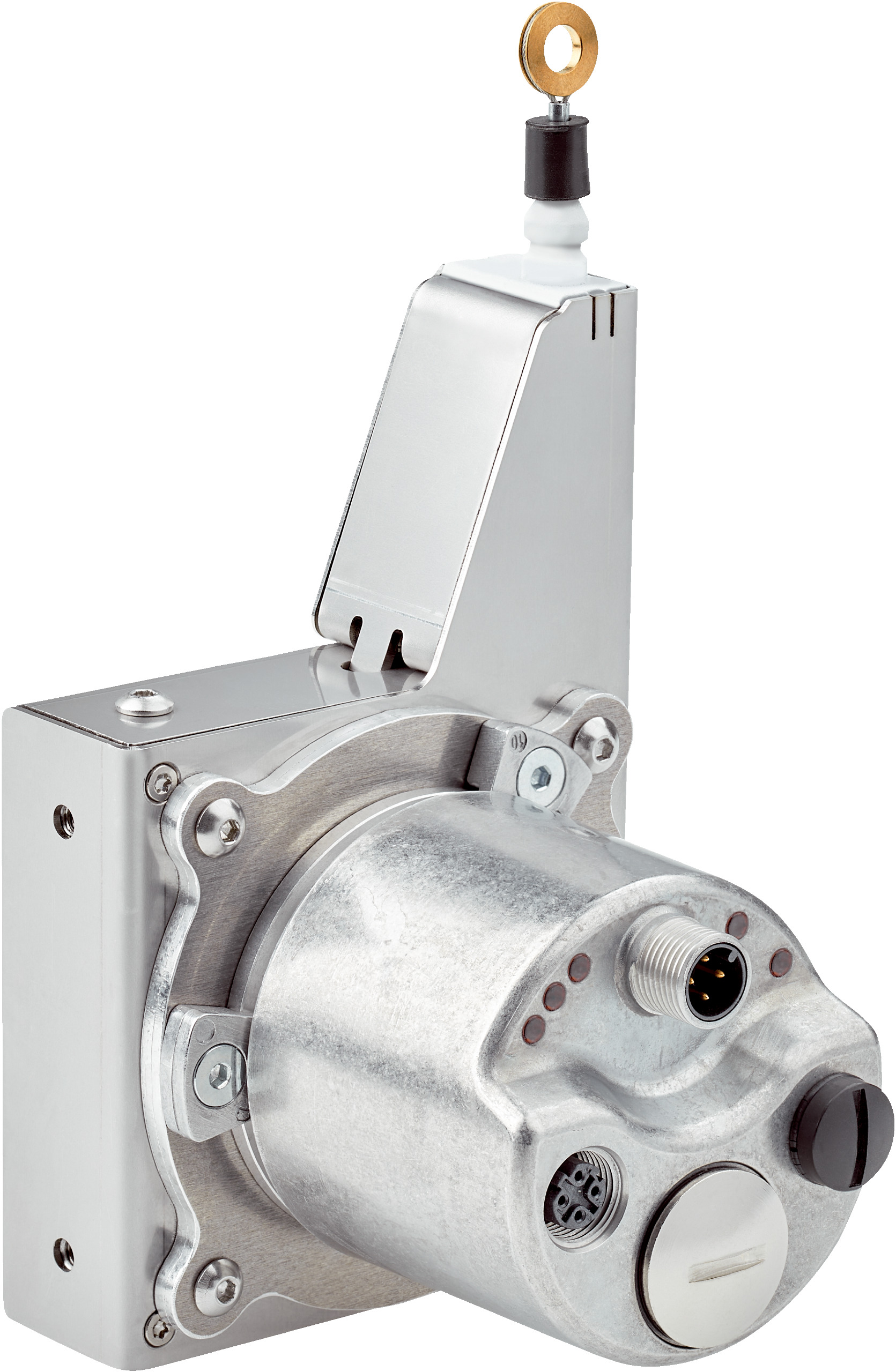

Wire Draw Encoder BCV08-I1BM03N200 | 0.0009 mm Resolution | 3 m Measurement Range | EtherNet/IP Interface | by SICK
The Wire Draw Encoder BCV08-I1BM03N200 offers precise linear measurement with a high resolution of 0.0009 mm and a measurement range of up to 3 meters. Designed for industrial automation, it features an EtherNet/IP communication interface and robust stainless steel construction, making it ideal for safety-related applications and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.0009 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: EtherNet/IP
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Spring return force: 8 N to 10 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Enclosure rating: IP60 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.8 kg
Key Features
- Absolute encoder with high resolution of 0.0009 mm
- Measurement range up to 3 meters
- Repeatability ≤ 0.3 mm and linearity ≤ ± 2 mm
- EtherNet/IP communication interface with programmable configuration
- Robust stainless steel wire draw mechanism with IP67 rating on mounted mechanic
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 8 N and 10 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and EtherNet/IP network configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption of ≤ 3 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-I1BM03N200 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
