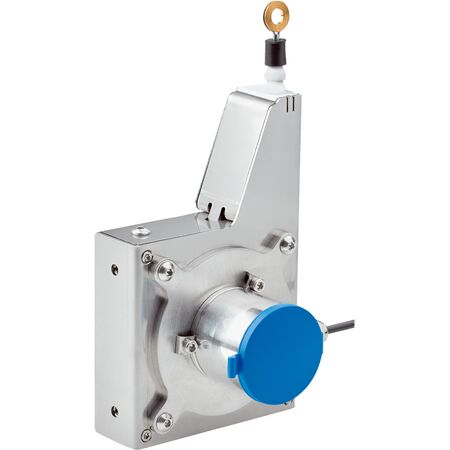

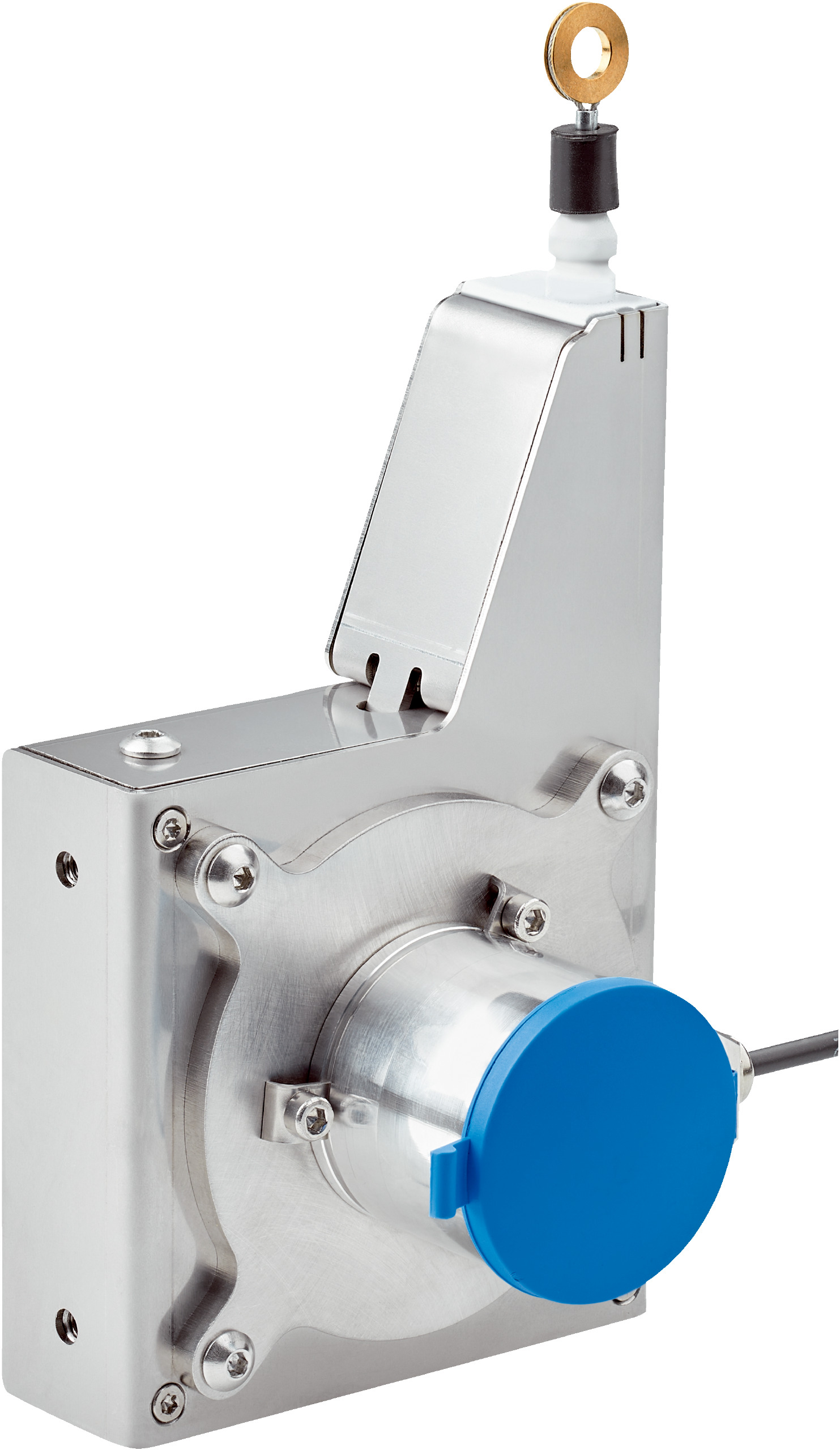

Wire Draw Encoder BCV08-L1KM03P200 | 3m Measurement Range | High Repeatability | IP60 Enclosure | by SICK
The Wire Draw Encoder BCV08-L1KM03P200 is designed for precise length measurement in industrial automation, featuring a measurement range of up to 3 meters and a high repeatability of ≤ 0.3 mm. Built with robust stainless steel, it operates in temperatures from -30 °C to +70 °C, making it ideal for safety-related applications and machine monitoring systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.06 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: Analog / Voltage / 0...10 V
- Connection type: Cable, radial, 1.5 m
- Supply voltage: 19 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Housing material: Stainless steel 1.4301
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: ACM36, ACM36-L1K0-K01
- Enclosure rating: IP60 (mechanic IP65)
- Operating temperature range: -30 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 0.7 kg
Key Features
- Absolute encoder for accurate position measurement
- Measurement range up to 3 meters
- High repeatability of ≤ 0.3 mm
- Robust stainless steel wire and housing
- Spring return force between 8 N and 10 N
- Operating temperature range from -30 °C to +70 °C
- IP60 enclosure rating with IP65 for mounted mechanic
- EMC compliant according to EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration to ensure safety and optimal performance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- High precision reduces material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-L1KM03P200 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
