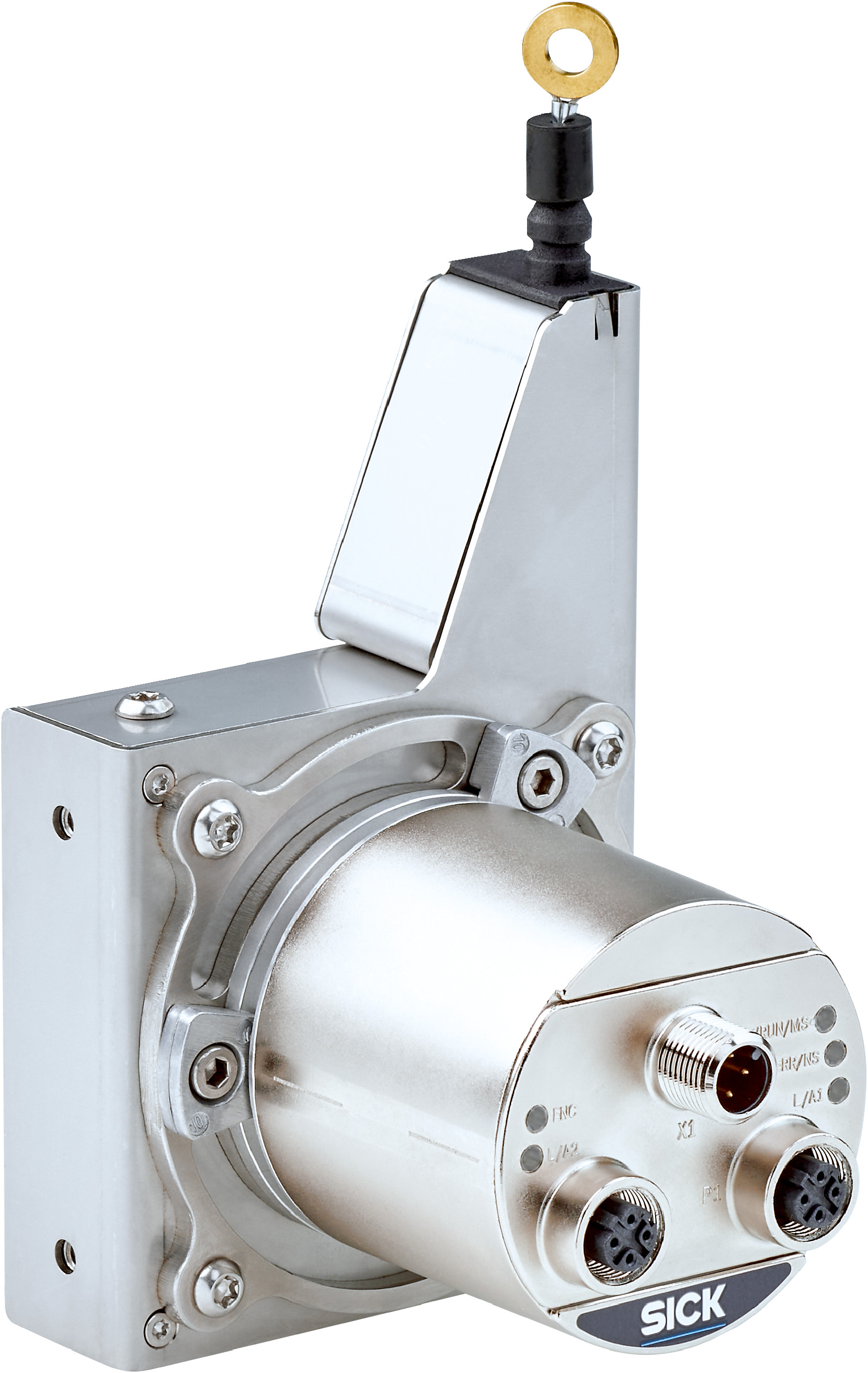

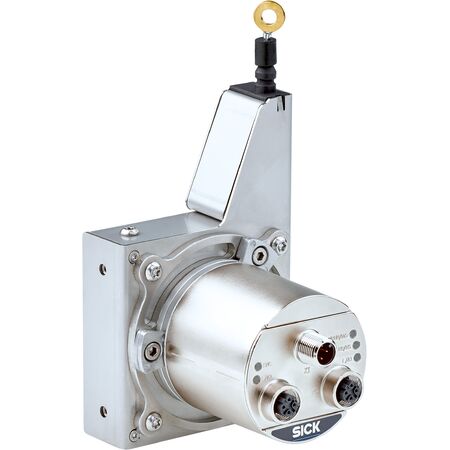

Wire Draw Encoder BCV08-N1BM03Q400 | PROFINET Communication | 0.001 mm Resolution | IP60 Enclosure | by SICK
The Wire Draw Encoder BCV08-N1BM03Q400 features a high resolution of 0.001 mm and a robust stainless steel wire draw mechanism, making it ideal for precise linear measurement in industrial automation. With PROFINET communication and an operating temperature range of -30 °C to +70 °C, this encoder ensures reliable position feedback in manufacturing machinery and safety-related monitoring in automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: PROFINET
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Housing material: Stainless steel 1.4301
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder model: ANM58 PROFINET
- Enclosure rating: IP60 (mechanic IP65)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.1 kg
Key Features
- Absolute encoder with PROFINET communication interface
- High resolution of 0.001 mm with repeatability ≤ 0.3 mm
- Robust stainless steel wire draw mechanism with 3.2 m wire length
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 8 N and 10 N
- IP60 enclosure rating, IP65 for mounted mechanic
- Power consumption ≤ 3 W without load
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET systems and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial automation for precise linear measurement
- Position feedback in manufacturing machinery
- Safety-related monitoring in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage during operation
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-N1BM03Q400 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
