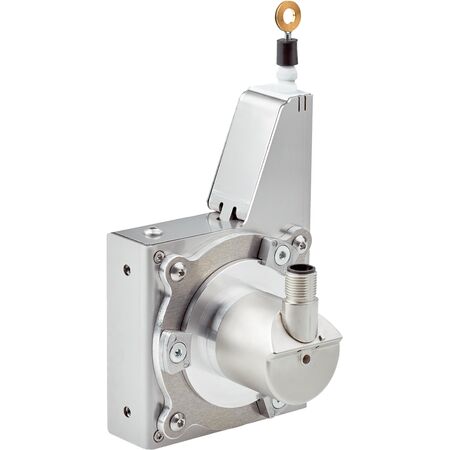

Wire Draw Encoder BCV08-Q1PM03M200 | IO-Link V1.1 | 0.01 mm Resolution | Robust Stainless Steel | by SICK
The Wire Draw Encoder BCV08-Q1PM03M200 is designed for precise position measurement in industrial automation. With a high resolution of 0.01 mm and repeatability of ≤ 0.3 mm, it ensures accurate performance in machine safety and monitoring systems. Built with robust stainless steel housing, it operates in a wide temperature range of -30 °C to +70 °C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 0.3 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 1.2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Stainless steel 1.4401
- Measuring wire diameter: 0.81 mm
- Housing material: Stainless steel 1.4301
- Spring return force: 8 N to 10 N
- Length of wire pulled out per revolution: 230 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Mounted encoder: AHM36 IO-Link Advanced
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP60 (mechanic IP66)
- Operating temperature range: -30 °C to +70 °C
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 0.72 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.01 mm with repeatability ≤ 0.3 mm
- Robust stainless steel housing and measuring wire
- Spring return force between 8 N and 10 N
- Operating temperature range from -30 °C to +70 °C
- IP60 enclosure rating with IP66 for mounted mechanic
- Power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine safety and monitoring systems
- Process control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BCV08-Q1PM03M200 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
