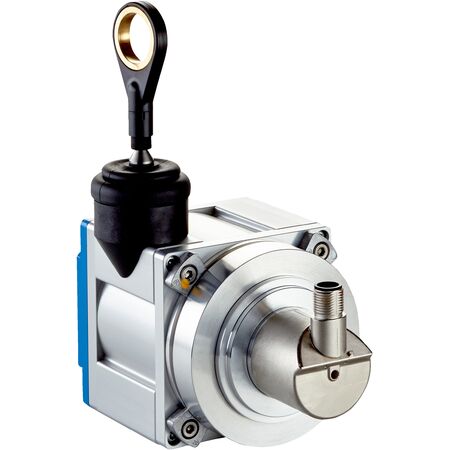

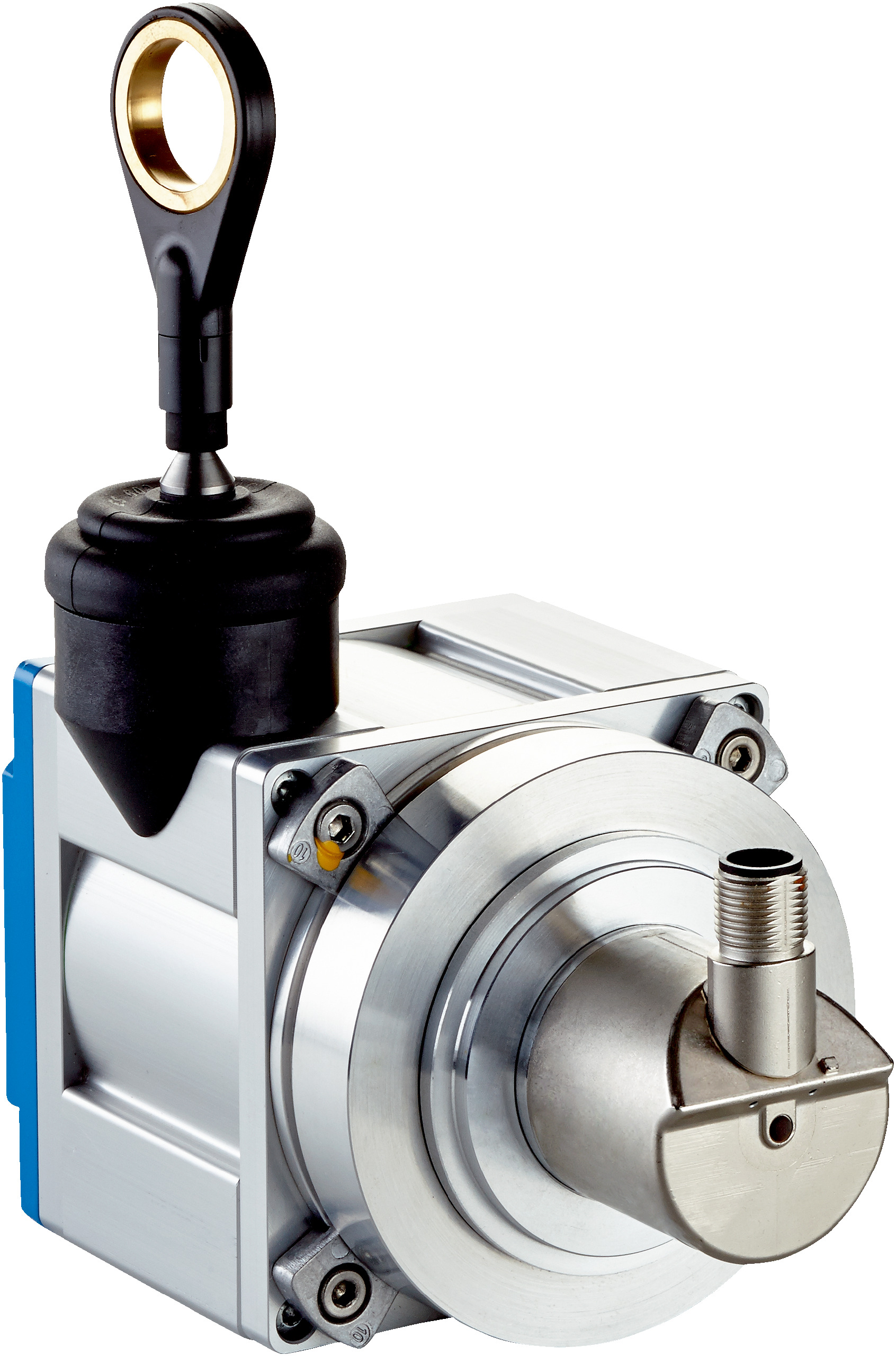

Wire Draw Encoder BTF08-A1NM0241 | 0.02 mm Resolution | IP64 to IP67 Rated | by SICK
The Wire Draw Encoder BTF08-A1NM0241 features a high resolution of 0.02 mm and an absolute encoder with SSI communication interface, making it ideal for precise position measurement in industrial automation. With a robust aluminum housing and a wide operating temperature range from -30 °C to +70 °C, this encoder is built for durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with SSI communication interface
- High resolution of 0.02 mm with repeatability ≤ 1 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Measuring wire made of highly flexible stainless steel
- Long wire draw length of 2.2 m with 1,000,000 cycle life
- Wide operating temperature range from -30 °C to +70 °C
- IP64 to IP67 rated enclosure for harsh environments
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool monitoring and control
- Robotics and material handling systems
- Safety-related position feedback in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF08-A1NM0241 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-related position measurement applications.
