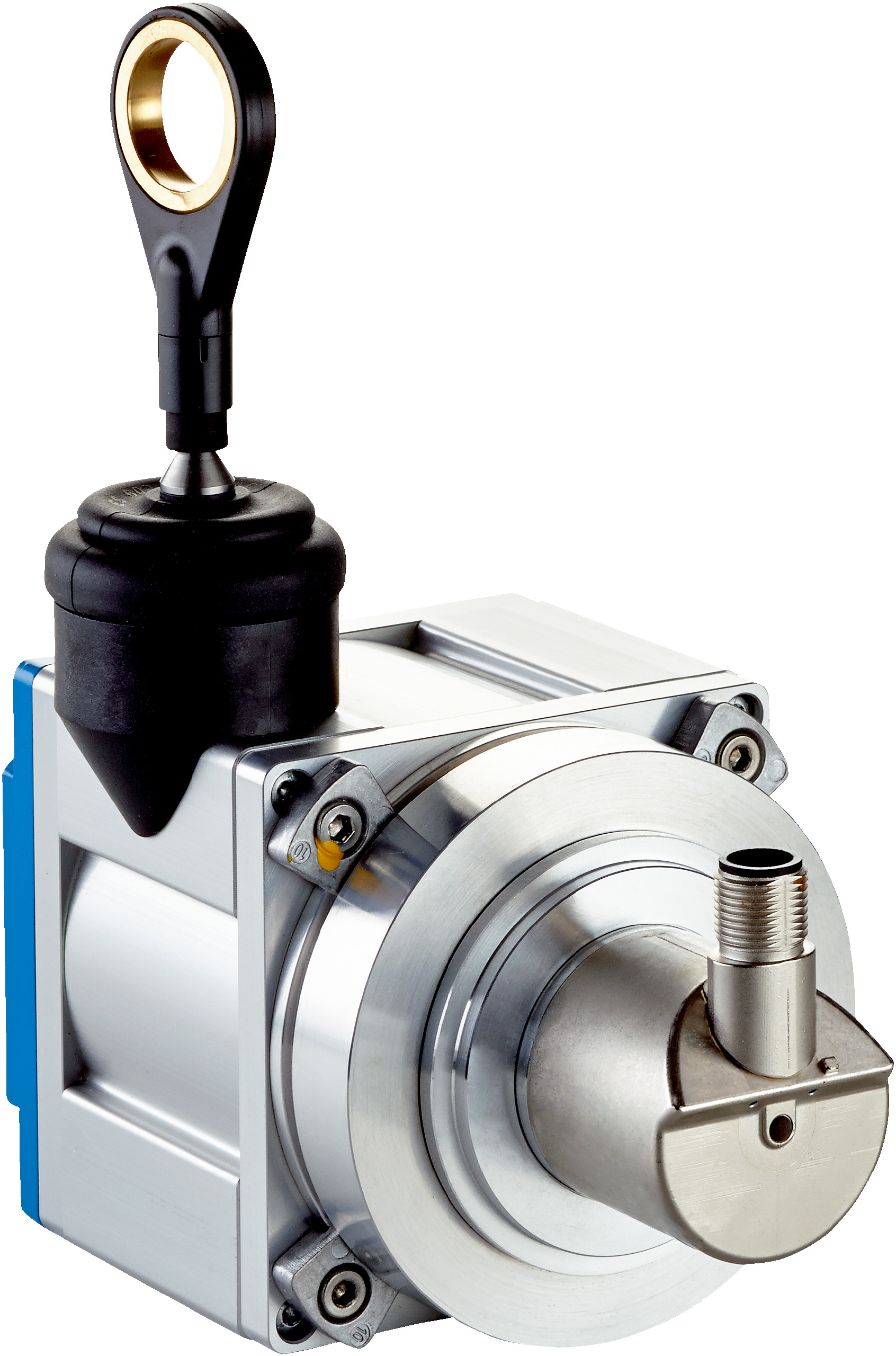

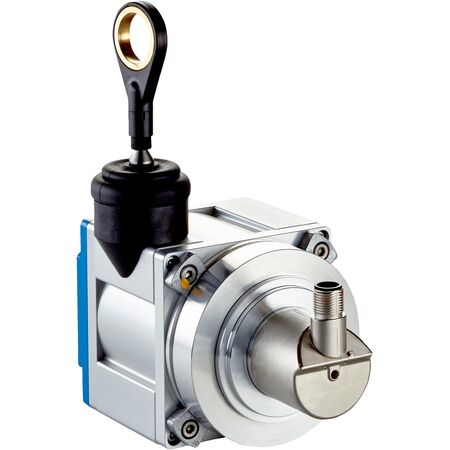

Wire Draw Encoder BTF08-C1QM0282 | 0.01 mm Resolution | 2 m Measurement Range | IP64 to IP67 Enclosure | by SICK
The Wire Draw Encoder BTF08-C1QM0282 offers precise wire length measurement with a high resolution of 0.01 mm and a measurement range of up to 2 meters. Designed for industrial automation and safety-related applications, it features a robust aluminum housing and a CANopen communication interface, ensuring reliable performance in challenging environments with operating temperatures from –30 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.01 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12, 5-pin connector
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life expectancy: Approximately 1,000,000 cycles
- Operating speed: Up to 8 m/s
- Wire acceleration: 40 m/s²
- Operating temperature: –30 °C to +70 °C
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with high resolution of 0.01 mm
- Measurement range up to 2 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum housing with anodized and nickel-plated finish
- CANopen communication interface with programmable configuration
- Operating temperature range from –30 °C to +70 °C
- IP64 to IP67 enclosure ratings depending on component
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with CANopen communication
