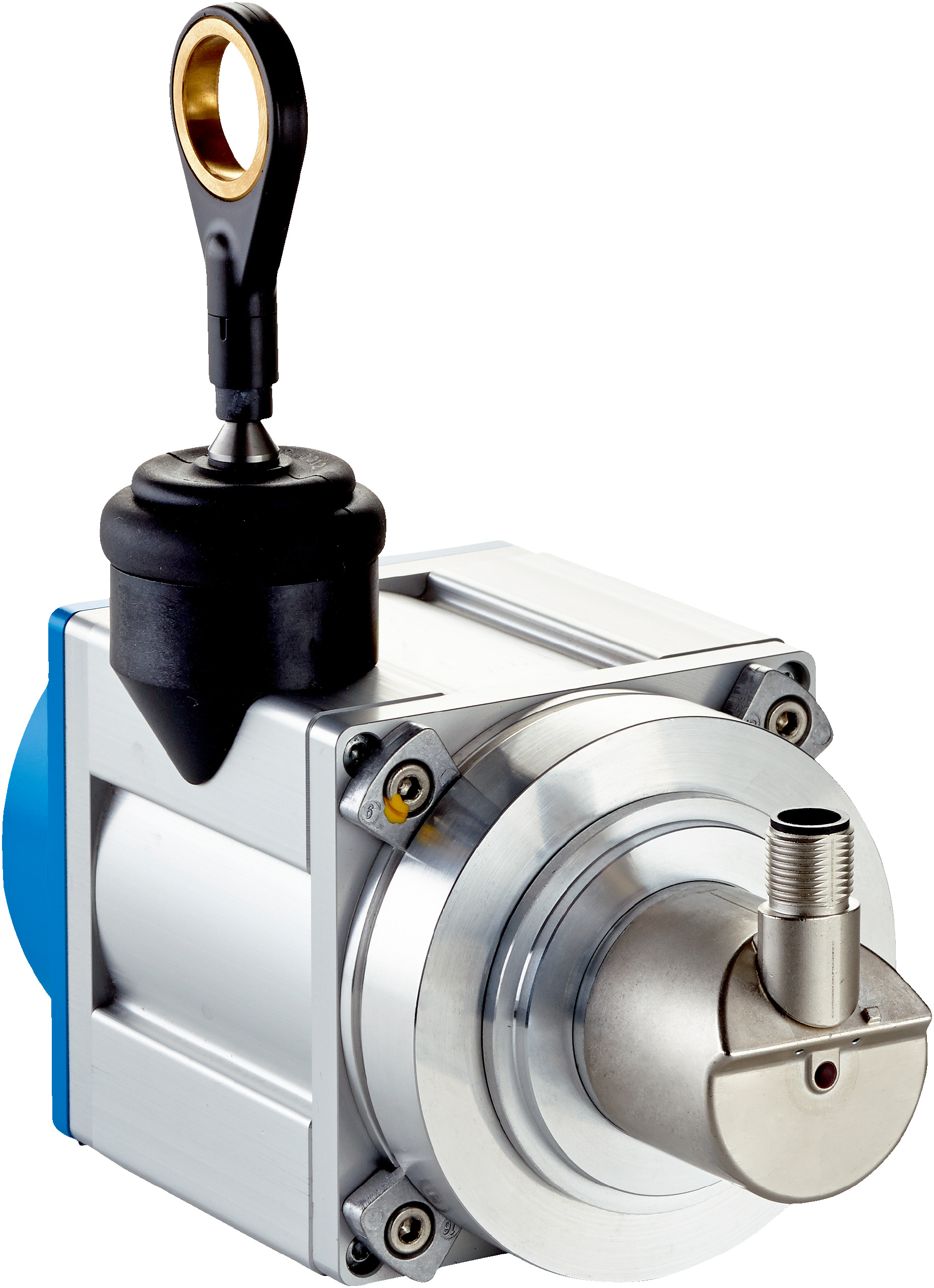

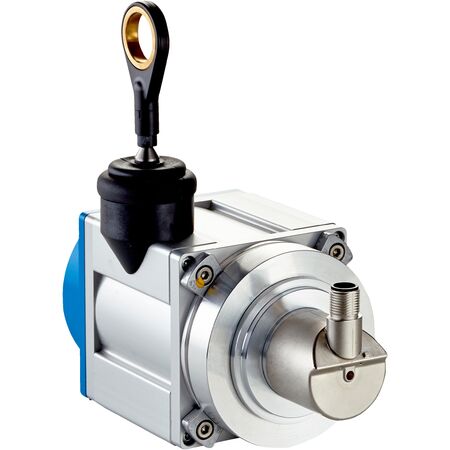

Wire Draw Encoder BTF08-C1QM0382 | 0.02 mm Resolution | 3 m Measurement Range | IP64 to IP67 Rated | by SICK
The Wire Draw Encoder BTF08-C1QM0382 offers precise length measurement with a high resolution of 0.02 mm and a measurement range of up to 3 meters. Designed for industrial automation and safety applications, this encoder features a robust aluminum housing and a highly flexible stainless steel measuring wire, ensuring reliability in harsh environments. With a long life of approximately 1,000,000 cycles, it's perfect for machine control systems requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: CANopen
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Length of wire pulled out per revolution: 200 mm
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: AHM36 CANopen
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Absolute encoder with high resolution of 0.02 mm
- Measurement range up to 3 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 to IP67 rated enclosure for harsh environments
- Programmable and configurable via CANopen interface
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen communication and electrical wiring standards to ensure safety and proper operation.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with CANopen communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-C1QM0382 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
