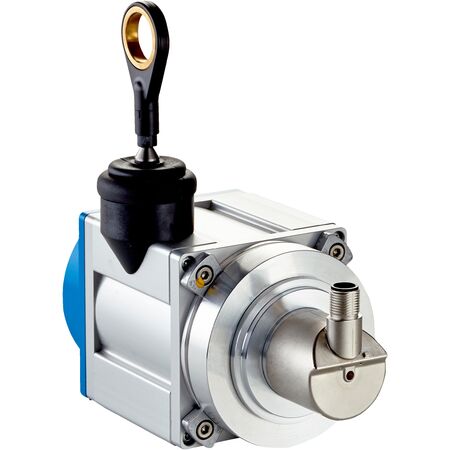

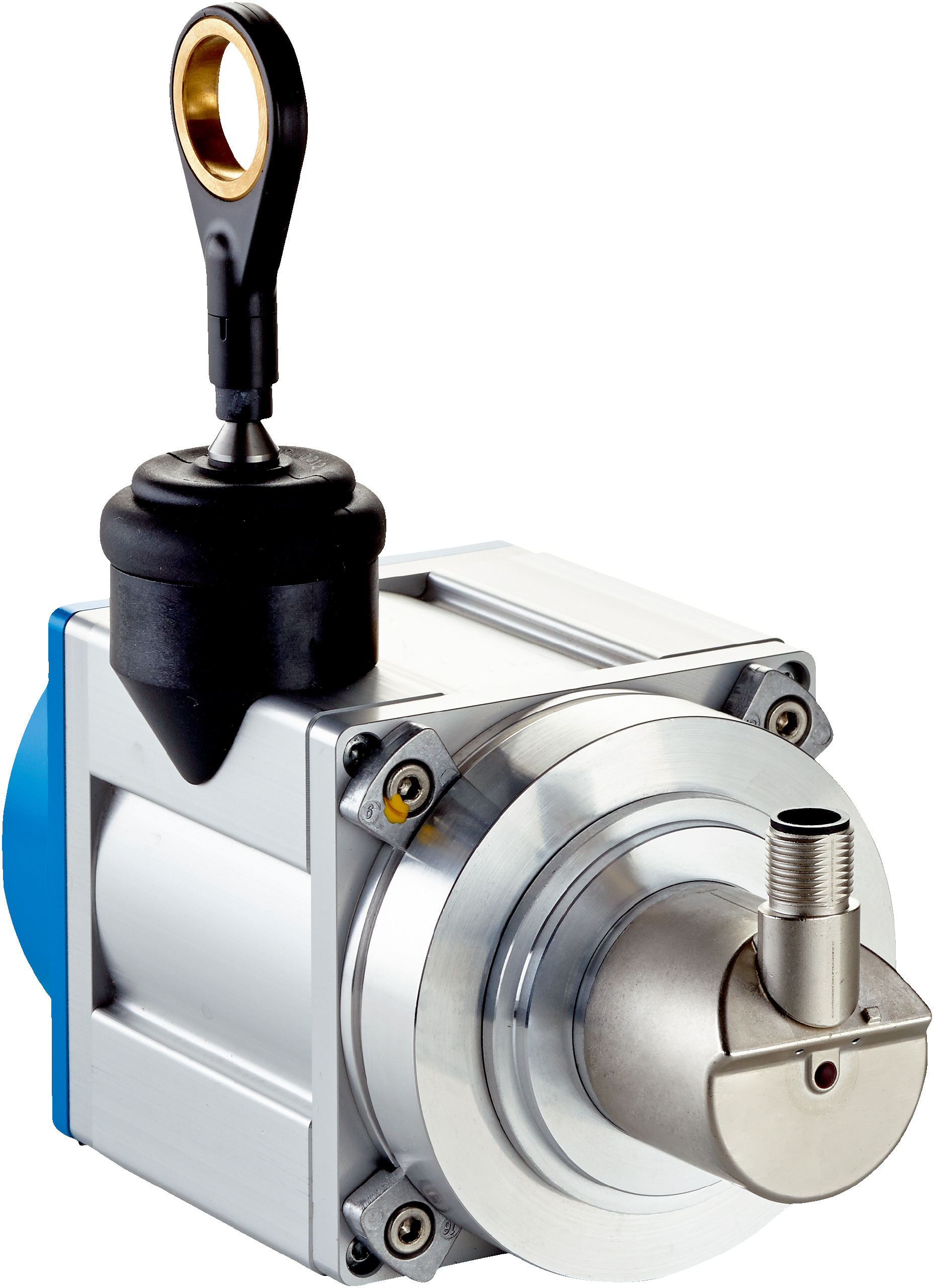

Wire Draw Encoder BTF08-C1QM03S01 | 0 to 3 m Measurement Range | CANopen Interface | IP64 Enclosure | by SICK
The Wire Draw Encoder BTF08-C1QM03S01 offers a measurement range of 0 to 3 m with an impressive 0.04 mm resolution, making it ideal for industrial automation and safety-related applications. With a robust aluminum housing and an IP64 enclosure rating, this encoder ensures high reliability and performance in demanding environments. Designed for precise position measurement, it features a CANopen communication interface and a long life expectancy of approximately 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Life of wire draw mechanism: approx. 1,000,000 cycles
- Operating temperature range: –30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Absolute encoder with CANopen communication interface
- Measurement range of 0 m to 3 m with 0.04 mm resolution
- High repeatability (≤ 1 mm) and linearity (≤ ± 2 mm)
- Robust aluminum housing with anodized and nickel-plated finish
- IP64 enclosure rating, IP66 for mounted mechanic, IP67 for encoder
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
- Low power consumption ≤ 1.5 W
- Highly flexible stranded stainless steel measuring wire
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure compliance with safety standards and optimal device performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine control systems with CANopen communication interface
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
