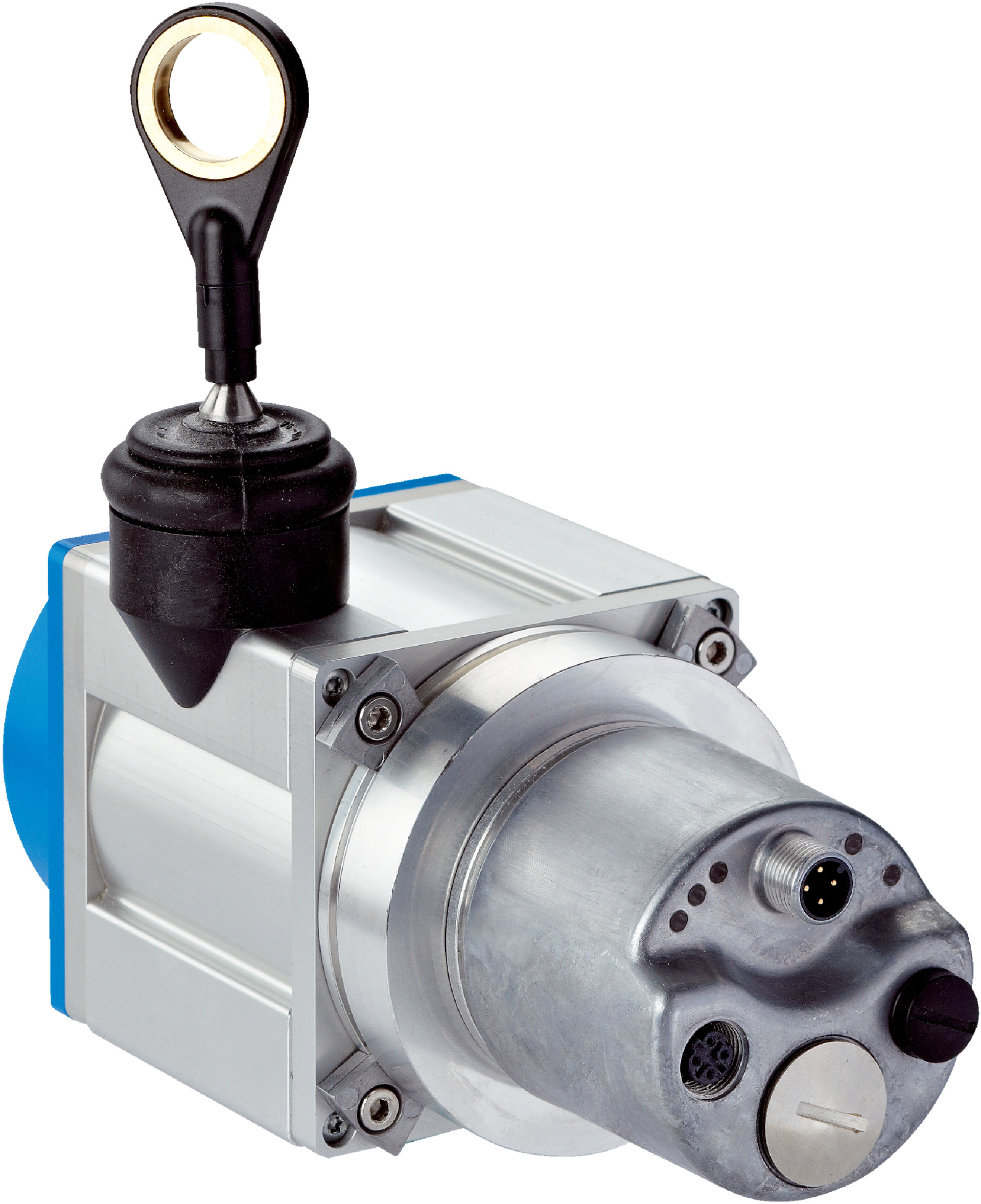

Wire Draw Encoder BTF08-E1BM0399 | 0.001 mm Resolution | EtherCAT Communication | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-E1BM0399 offers exceptional precision with a resolution of 0.001 mm and a measurement range of up to 3 meters. Designed for industrial automation, this encoder features EtherCAT communication for seamless integration and operates within a temperature range of -30 °C to +70 °C. Its robust aluminum housing ensures durability, making it ideal for applications requiring high accuracy and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: EtherCAT
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.7 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 3 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Communication via EtherCAT interface
- Programmable and configurable for flexible integration
- Robust aluminum housing with anodized and nickel-plated finish
- Operating temperature range from –30 °C to +70 °C
- IP64 rated enclosure with IP67 for mounted mechanic
- Spring return force between 6 N and 14 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and industrial safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine tool monitoring and control
- Robotics and factory automation requiring high accuracy
- Safety-related applications with long mean time to dangerous failure
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-E1BM0399 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise position measurement.
