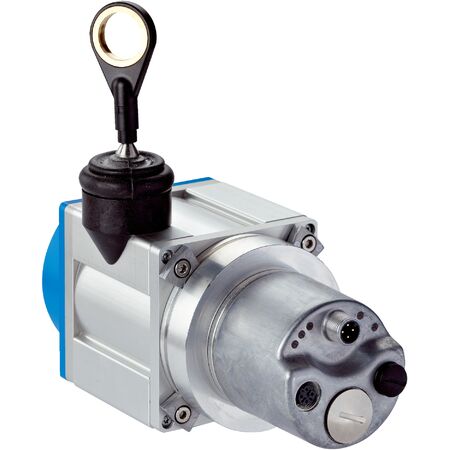

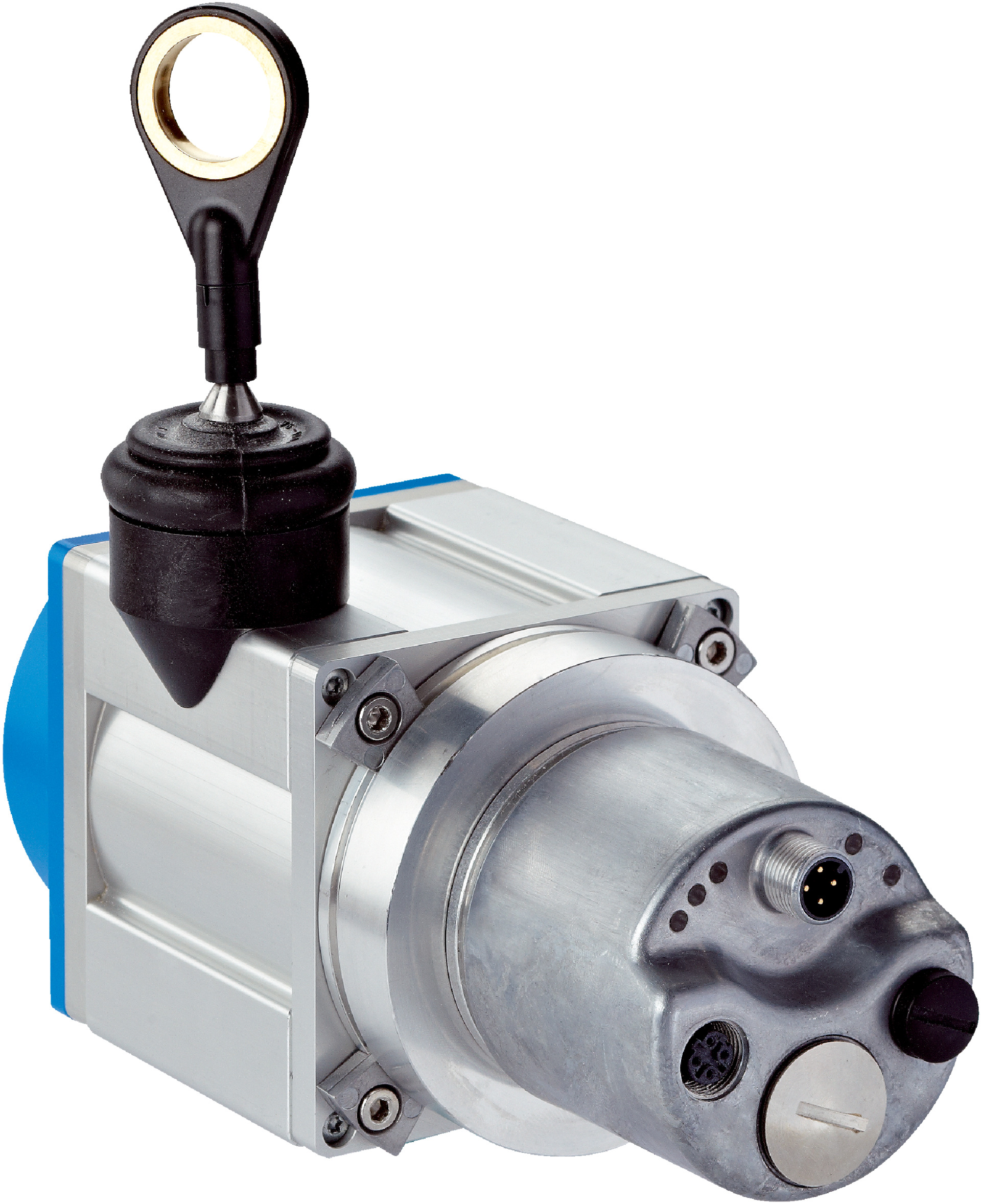

Wire Draw Encoder BTF08-I1BM0399 | 0 to 3 m Measurement Range | 0.001 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-I1BM0399 offers a measurement range of 0 to 3 m with an impressive resolution of 0.001 mm, making it ideal for industrial automation and safety-related monitoring. Designed for precise linear measurement, this encoder features a robust aluminum housing and operates efficiently in temperatures from -30 °C to +70 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: EtherNet/IP
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.7 kg
Key Features
- Measurement range of 0 m to 3 m
- High resolution of 0.001 mm with absolute encoders
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via EtherNet/IP communication interface
- Robust aluminum housing with anodized and nickel-plated finish
- Operating temperature range from –30 °C to +70 °C
- IP64 rated enclosure with IP67 for mounted mechanic
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and safety standards to ensure proper configuration and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related monitoring in machinery
- Position feedback in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-I1BM0399 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise linear measurement.
