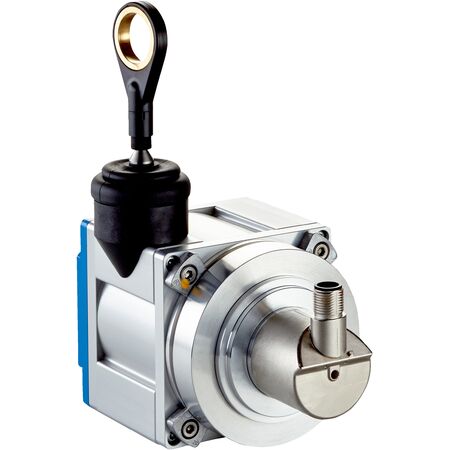

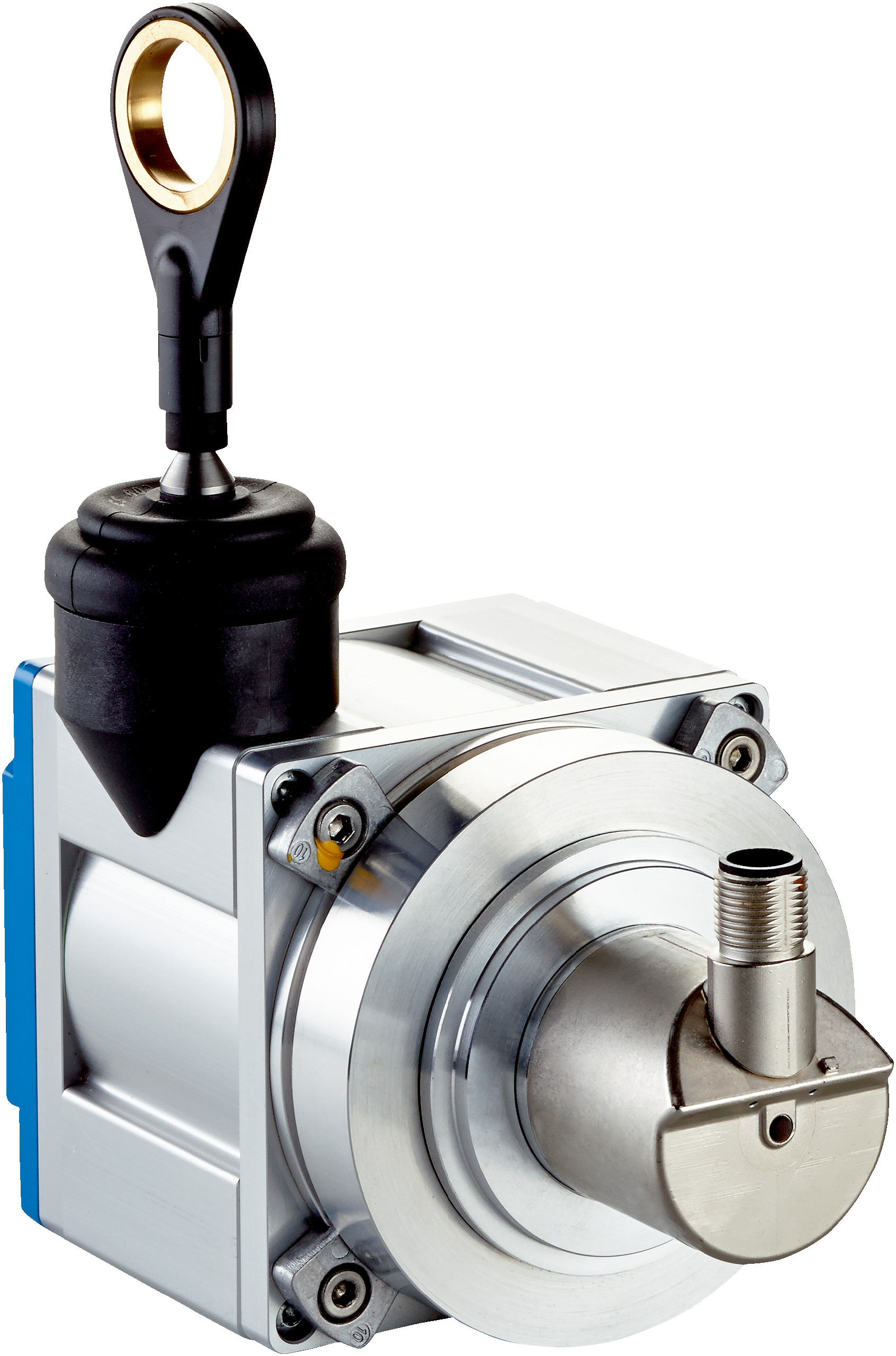

Wire Draw Encoder BTF08-J1QM0264 | 0.01 mm Resolution | 2 m Measurement Range | IP64 to IP67 Enclosure | by SICK
The Wire Draw Encoder BTF08-J1QM0264 offers precise linear position feedback with a high resolution of 0.01 mm and a measurement range of up to 2 meters. Designed for industrial automation, it features robust aluminum housing and a flexible stainless steel measuring wire, making it ideal for safety-related applications requiring accurate displacement monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.01 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SAE J1939
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12, 5-pin universal connector
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Spring return force: 6 N to 14 N
- Life expectancy: Approximately 1,000,000 cycles
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with high resolution of 0.01 mm
- Measurement range up to 2 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum housing with anodized and nickel-plated finish
- Spring return force between 6 N and 14 N
- Operating speed up to 8 m/s
- IP64 to IP67 enclosure ratings depending on component
- Programmable and configurable via SAE J1939 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation and control systems
- Measurement and monitoring of linear displacement
- Safety-related applications requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Low power consumption of ≤ 1.5 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-J1QM0264 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
