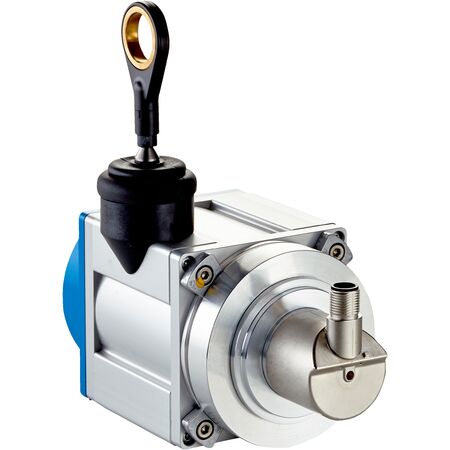

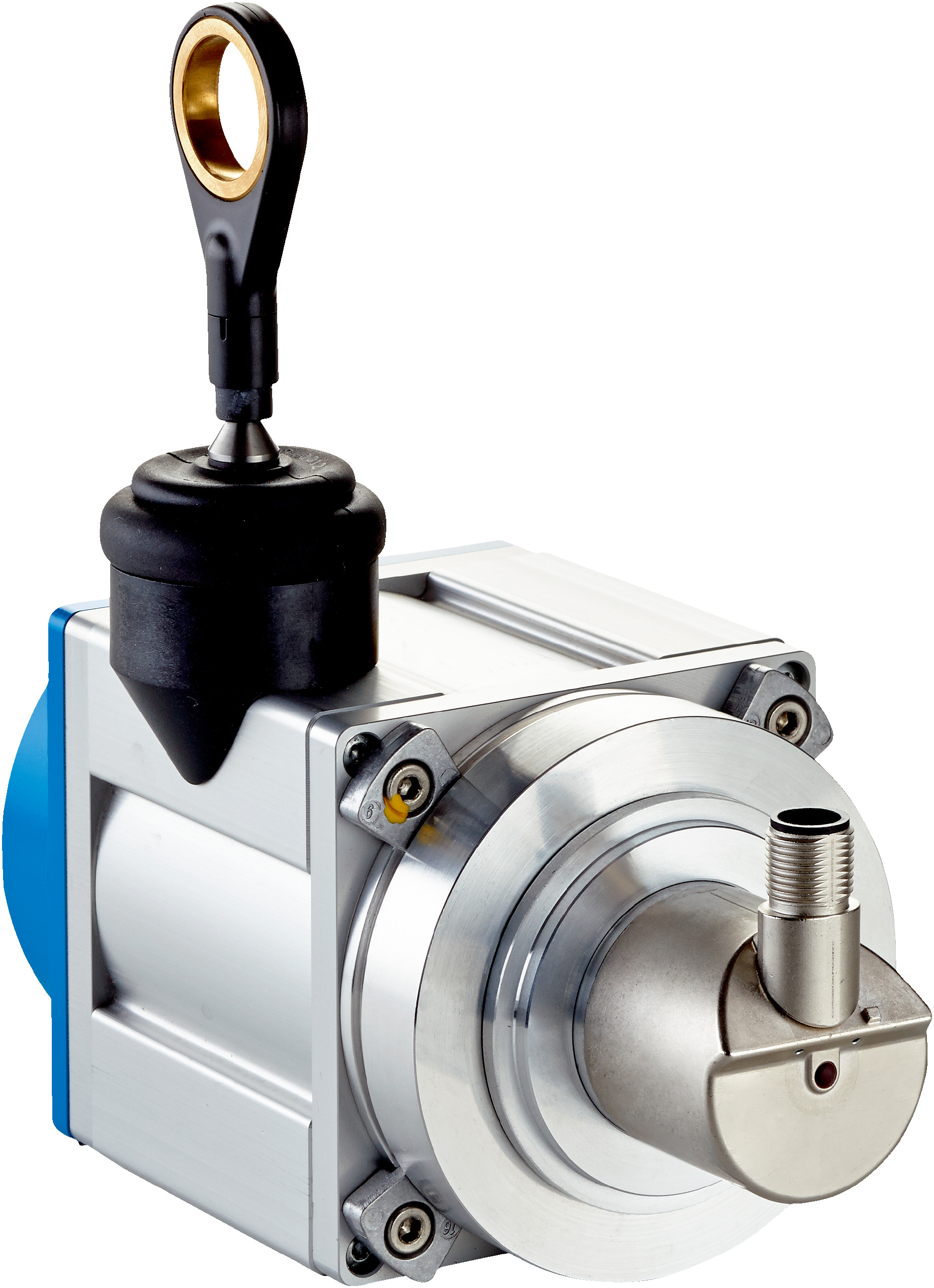

Wire Draw Encoder BTF08-J1QM0364 | 0 m to 3 m Measurement Range | 0.02 mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF08-J1QM0364 offers a measurement range of 0 m to 3 m with an impressive resolution of 0.02 mm, making it ideal for industrial automation and safety monitoring. Designed for precise length measurement in manufacturing processes, this encoder features a highly flexible stainless steel measuring wire and robust aluminum housing, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 270 years (EN ISO 13849-1)
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Length of wire pulled out per revolution: 200 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Measurement range of 0 m to 3 m
- Absolute encoder with resolution of 0.02 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 6 N and 14 N
- Operating speed up to 8 m/s
- Robust aluminum housing with IP64 to IP67 protection ratings
- Communication interface SAE J1939
- Programmable and configurable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and safety monitoring
- Position and length measurement in manufacturing processes
- Machine control requiring precise wire draw measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-J1QM0364 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
