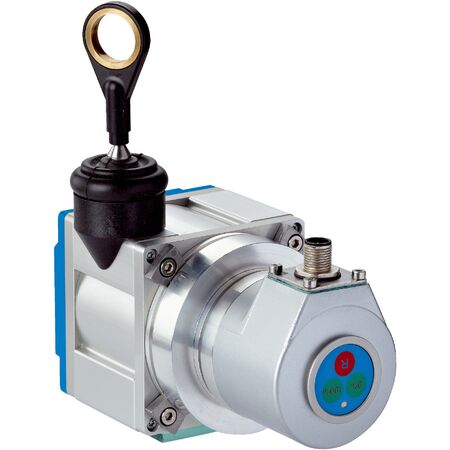

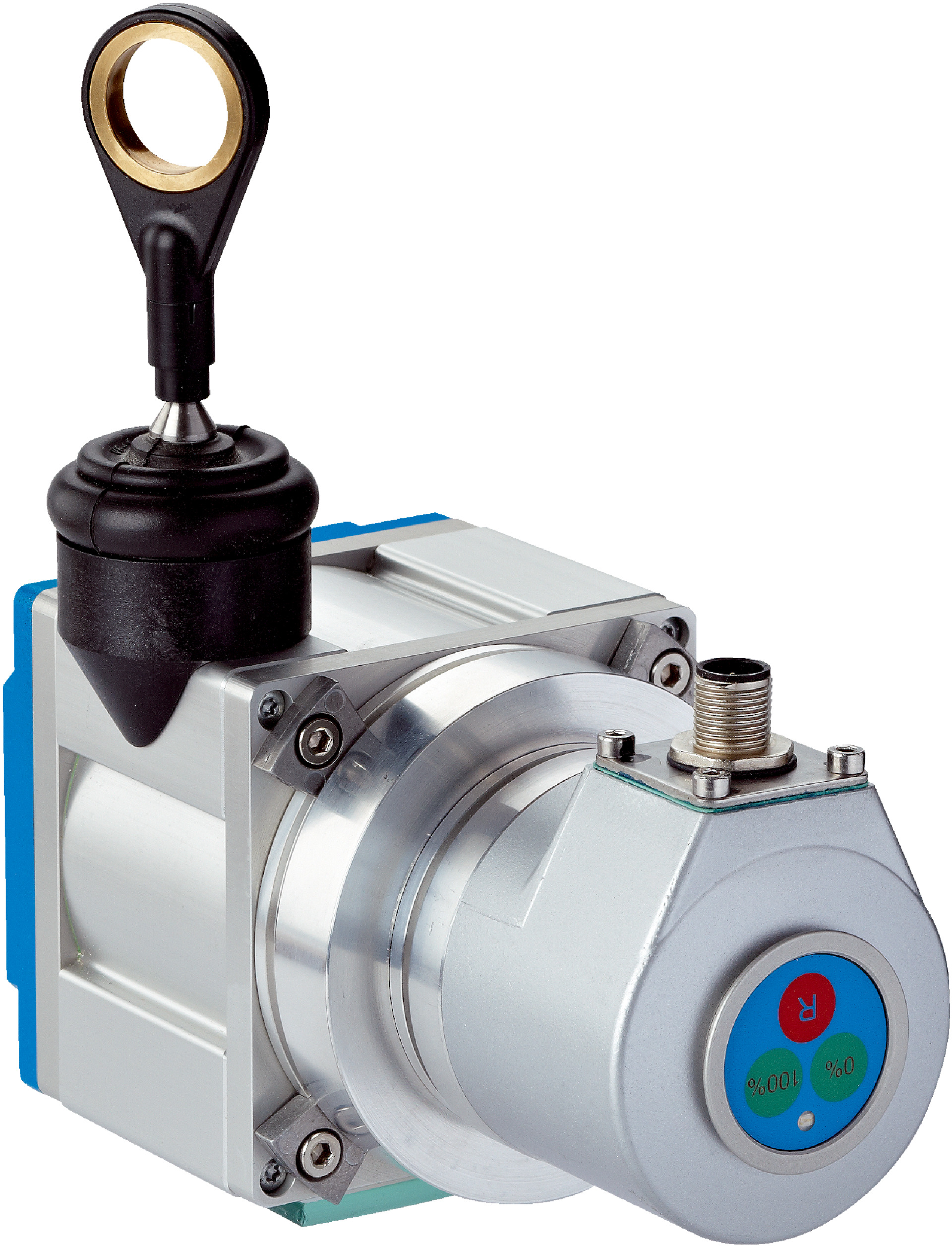

Wire Draw Encoder BTF08-K1EM02PP | 0.02 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-K1EM02PP offers a measurement range of 0 m to 2 m with an impressive 0.02 mm resolution, making it ideal for industrial automation and safety-related applications. Designed for precise position measurement, this absolute encoder features a robust aluminum housing and a highly flexible stainless steel measuring wire, ensuring reliability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 600 years (EN ISO 13849-1)
- Measurement range: 0 m to 2 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Analog / Current / 4...20 mA
- Connection type: Male connector, M12, 5-pin, radial
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Wire draw length: 2.2 m
- Operating speed: 8 m/s
- EMC: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature: –30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.7 kg
Key Features
- Measurement range of 0 m to 2 m
- Absolute encoder with 0.02 mm resolution
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable/configurable communication interface
- Analog current output 4...20 mA
- Robust aluminum housing with anodized and nickel-plated finish
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 6 N and 14 N
- Long wire draw length of 2.2 m with 1,000,000 cycle life
- Operating temperature range from –30 °C to +70 °C
- IP64 enclosure rating, IP67 for mounted mechanic
- EMC compliant to EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF08-K1EM02PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
