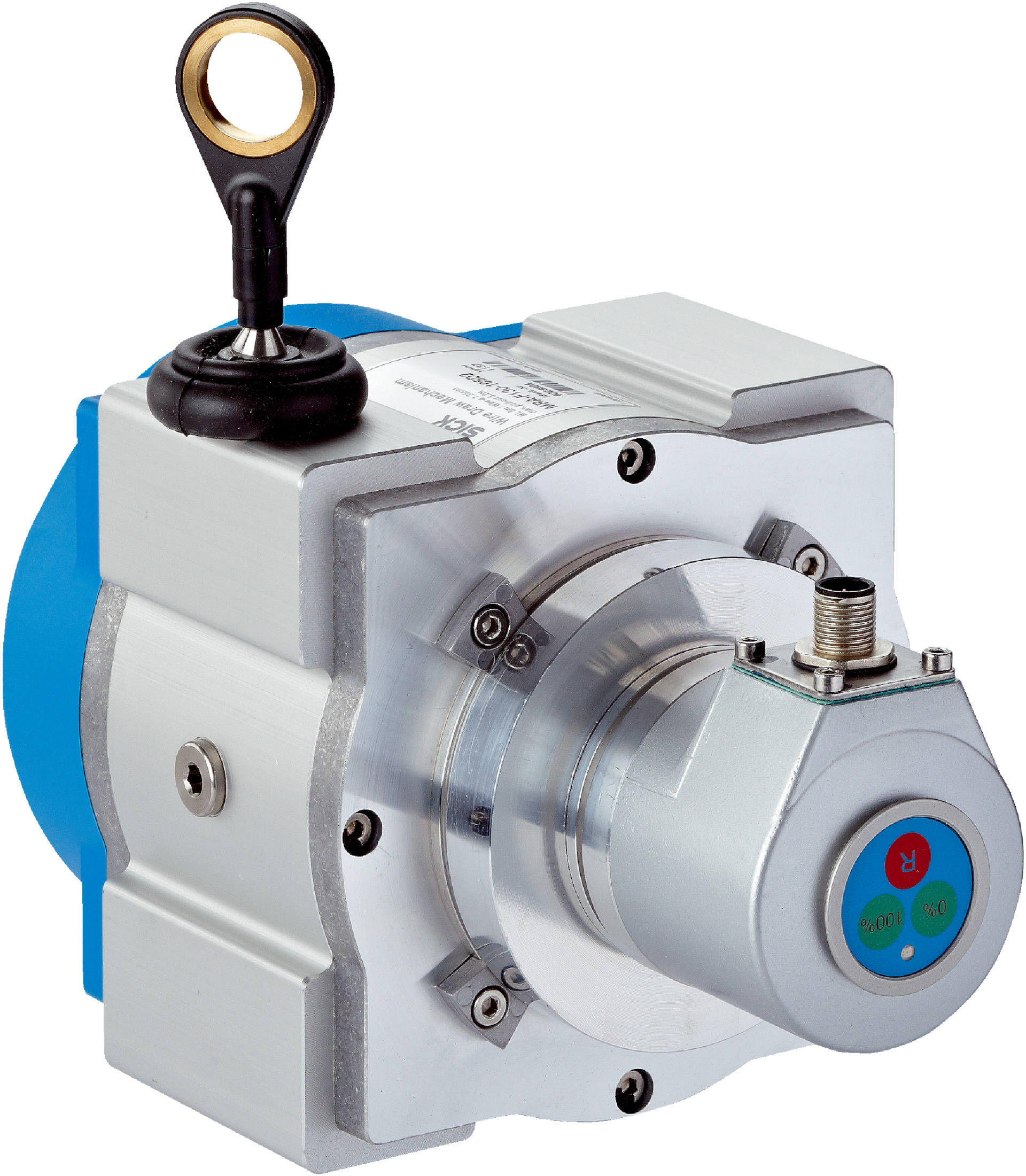

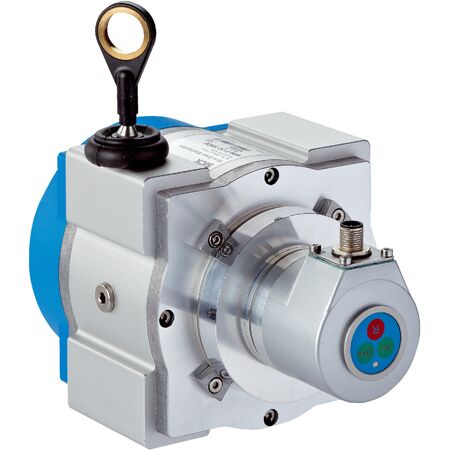

Wire Draw Encoder BTF08-L1EM03PP | 0 to 3 m Measurement Range | 0.04 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-L1EM03PP offers a measurement range of 0 to 3 m with an impressive resolution of 0.04 mm, making it ideal for precise linear measurement in industrial automation. Designed for reliable position feedback in machinery, this absolute encoder features a robust aluminum housing and a highly flexible stainless steel measuring wire, ensuring durability and long life with typically 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Analog / Voltage / 0...10 V
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder model: ACM60, ACM60B-S1LE13X06
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.9 kg
Key Features
- Measurement range of 0 m to 3 m
- Absolute encoder with high resolution of 0.04 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable communication interface (Analog / Voltage / 0...10 V)
- Robust aluminum housing with anodized and nickel-plated finish
- Highly flexible stranded stainless steel measuring wire
- Spring return force between 6 N and 14 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from –30 °C to +70 °C
- IP64 enclosure rating, IP67 for mounted mechanic and encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise linear measurement
- Position feedback in machinery and equipment
- Safety-related applications requiring reliable measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF08-L1EM03PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
