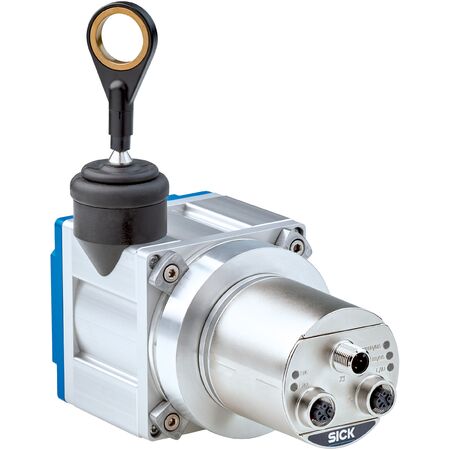

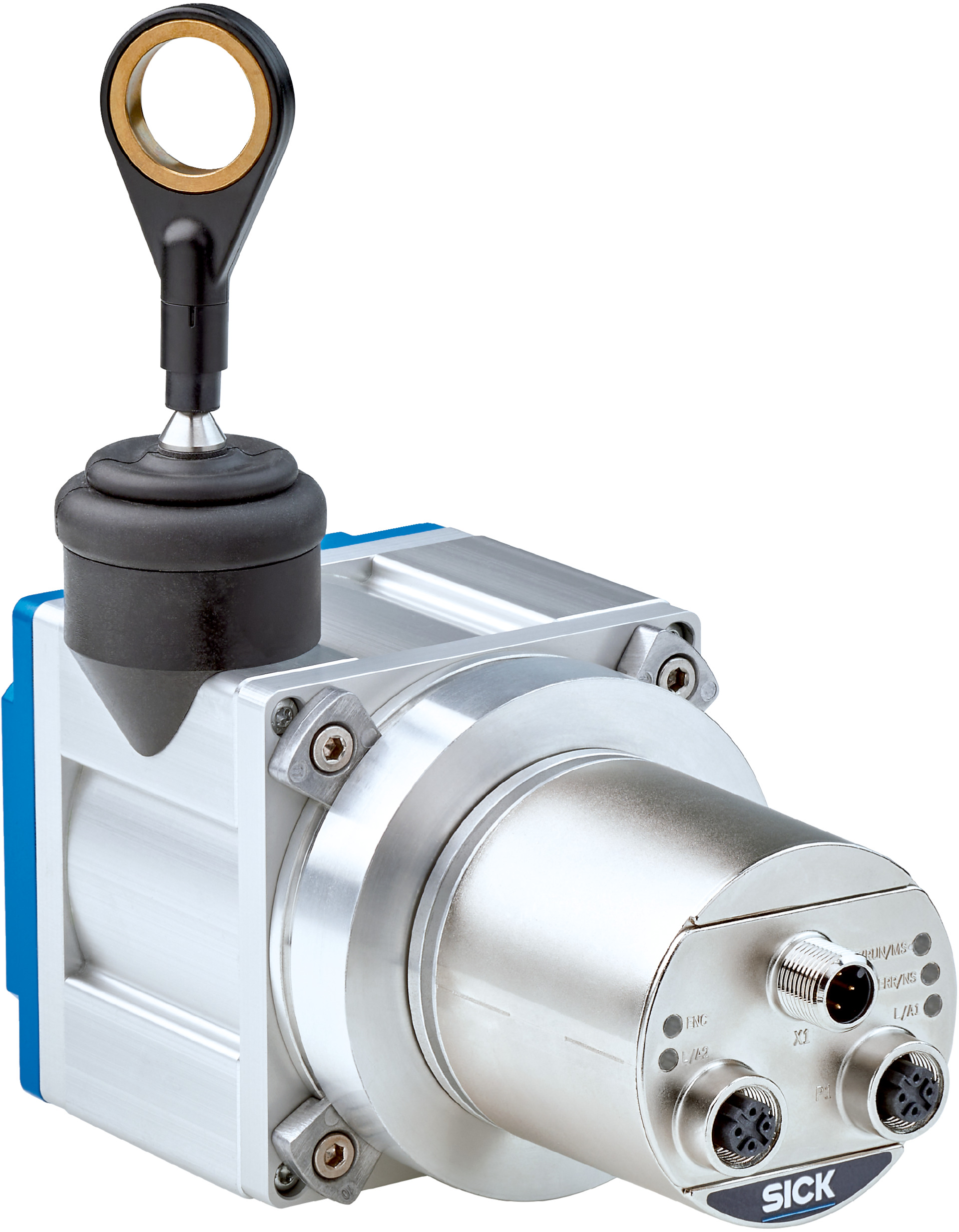

Wire Draw Encoder BTF08-N1BM0277 | 0.0008 mm Resolution | PROFINET Communication | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-N1BM0277 offers precise position measurement with a high resolution of 0.0008 mm and a measurement range of up to 2 meters. Designed for industrial automation, this encoder features a robust aluminum housing and is programmable via PROFINET communication, making it ideal for machine monitoring and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.0008 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFINET
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Enclosure rating: IP64 (mechanic IP65)
- Operating temperature: -30 °C to +70 °C
- MTTFD: 165 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.8 kg
Key Features
- Absolute encoder with high resolution of 0.0008 mm
- Measurement range up to 2 meters
- Programmable and configurable via PROFINET communication interface
- Robust aluminum housing with anodized and nickel-plated finish
- High flexibility measuring wire made of stainless steel
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
- IP64/IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET network configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine monitoring and control systems
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤3 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
