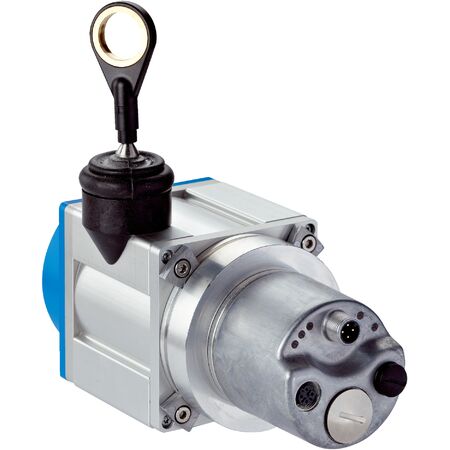

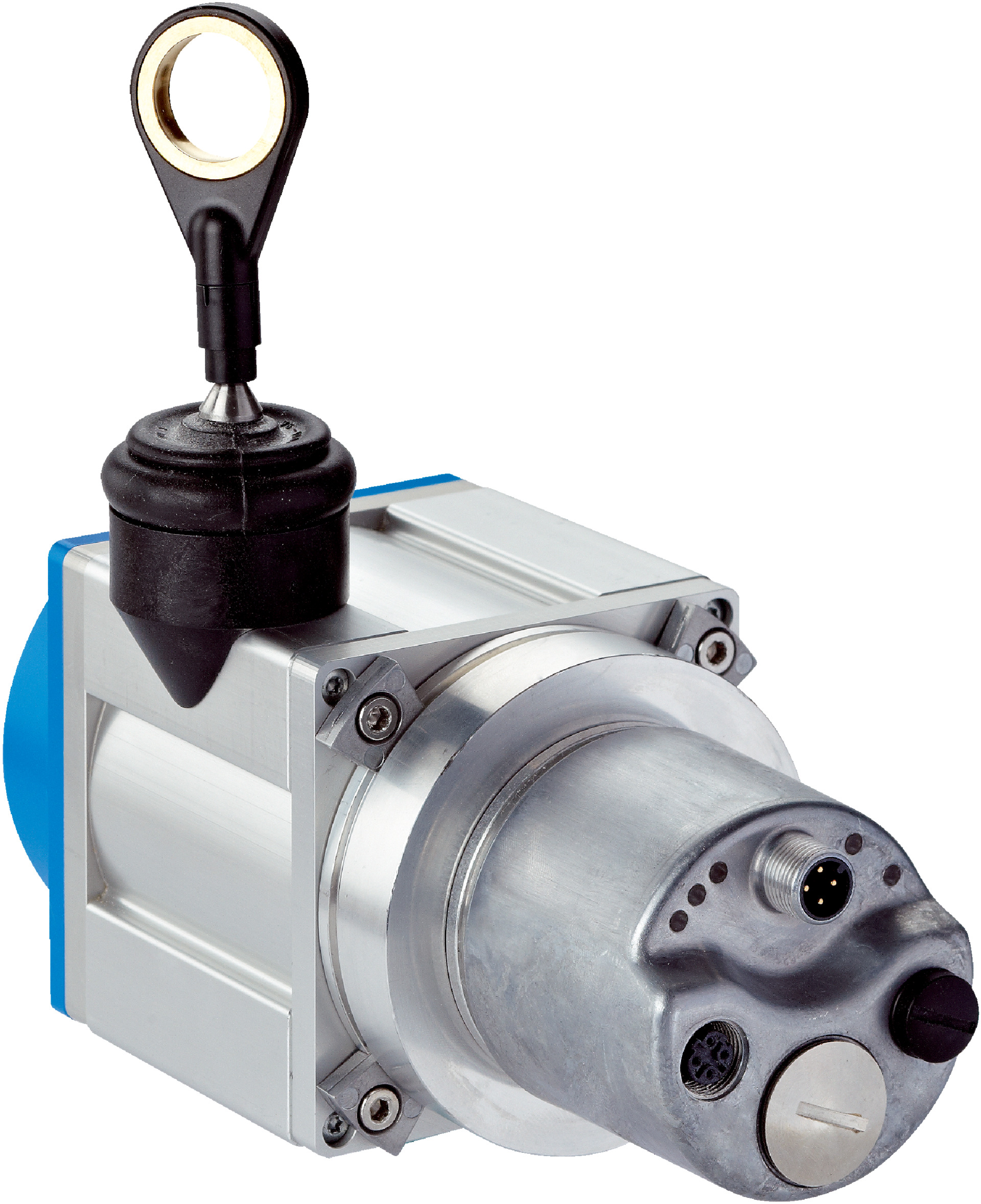

Wire Draw Encoder BTF08-N1BM0399 | 0.001 mm Resolution | 3m Measurement Range | PROFINET Communication | by SICK
The Wire Draw Encoder BTF08-N1BM0399 offers precise position measurement with a high resolution of 0.001 mm and a measurement range of up to 3 meters. Designed for industrial automation, it features robust aluminum housing with IP64/IP67 protection ratings, making it ideal for machine safety and monitoring systems. With a long life of approximately 1,000,000 cycles, this encoder ensures reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Weight: 1.7 kg
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.7 kg
Key Features
- Absolute encoder with high resolution of 0.001 mm
- Measurement range up to 3 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFINET communication interface
- Robust aluminum housing with IP64/IP67 protection ratings
- Operating temperature range from –30 °C to +70 °C
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and PROFINET communication standards.
Applications
- Industrial automation for precise position measurement
- Machine safety and monitoring systems
- Process control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF08-N1BM0399 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
