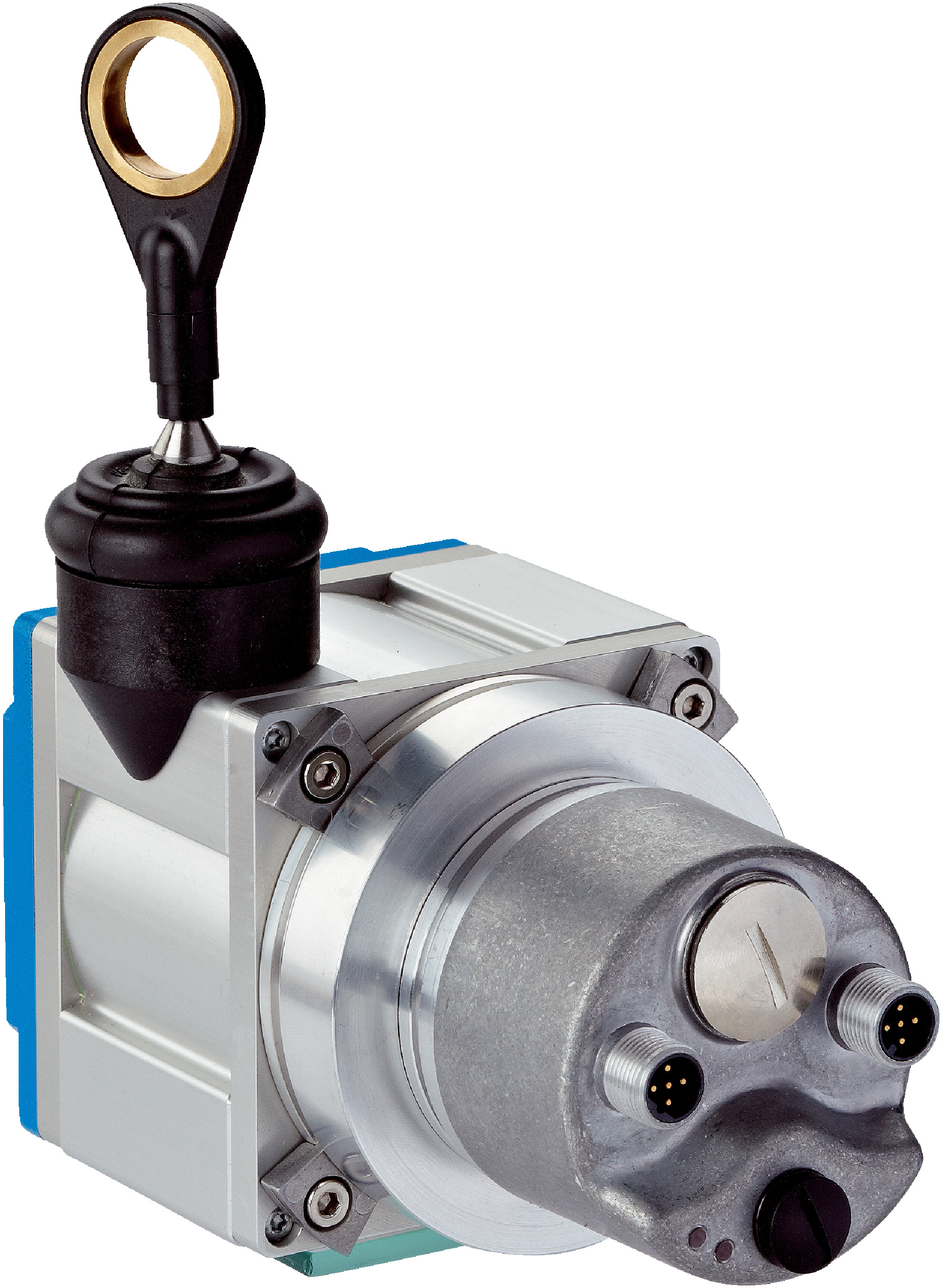

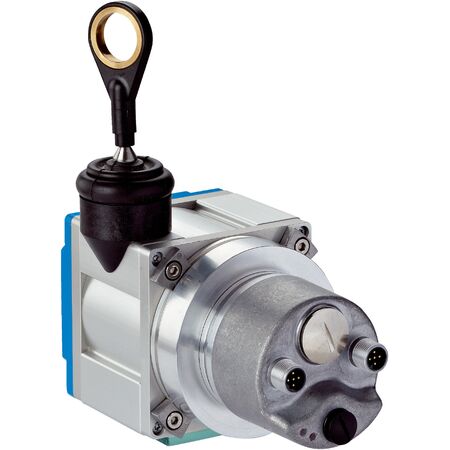

Wire Draw Encoder BTF08-P1BM0241 | 0.02 mm Resolution | PROFIBUS Communication | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-P1BM0241 offers precise position measurement with a high resolution of 0.02 mm and a measurement range of up to 2 meters. Ideal for industrial automation and safety applications, this robust sensor features PROFIBUS DP communication for easy configuration and a durable aluminum housing. With an IP64 enclosure rating, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFIBUS DP
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Weight: 1.58 kg
- Measuring wire: Highly flexible stranded stainless steel (1.35 mm diameter)
- Spring return force: 6 N to 14 N
- Wire draw length: 2.2 m
- Operating temperature: -10 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 1.58 kg
Key Features
- Absolute encoder with high resolution of 0.02 mm
- Measurement range up to 2 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP communication interface
- Robust aluminum housing with anodized and nickel-plated finishes
- High operating speed up to 8 m/s and wire acceleration up to 40 m/s²
- IP64 enclosure rating with IP67 for mounted mechanic
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and PROFIBUS DP networks is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Machine safety and control systems
- Process monitoring requiring absolute encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
