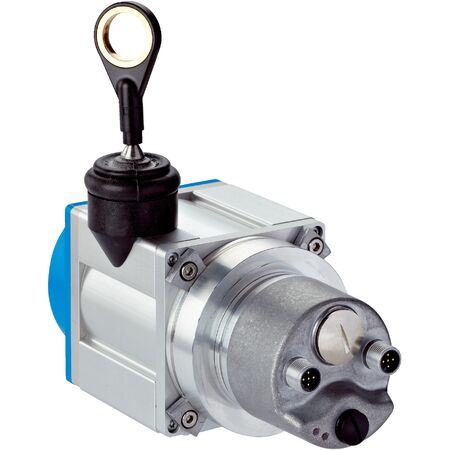

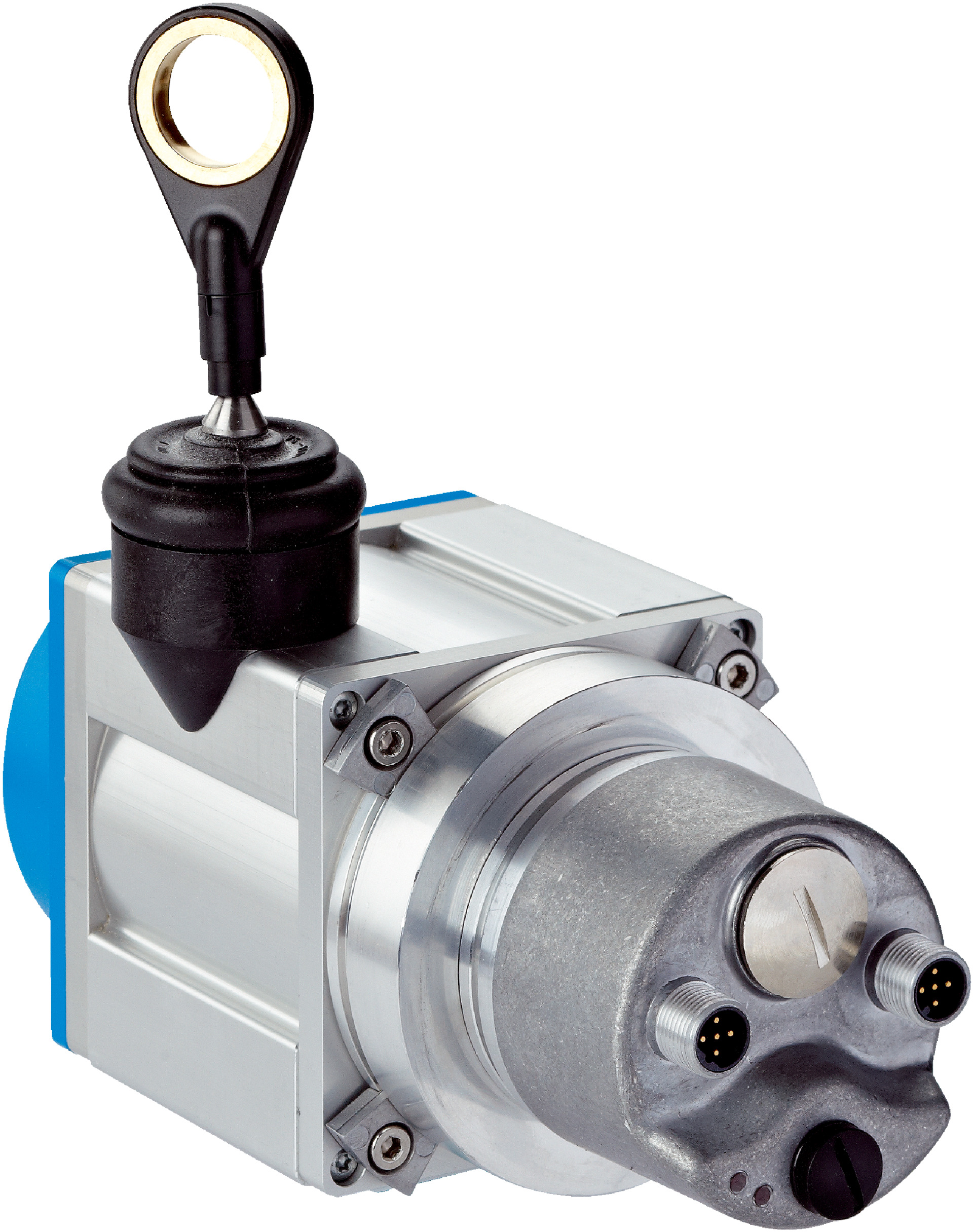

Wire Draw Encoder BTF08-P1BM0341 | 0.02 mm Resolution | 3m Measurement Range | PROFIBUS DP | by SICK
The Wire Draw Encoder BTF08-P1BM0341 offers precise position measurement with a high resolution of 0.02 mm and a measurement range of up to 3 meters. Ideal for industrial automation and safety-related applications, this encoder features a robust aluminum housing and a highly flexible stainless steel measuring wire, ensuring reliability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Encoder type: Absolute encoders
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: PROFIBUS DP
- Programmable/configurable: Yes
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel 1.4401 V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Mounted encoder model: A3M60, A3M60B-S1PB013X13
- Operating temperature range: -10 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.78 kg
Key Features
- Absolute encoder with high resolution of 0.02 mm
- Measurement range up to 3 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via PROFIBUS DP communication interface
- Robust aluminum housing with anodized and nickel-plated finish
- High flexibility stainless steel measuring wire
- Spring return force between 6 N and 14 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- Operating temperature range from -10 °C to +70 °C
- IP64 enclosure rating, IP67 for mounted mechanic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and safety-related equipment to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-P1BM0341 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
