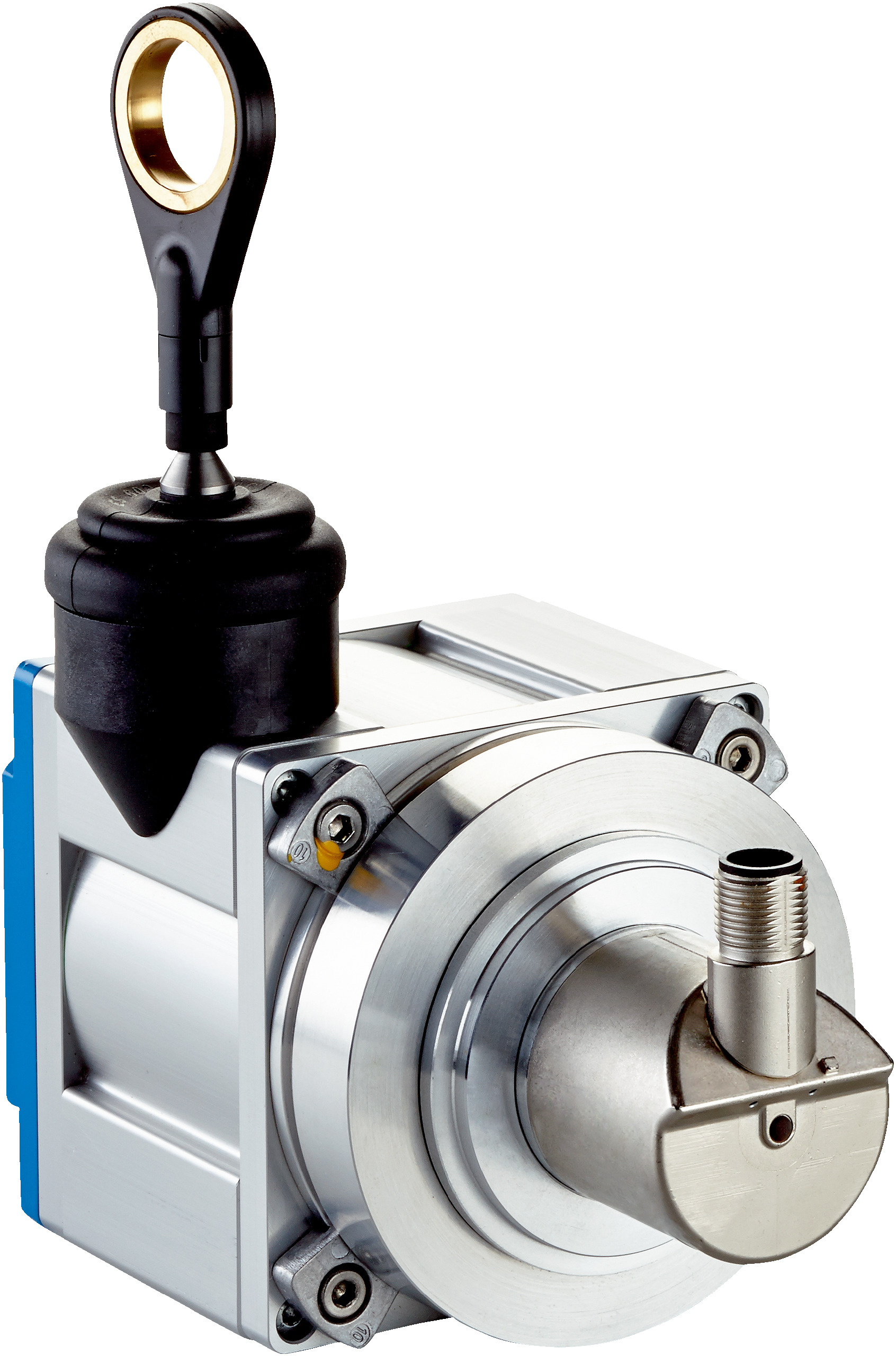

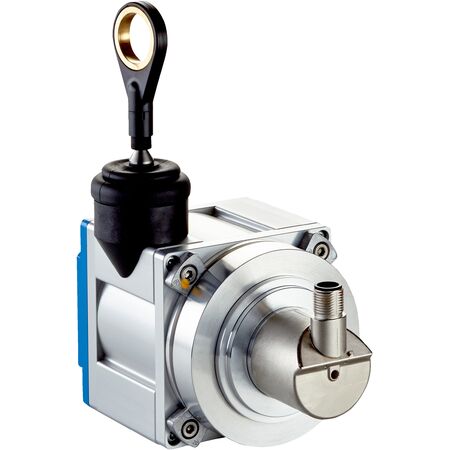

Wire Draw Encoder BTF08-Q1RM0262 | IO-Link V1.1 | 0.01 mm Resolution | IP64 to IP67 Rated | by SICK
The Wire Draw Encoder BTF08-Q1RM0262 is designed for precise wire length measurement in industrial automation. With a high resolution of 0.01 mm and repeatability of ≤ 1 mm, it ensures reliable position feedback for safety-related applications. Its robust aluminum housing and IP64 to IP67 rating provide excellent protection against dust and water, making it ideal for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Resolution: 0.01 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -20 °C to +70 °C
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High resolution of 0.01 mm with repeatability ≤ 1 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Measuring wire made of highly flexible stainless steel (V4A)
- Operating temperature range from -20 °C to +70 °C
- IP64 to IP67 rated enclosure for protection against dust and water
- Spring return force between 6 N and 14 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-Q1RM0262 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
