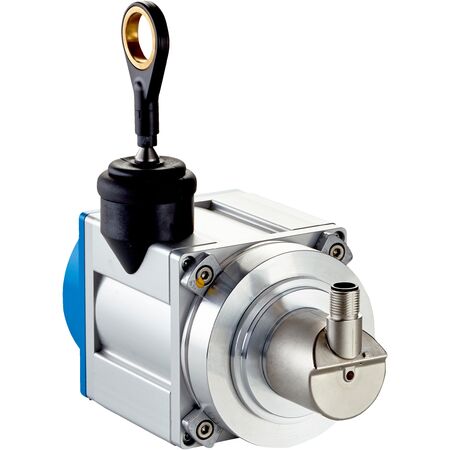

Wire Draw Encoder BTF08-Q1RM0361 | IO-Link V1.1 | 0.05 mm Resolution | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-Q1RM0361 is designed for precise wire length measurement in industrial automation. With a high measurement resolution of 0.05 mm and an IO-Link V1.1 communication interface, it ensures reliable position feedback for machine monitoring and control systems. Built for durability with an IP64 rated enclosure, this encoder operates efficiently in temperatures ranging from -20 °C to +70 °C, making it ideal for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.05 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder model: AHM36 IO-Link Basic
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP64 (mechanic IP65)
- Operating temperature range: -20 °C to +70 °C
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement resolution of 0.05 mm
- Robust aluminum housing with anodized and nickel-plated finish
- Long wire draw length of 3.2 meters with spring return force between 6 N and 14 N
- Operating temperature range from -20 °C to +70 °C
- IP64 rated enclosure with IP65 rating for mounted mechanic
- Low power consumption of ≤ 1.5 W
- High reliability with mean time to dangerous failure (MTTFD) of 240 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-Q1RM0361 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
