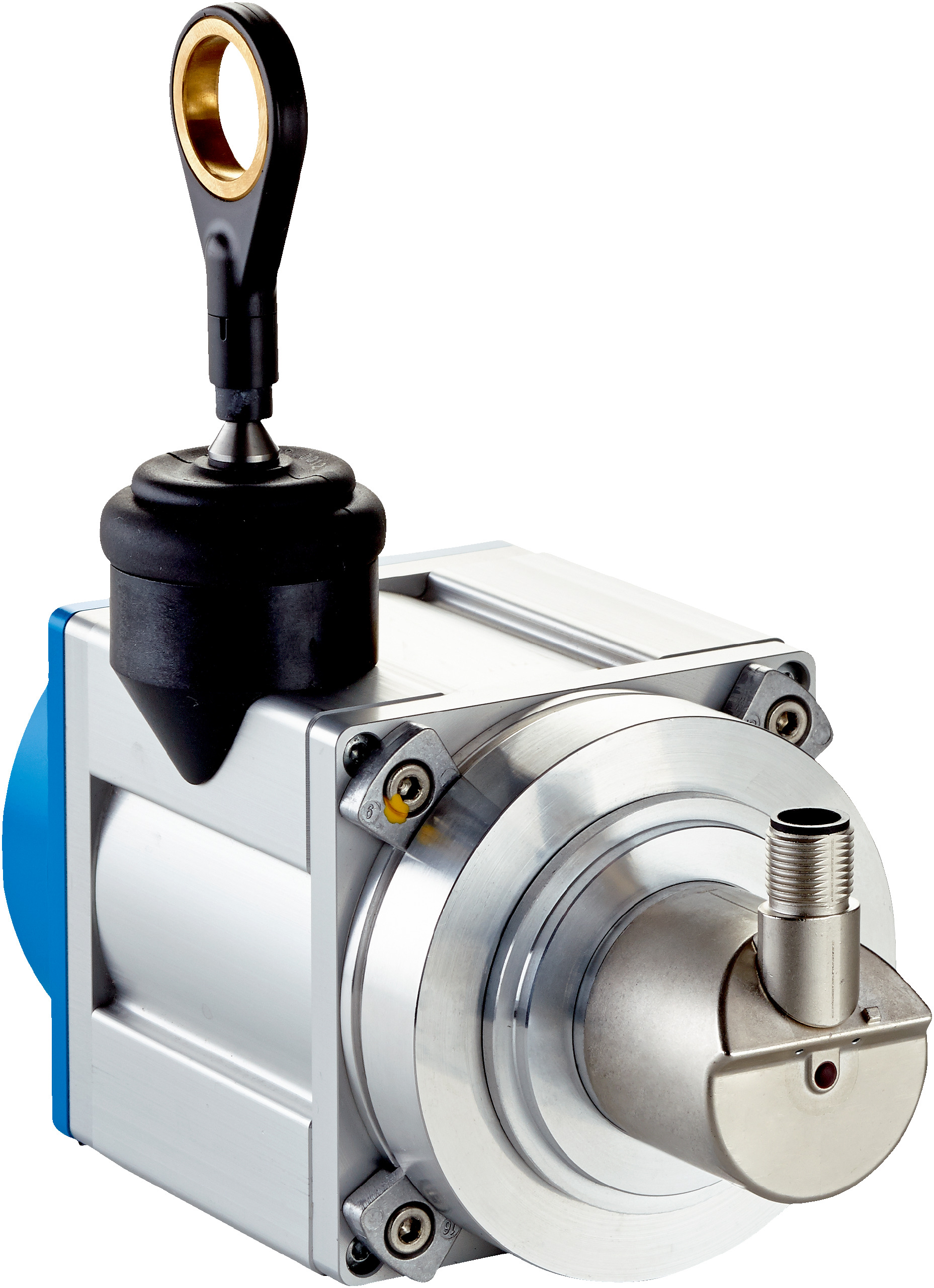

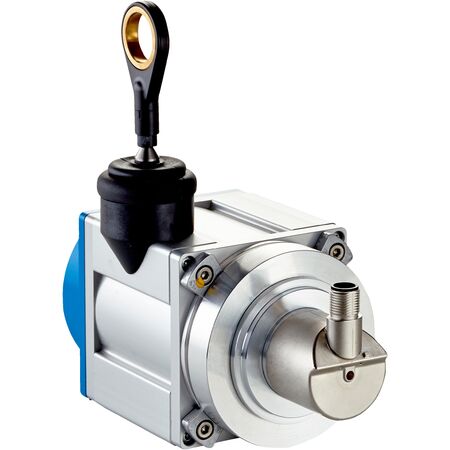

Wire Draw Encoder BTF08-Q1RM0362 | 0.01 mm Resolution | 3 m Measurement Range | IP64 Rated | by SICK
The Wire Draw Encoder BTF08-Q1RM0362 offers precise position measurement with a high resolution of 0.01 mm and a measurement range of up to 3 meters. Ideal for industrial automation and safety-related applications, this encoder features robust aluminum housing and a long life wire draw mechanism, ensuring reliability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.01 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –20 °C to +70 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 1.62 kg
Key Features
- Absolute encoder with high resolution of 0.01 mm
- Measurement range up to 3 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable via IO-Link V1.1 interface
- Robust aluminum housing with anodized and nickel-plated finish
- High operating speed up to 8 m/s and wire acceleration up to 40 m/s²
- Spring return force between 6 N and 14 N
- Long life wire draw mechanism with typically 1,000,000 cycles
- IP64 enclosure rating, IP66 for mounted mechanic, and IP67 for encoder
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial safety standards to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw encoders
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF08-Q1RM0362 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
