Wire Draw Encoder BTF08-Q1RM0S01 | Absolute Encoder with IO-Link | 0.01 mm Resolution | IP64 to IP67 Protection | by SICK

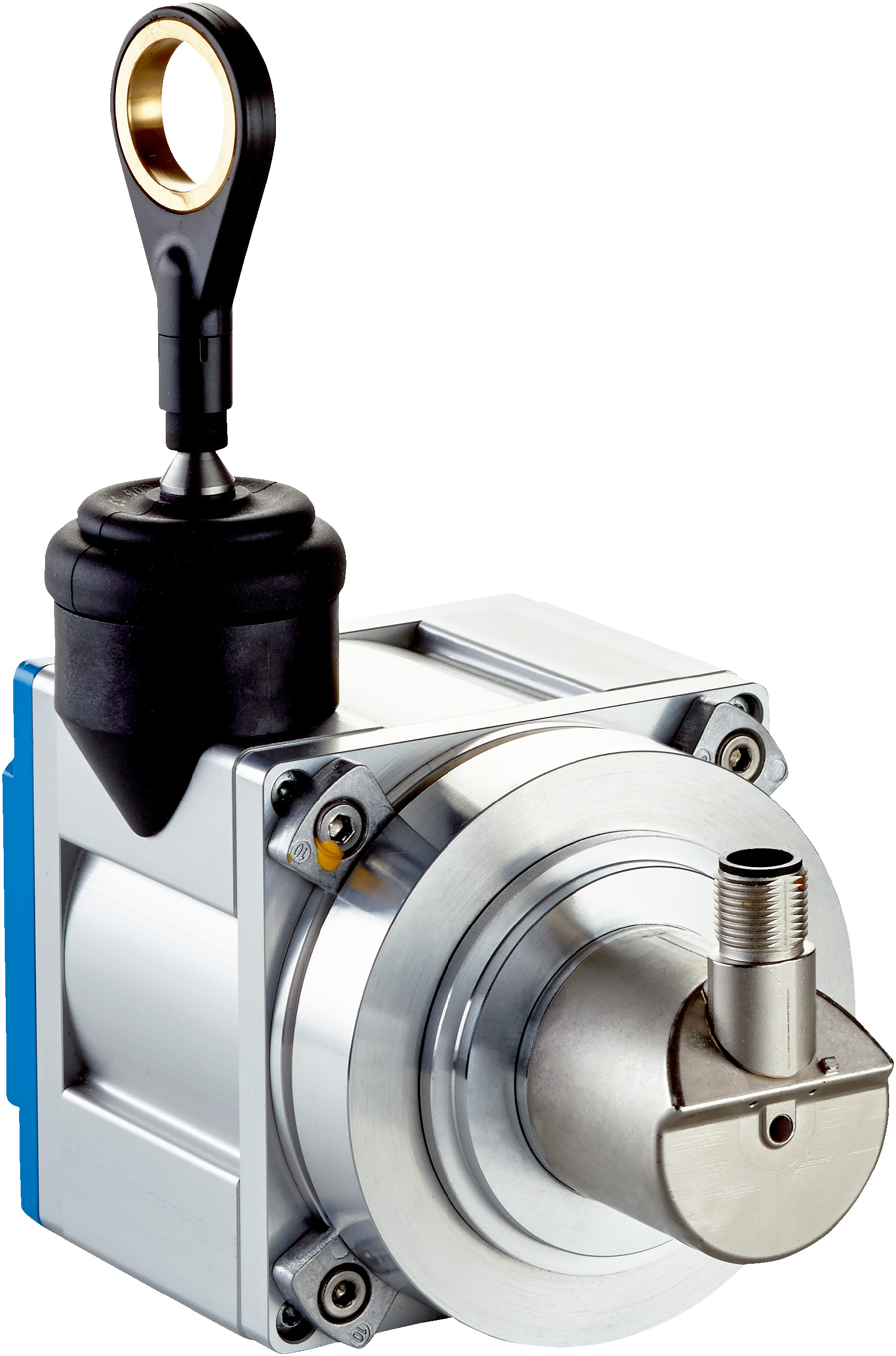

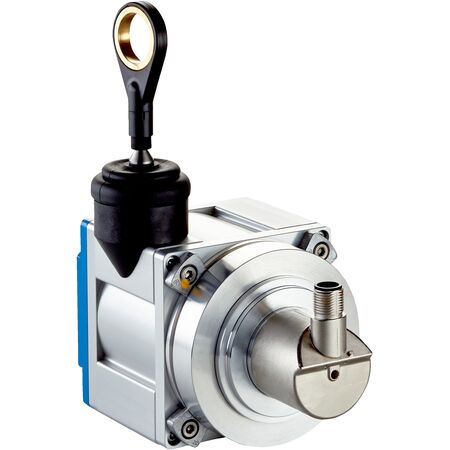

The Wire Draw Encoder BTF08-Q1RM0S01 is designed for precise position measurement in industrial automation. With an impressive measurement range of up to 2 meters and a high resolution of 0.01 mm, it ensures accuracy and reliability. Built for safety-related applications, this encoder features a robust aluminum housing with IP64 to IP67 protection ratings, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 2 m
- Encoder type: Absolute encoders
- Resolution: 0.01 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: IO-Link / IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Supply voltage: 18 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 6 N to 14 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -20 °C to +70 °C
- MTTFD: 240 years (EN ISO 13849-1)
- Dimensions (H x L x W): 80mm x 200mm x 80mm
- Weight: 1.42 kg
Key Features
- Absolute encoder with IO-Link V1.1 communication interface
- High measurement resolution of 0.01 mm
- Measurement range up to 2 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum housing with IP64 to IP67 protection ratings
- Spring return force between 6 N and 14 N
- Operating temperature range from -20 °C to +70 °C
- Power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long life cycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF08-Q1RM0S01 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
