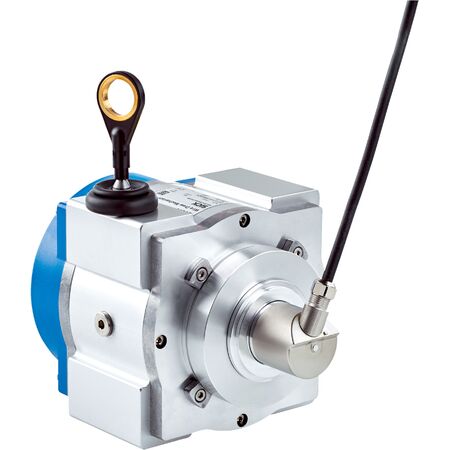

Wire Draw Encoder BTF13-A1MM0524 | 5m Measurement Range | 0.04mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-A1MM0524 is designed for precise position measurement in industrial automation. With a measurement range of up to 5 meters and a high resolution of 0.04 mm, it ensures reliable performance in safety-related applications. Built with robust aluminum and plastic housing, it features an IP64 to IP67 rating, making it ideal for harsh environments while offering a long life expectancy of typically 1,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Spring return force: 15 N to 20 N
- Life expectancy: Typically 1,000,000 cycles
- MTTFD: 230 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 5 meters
- High resolution of 0.04 mm with repeatability ≤ 1 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 15 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine control systems with absolute encoder feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-A1MM0524 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
