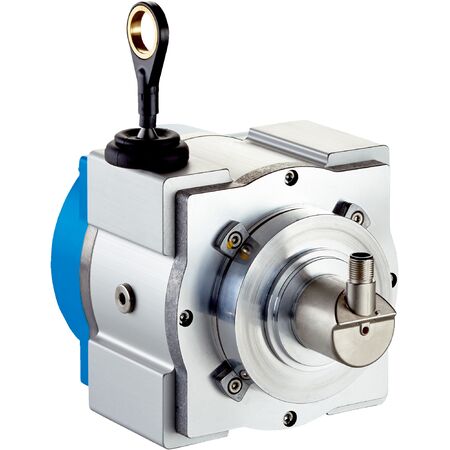

Wire Draw Encoder BTF13-A1NM0524 | 5m Measurement Range | 0.04mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-A1NM0524 offers a high measurement range of up to 5 meters and an impressive resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. With robust IP64 to IP67 protection and a flexible stainless steel measuring wire, this encoder ensures reliable performance in challenging environments, perfect for precise position measurement and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Weight: 2.92 kg
- Measuring wire: Highly flexible stranded 1.4401 stainless steel V4A
- Spring return force: 15 N to 20 N
- Life expectancy: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 5 meters
- High resolution of 0.04 mm with repeatability ≤ 1 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 15 N and 20 N
- Operating temperature range from -30 °C to +70 °C
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 1.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-A1NM0524 wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
