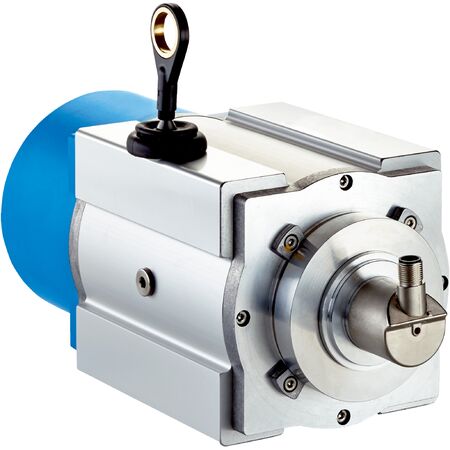

Wire Draw Encoder BTF13-A1NM2025 | Absolute Encoder | 20m Measurement Range | 0.04mm Resolution | by SICK
The Wire Draw Encoder BTF13-A1NM2025 is designed for precise length measurement in industrial automation, featuring a high measurement range of up to 20 meters and an impressive resolution of 0.04 mm. With its robust aluminum and plastic housing offering IP64 to IP67 protection, this encoder is built for reliability in safety-related applications and machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: SSI
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement range up to 20 meters
- High resolution of 0.04 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable position feedback
- Machine control and monitoring systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-A1NM2025 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
