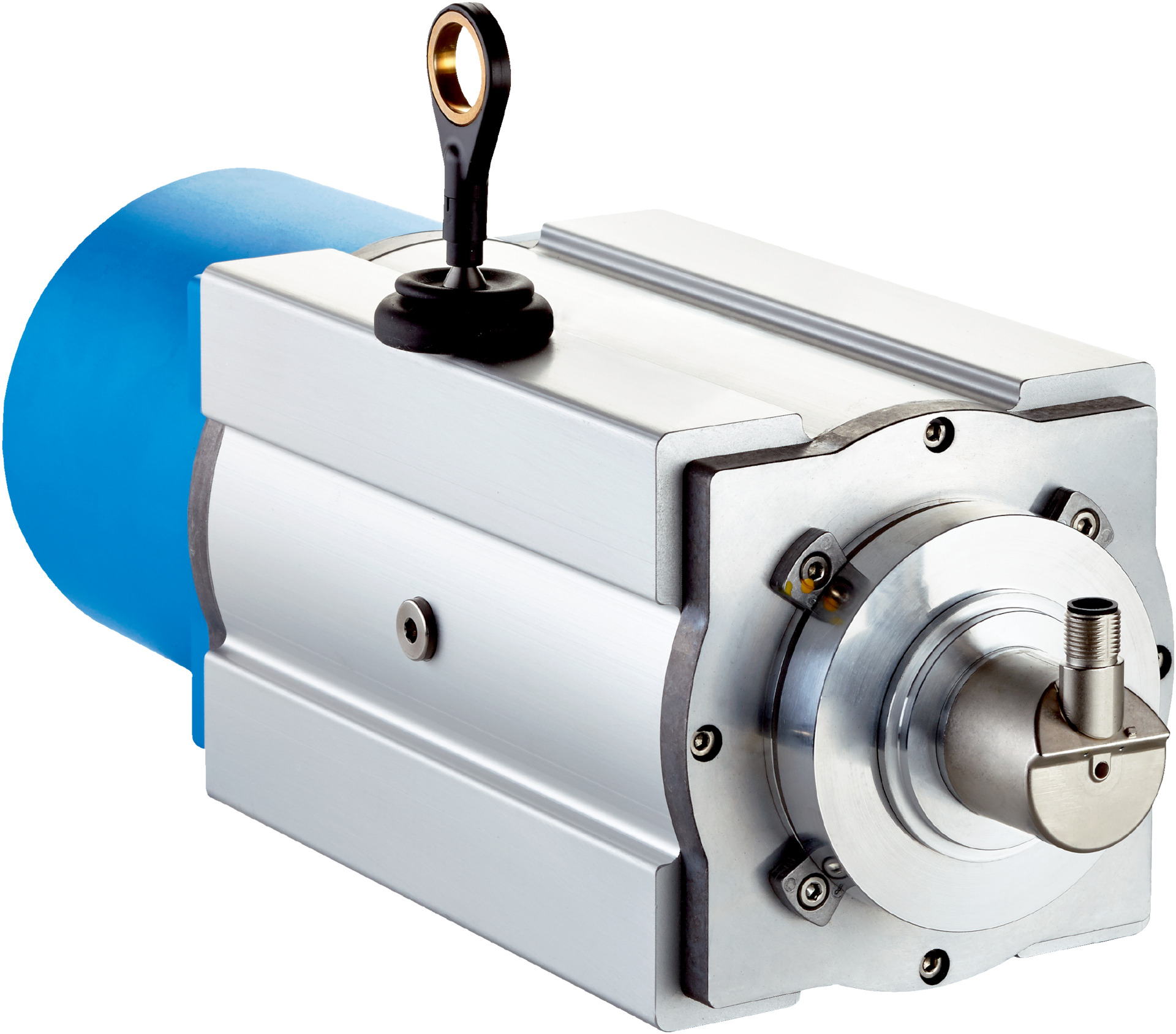

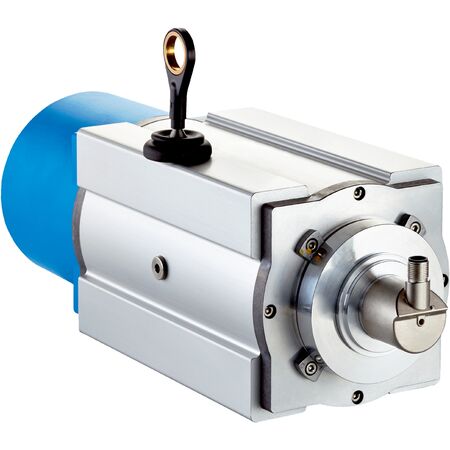

Wire Draw Encoder BTF13-A1NM3025 | 30 m Measurement Range | Absolute Encoder with SSI Interface | 0.04 mm Resolution | by SICK
The Wire Draw Encoder BTF13-A1NM3025 offers a measurement range of up to 30 m, featuring an absolute encoder with a high resolution of 0.04 mm. Ideal for industrial automation and safety-related applications, this encoder ensures precise length measurement and reliable performance in machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Encoder type: Absolute encoder
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: SSI
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Wire draw length: 30.2 m
- Operating speed: 6 m/s
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature: –30 °C to +70 °C
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Measurement range up to 30 m
- Absolute encoder with SSI communication interface
- High resolution of 0.04 mm
- Repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 10 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
