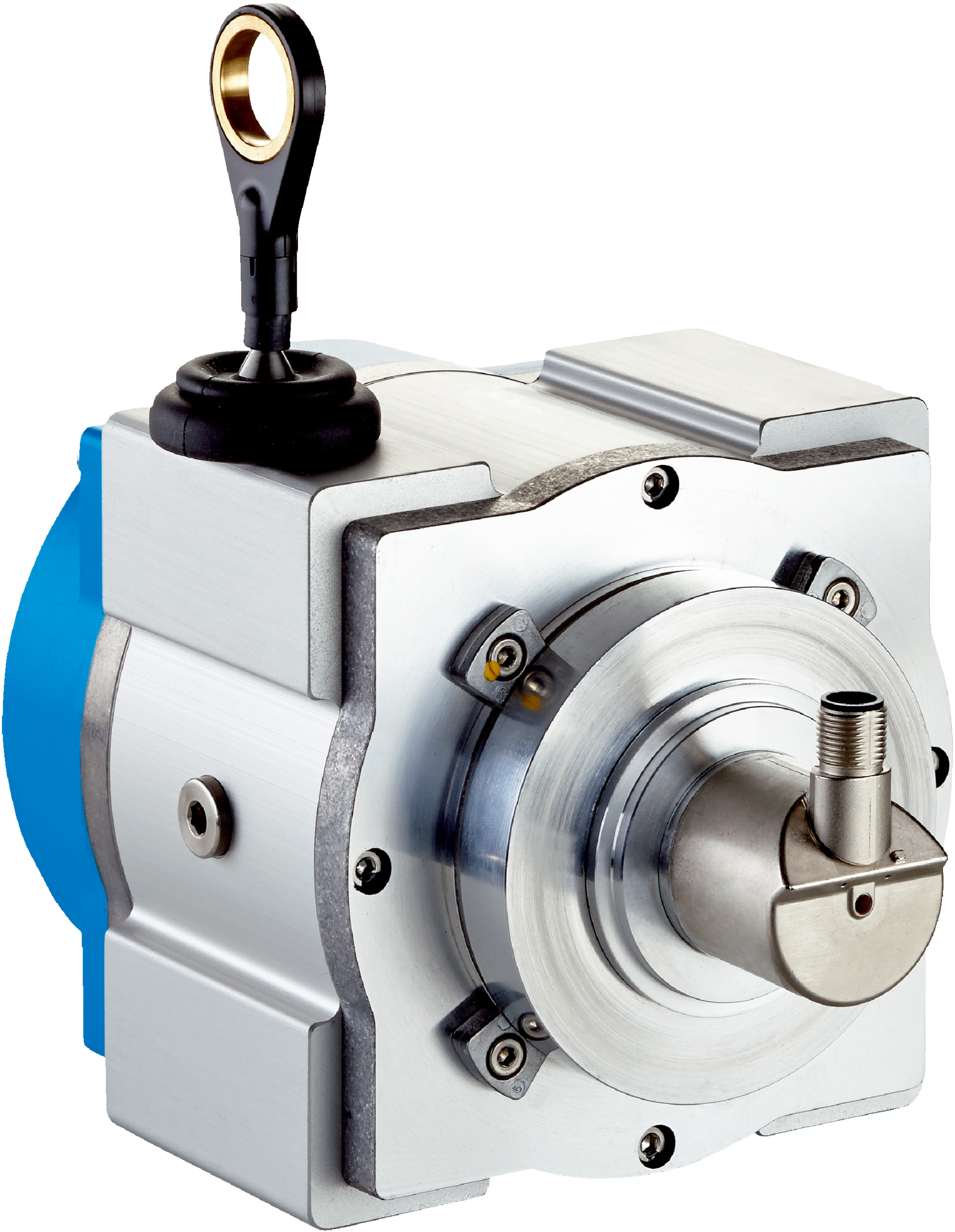

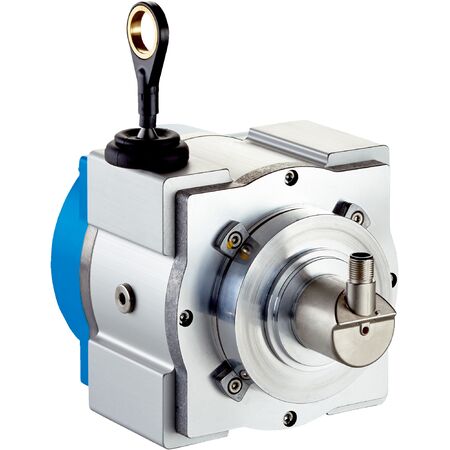

Wire Draw Encoder BTF13-C1QM0549 | 0.02 mm Resolution | 5 m Measurement Range | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-C1QM0549 offers precise length measurement with a high resolution of 0.02 mm and a measurement range of up to 5 meters. Designed for industrial automation, it features robust IP64 to IP67 protection and low power consumption, making it ideal for safety-related applications and machine control systems using CANopen communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with high resolution of 0.02 mm
- Measurement range up to 5 meters
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Programmable and configurable via CANopen interface
- Low power consumption ≤ 1.5 W
