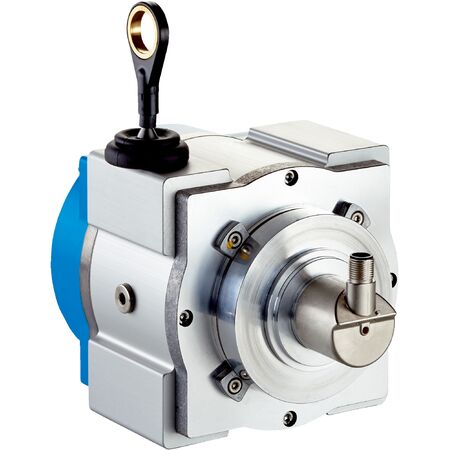

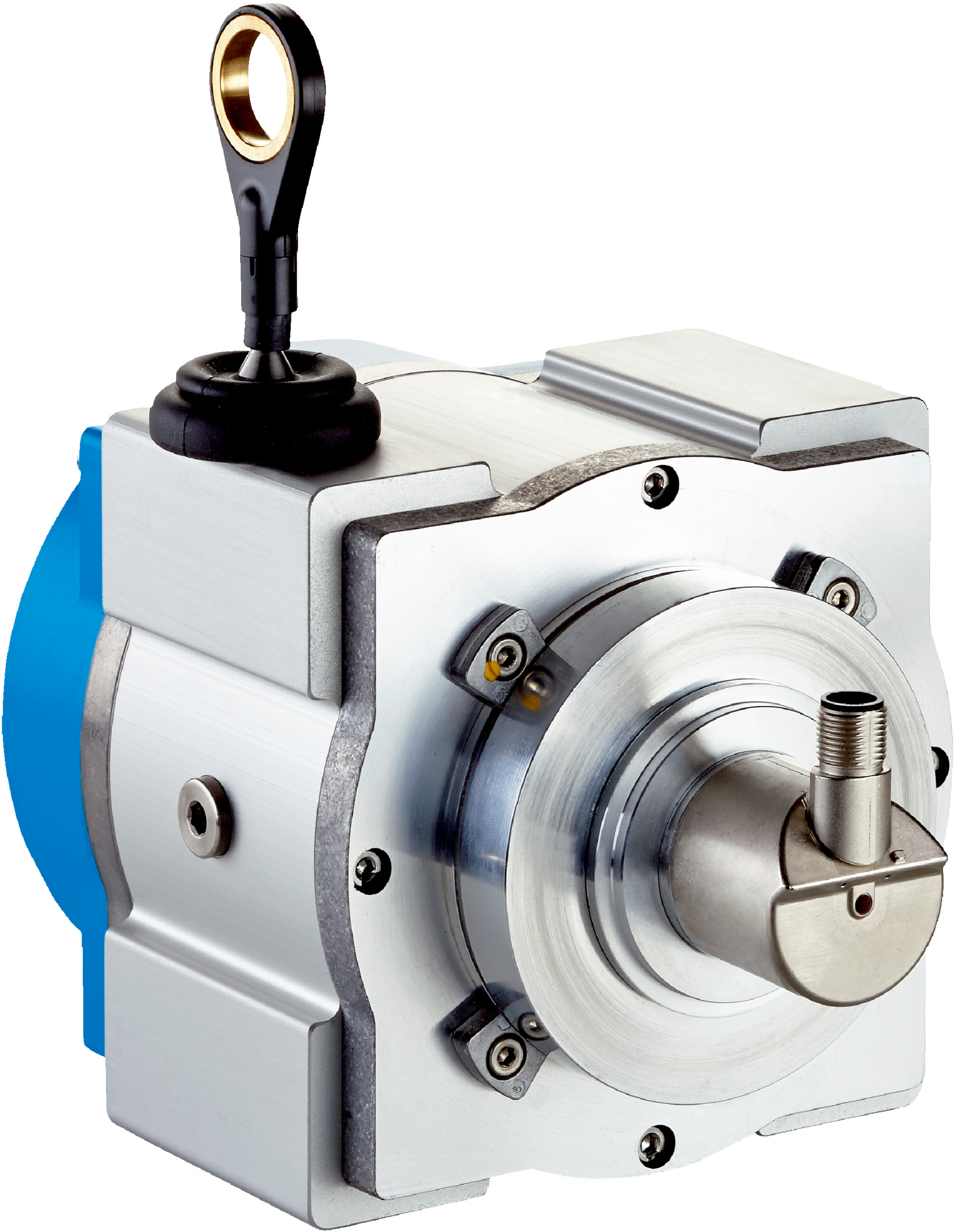

Wire Draw Encoder BTF13-C1QM05S01 | 5m Measurement Range | SSI Communication | IP64 Rated | by SICK
The Wire Draw Encoder BTF13-C1QM05S01 is designed for precise linear measurement in industrial automation. With a measurement range of 0 to 5 meters and an SSI communication interface, it ensures high reliability and accuracy. Built for demanding applications, this encoder features a robust aluminum housing and a flexible stainless steel measuring wire, making it ideal for position feedback in machinery and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SSI
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 2.92 kg
Key Features
- Special device with successor model AHM36A-S3CC000S10 premounted
- Absolute encoder with SSI communication interface
- Programmable and configurable
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum and plastic housing
- Long measuring wire length of 5.2 meters
- High operating speed up to 8 m/s
- IP64 enclosure rating with IP66 mounted mechanic and IP67 encoder protection
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Position feedback in machinery and equipment
- Safety-related applications requiring high reliability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Low power consumption of ≤ 1.5 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
