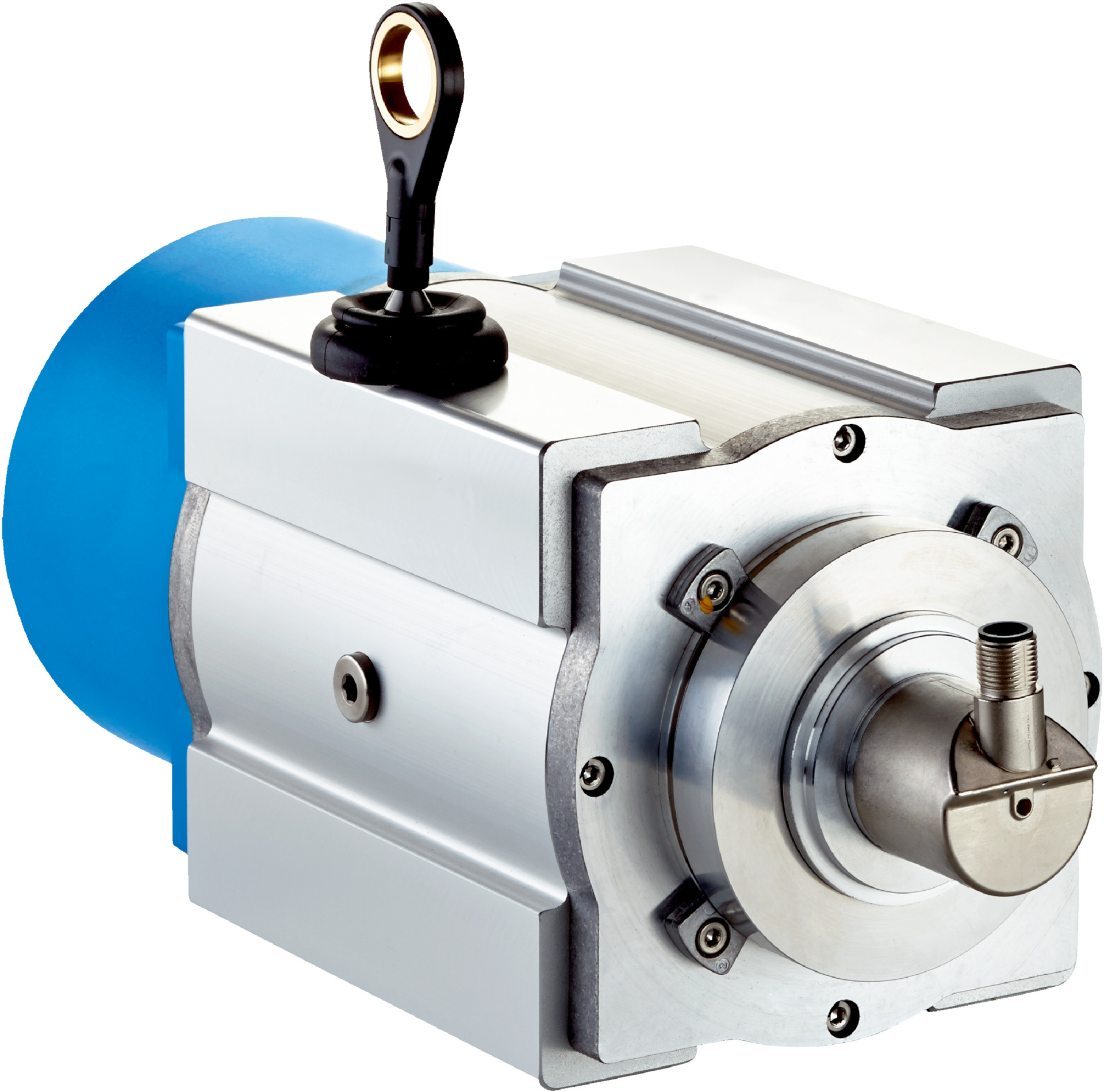

Wire Draw Encoder BTF13-C1QM2049 | 20m Measurement Range | 0.02mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-C1QM2049 is designed for precise wire length measurement in industrial automation. With a measurement range of up to 20 meters and a high resolution of 0.02 mm, it ensures reliable feedback for machine control systems. Built for durability, it features robust IP64 to IP67 protection and operates effectively in temperatures from -30 °C to +70 °C, making it ideal for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Resolution: 0.02 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: CANopen
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 5-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 10 N to 20 N
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.12 kg
Key Features
- Absolute encoder with CANopen communication interface
- High measurement range up to 20 meters
- High resolution of 0.02 mm with repeatability ≤ 2 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and CANopen communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with absolute position encoding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-C1QM2049 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
