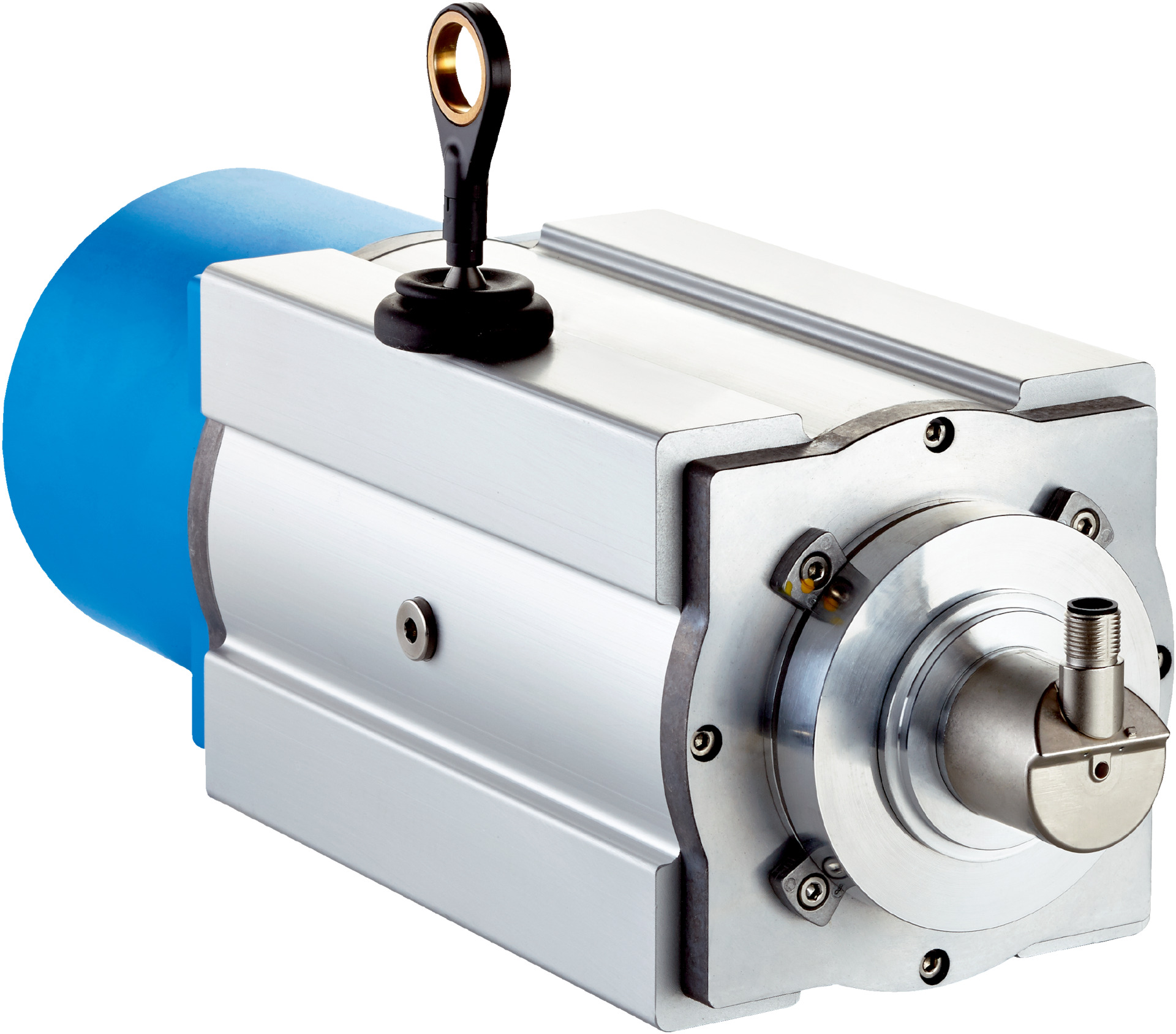

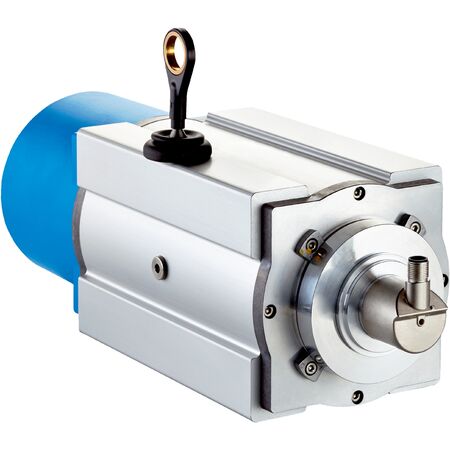

Wire Draw Encoder BTF13-C1QM30S01 | CANopen Interface | 30m Measurement Range | IP64 Rated | by SICK
The Wire Draw Encoder BTF13-C1QM30S01 features a high measurement range of up to 30 meters and a CANopen communication interface, making it ideal for industrial automation and safety-related applications. With high repeatability and linearity of ≤ 2 mm, this robust encoder is designed for environments requiring reliable performance and IP64 to IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 30 m
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: CANopen
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 15 m/s²
- Mounted encoder model: AHM36 CANopen
- Operating temperature range: -30 °C to +70 °C
- EMC: EN 61000-6-2 and EN 61000-6-3 compliant
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.32 kg
Key Features
- Absolute encoder with CANopen communication interface
- Programmable and configurable for versatile use
- High measurement range up to 30 meters
- High repeatability and linearity with ≤ 2 mm accuracy
- Robust aluminum and plastic housing with stainless steel wire
- Operating temperature range from -30°C to +70°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- IP64 enclosure rating, IP66 mounted mechanic, IP67 encoder protection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial encoder systems and CANopen communication protocols to ensure safety and optimal performance.
Applications
- Industrial automation requiring precise wire draw measurement
- Safety-related applications with high reliability demands
- Environments needing robust encoders with IP64 to IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.5 W reduces energy usage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-C1QM30S01 is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
