Wire Draw Encoder BTF13-E1BM0599 | EtherCAT Interface | 0.001 mm Resolution | IP64/IP67 Rated | by SICK

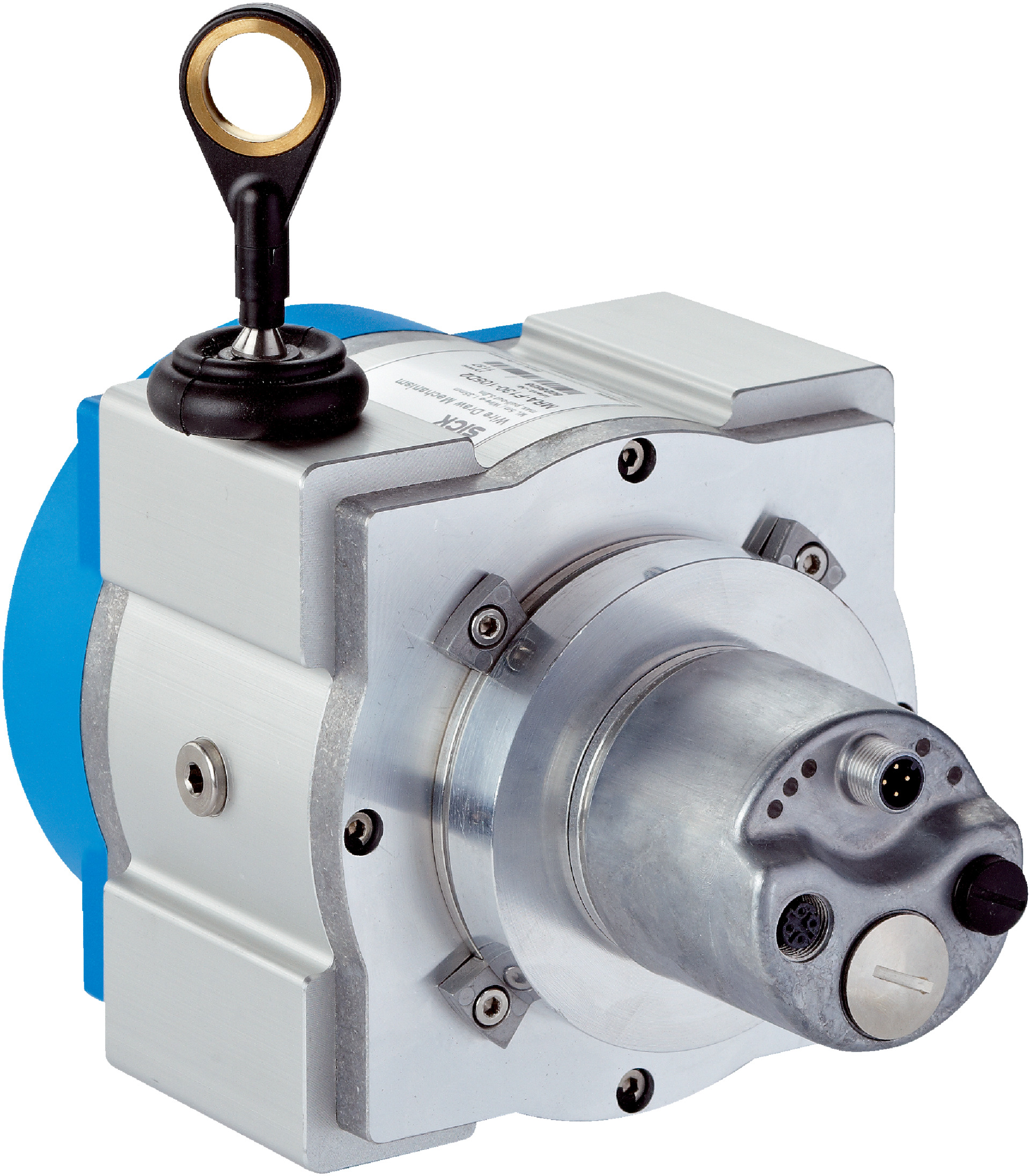

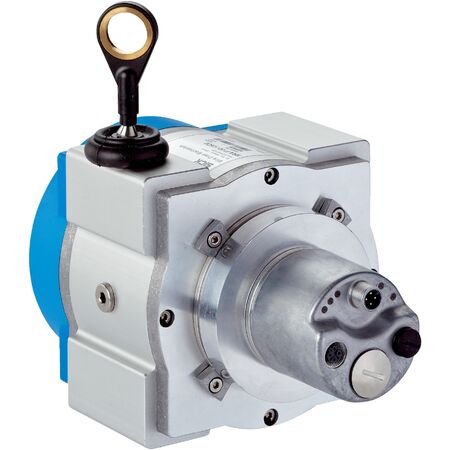

The Wire Draw Encoder BTF13-E1BM0599 features an EtherCAT communication interface and an impressive resolution of 0.001 mm, making it ideal for industrial automation and safety-related applications. With a robust IP64/IP67 rated housing and a wide operating temperature range of -30 °C to +70 °C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: EtherCAT
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3 kg
Key Features
- Absolute encoder with EtherCAT communication interface
- High resolution of 0.001 mm with repeatability ≤ 1 mm
- Robust aluminum and plastic housing with IP64/IP67 rating
- Spring return force between 15 N and 20 N
- Operating temperature range from -30 °C to +70 °C
- Programmable and configurable for flexible integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of ≤ 3 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-E1BM0599 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
