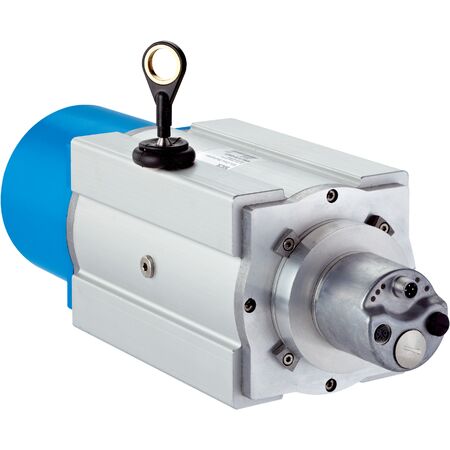

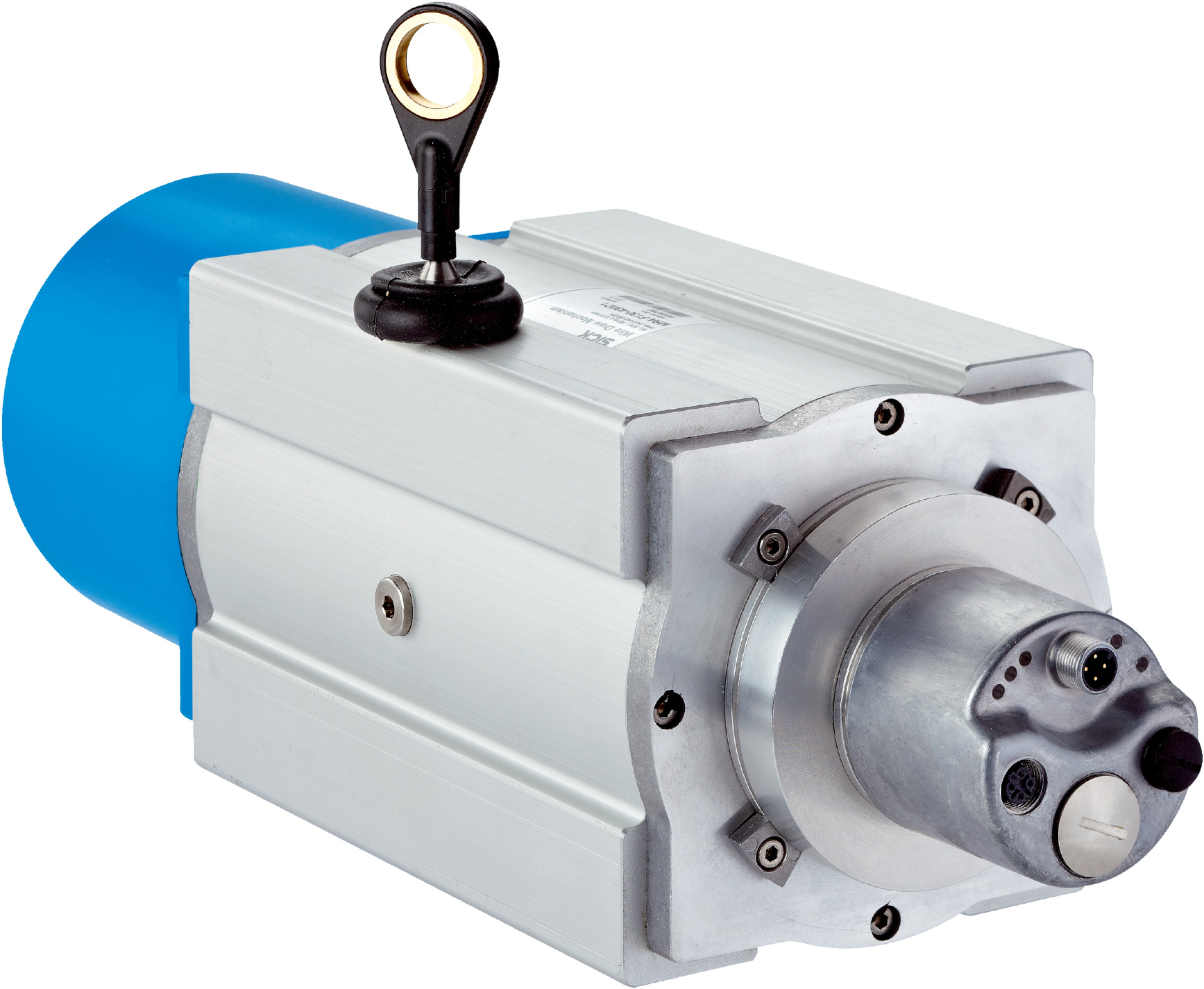

Wire Draw Encoder BTF13-E1BM3099 | 30m Measurement Range | 0.001mm Resolution | EtherCAT Communication | by SICK
The Wire Draw Encoder BTF13-E1BM3099 offers a measurement range of up to 30 meters with an impressive resolution of 0.001 mm, making it perfect for industrial automation and safety applications. Designed for reliability, it features EtherCAT communication and a robust housing with IP64/IP67 protection, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Measurement range: 0 m to 30 m
- Encoder type: Absolute encoders
- Resolution: 0.001 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: EtherCAT®
- Programmable/configurable: Yes
- Connection type: Male connector 1x M12 4-pin axial, Female connector 2x M12 4-pin axial
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Wire acceleration: 15 m/s²
- Operating speed: 6 m/s
- Mounted encoder model: AFM60 EtherCAT®
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.4 kg
Key Features
- Measurement range up to 30 m
- High resolution of 0.001 mm
- Repeatability ≤ 2 mm and linearity ≤ ± 2 mm
- Absolute encoder with EtherCAT communication interface
- Programmable and configurable
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial electrical and safety equipment to ensure compliance with safety standards and optimal device performance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W minimizes energy use
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-E1BM3099 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety measurement applications.
