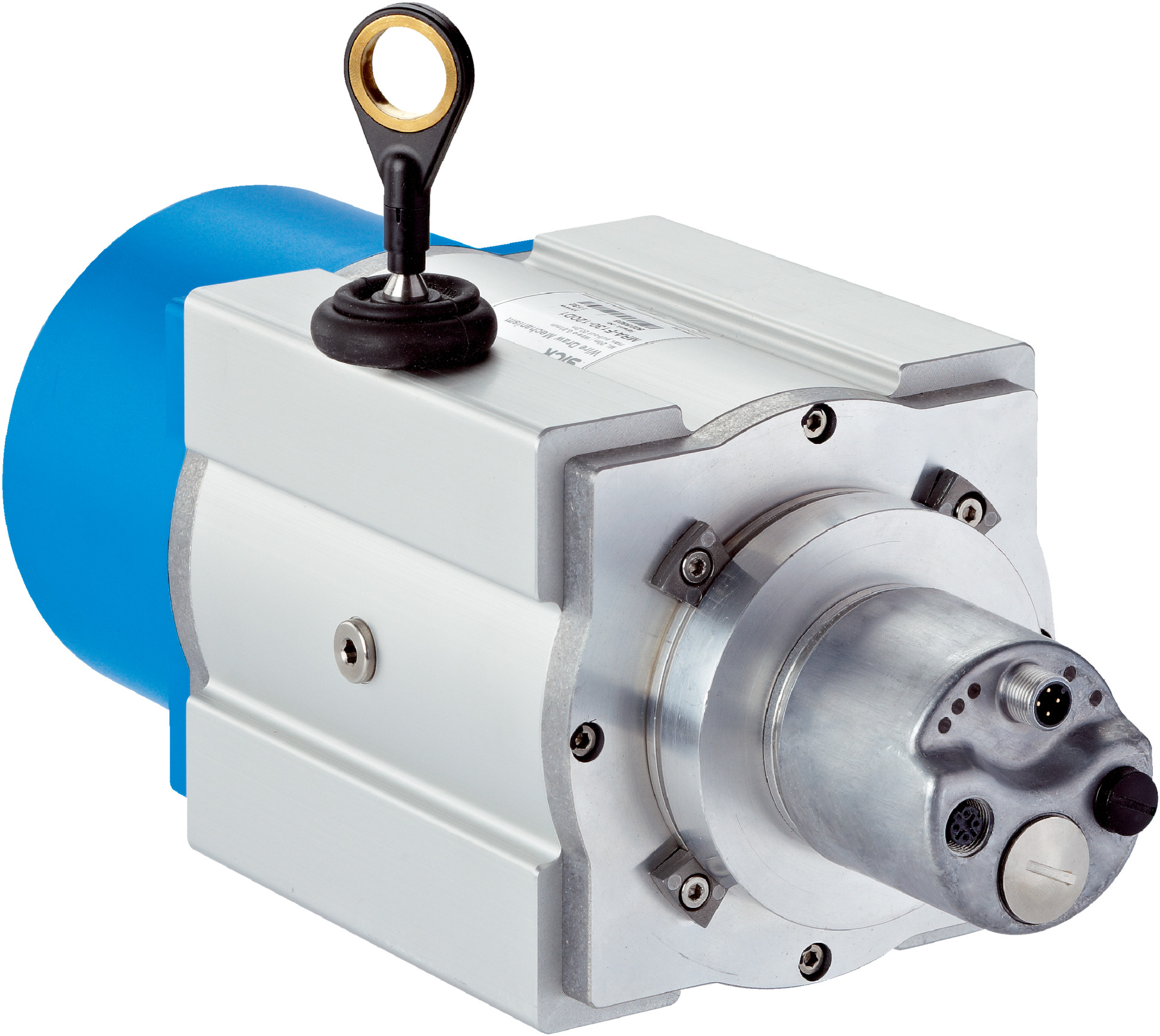

Wire Draw Encoder BTF13-I1BM1599 | 15m Measurement Range | 0.001mm Resolution | EtherNet/IP Communication | by SICK
The Wire Draw Encoder BTF13-I1BM1599 offers a measurement range of up to 15 meters with an impressive resolution of 0.001 mm, making it perfect for industrial automation and safety-related applications. Designed for reliability, it features a robust aluminum and plastic housing with IP64/IP67 protection, ensuring durability in various environments. Ideal for precise linear measurement and machine monitoring, this encoder is a must-have for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 15 m
- Resolution: 0.001 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: EtherNet/IP™
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 4 m/s
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- MTTFD: 80 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.7 kg
Key Features
- Measurement range up to 15 m
- High resolution of 0.001 mm
- Repeatability ≤ 1.5 mm
- Absolute encoder with EtherNet/IP communication interface
- Programmable and configurable
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and EtherNet/IP network configurations to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise linear measurement
- Safety-related applications requiring reliable position feedback
- Machine monitoring and control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 3 W
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK BTF13-I1BM1599 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
