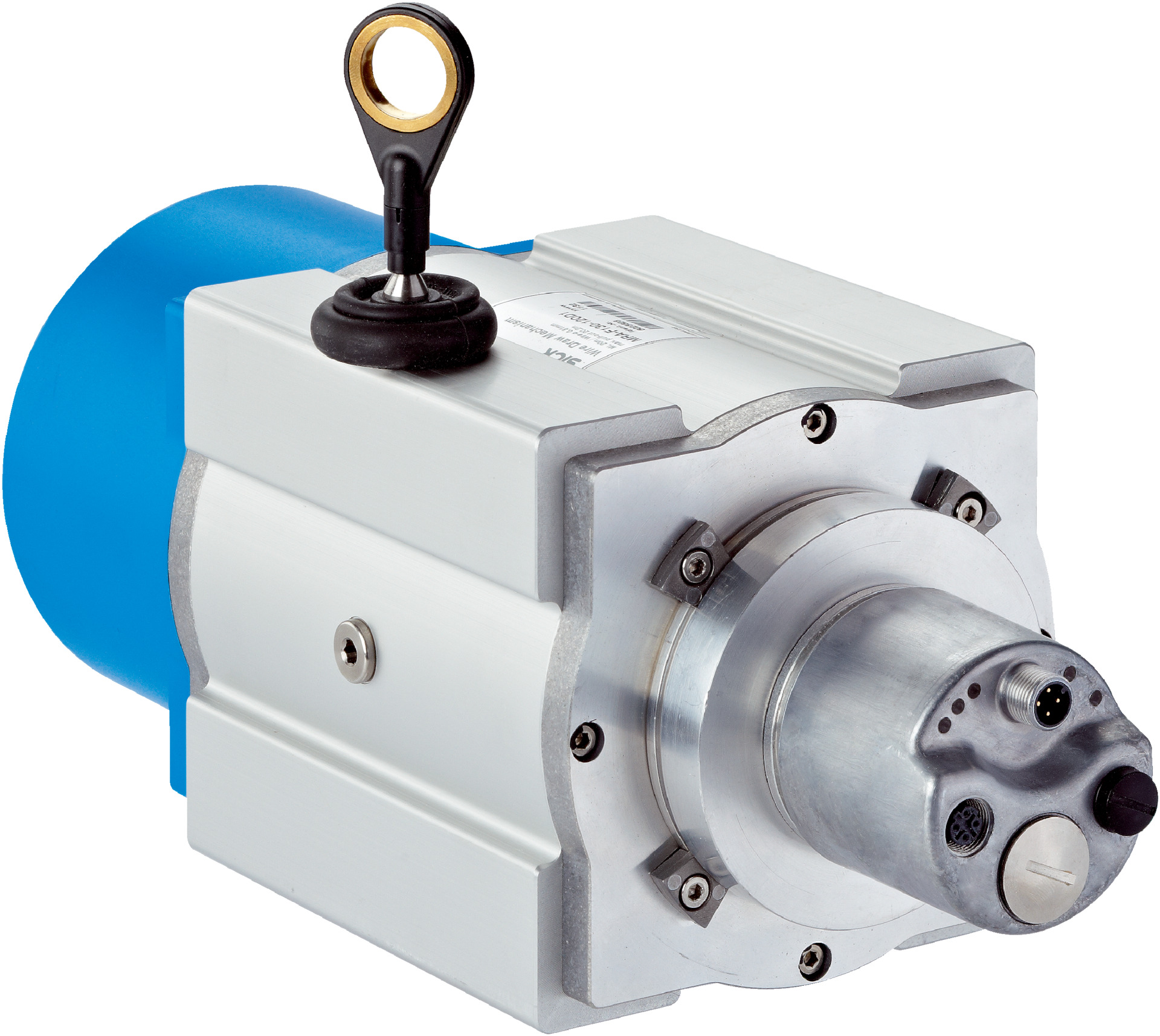

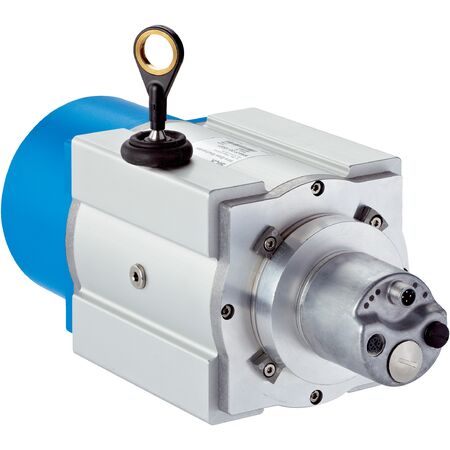

Wire Draw Encoder BTF13-I1BM2099 | 20m Measurement Range | 0.001mm Resolution | EtherNet/IP Interface | by SICK
The Wire Draw Encoder BTF13-I1BM2099 offers a measurement range of up to 20 meters with an impressive resolution of 0.001 mm, making it perfect for industrial automation and precise length measurement applications. Designed for robust performance, it features an EtherNet/IP communication interface for seamless integration and operates efficiently in temperatures ranging from -30 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.001 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: EtherNet/IP
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 3 W (without load)
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life expectancy: Approximately 1,000,000 cycles
- Operating temperature: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.2 kg
Key Features
- Measurement range up to 20 m with high precision
- Absolute encoder with resolution of 0.001 mm
- Repeatability and linearity within ±2 mm
- EtherNet/IP communication interface for easy integration
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- Highly flexible stainless steel measuring wire
- Spring return force between 10 N and 20 N
- Long service life with approximately 1,000,000 cycles
