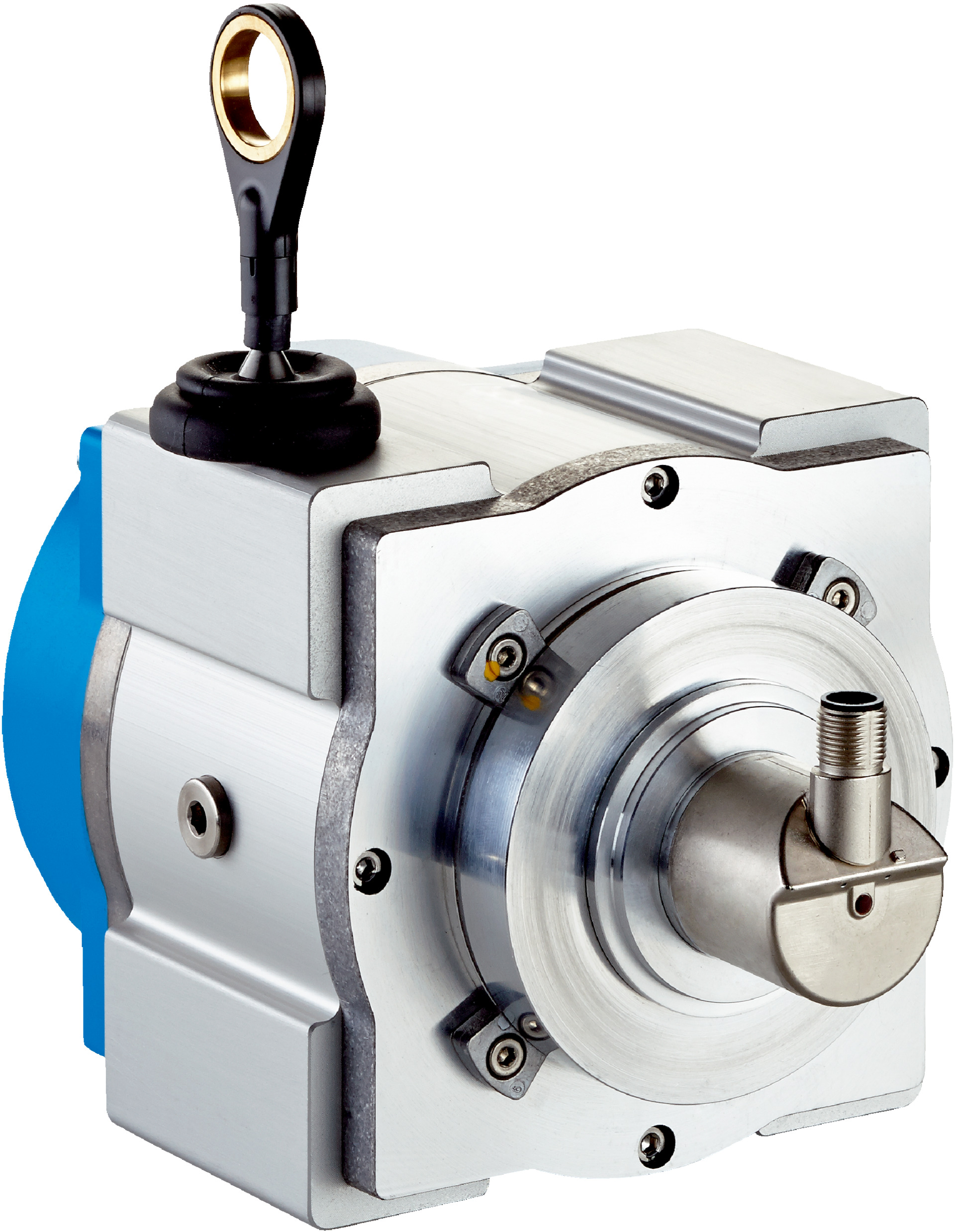

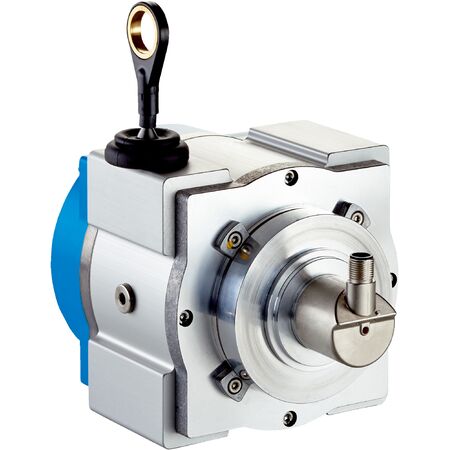

Wire Draw Encoder BTF13-J1QM0564 | 0.02 mm Resolution | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-J1QM0564 offers precise position measurement with a high resolution of 0.02 mm and repeatability of ≤ 1 mm. Designed for industrial automation and safety monitoring, this encoder features a robust aluminum and plastic housing with IP64 to IP67 protection, making it ideal for harsh environments. With a life expectancy of approximately 1,000,000 cycles and low power consumption, it ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: SAE J1939
- Connection type: Male connector, M12, 5-pin, universal
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Measuring wire material: Highly flexible stranded 1.4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- Operating temperature range: –30 °C to +70 °C
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 2.92 kg
Key Features
- Absolute encoder with SAE J1939 communication interface
- High resolution of 0.02 mm with repeatability ≤ 1 mm
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Highly flexible stranded stainless steel measuring wire
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 15 N and 20 N
- Life expectancy of wire draw mechanism approximately 1,000,000 cycles
- Low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related monitoring in machinery
- Measurement in harsh environments requiring IP64 to IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-J1QM0564 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
