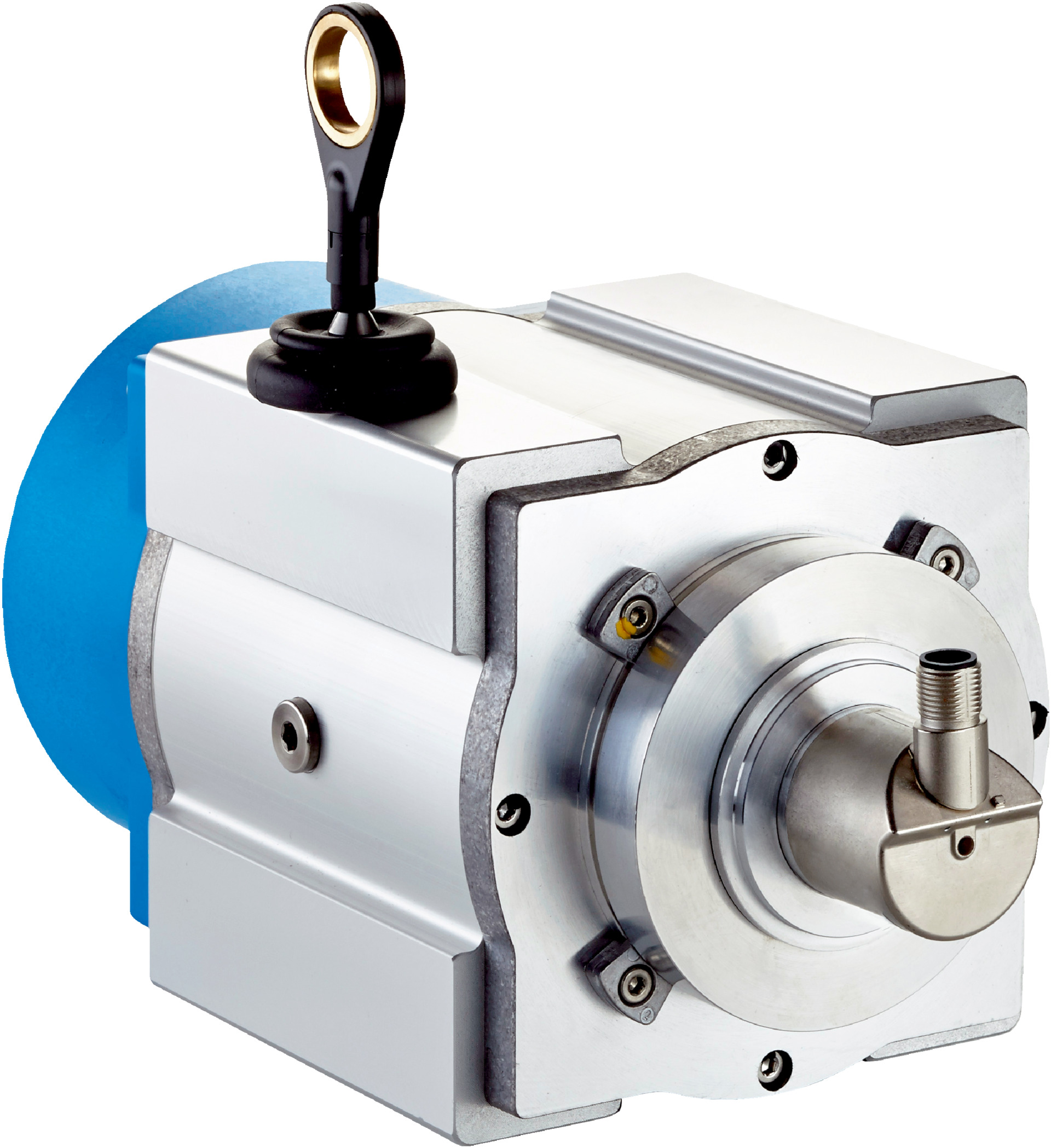

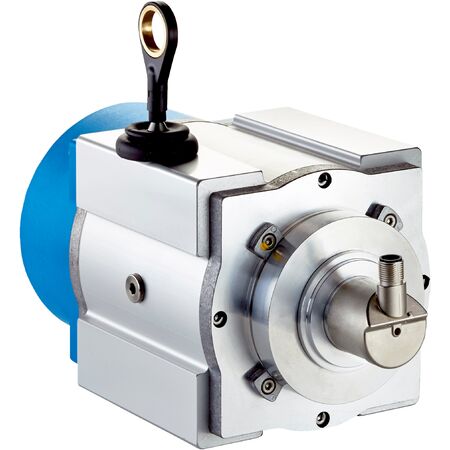

Wire Draw Encoder BTF13-J1QM1064 | 0.02 mm Resolution | 10 m Measurement Range | IP64 to IP67 Protection | by SICK
The Wire Draw Encoder BTF13-J1QM1064 offers precise measurement with a resolution of 0.02 mm and a range of up to 10 meters. Designed for industrial automation, this encoder features a robust aluminum and plastic housing with IP64 to IP67 protection, making it ideal for safety-related applications. With a long life expectancy of approximately 1,000,000 cycles, it ensures reliable performance in machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Resolution: 0.02 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: SAE J1939
- Supply voltage: 10 V to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12, 5-pin universal connector
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Wire acceleration: 40 m/s²
- Operating speed: 8 m/s
- Life expectancy: Approximately 1,000,000 cycles
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP64 (mechanic IP66, encoder IP67)
- MTTFD: 270 years (EN ISO 13849-1)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.62 kg
Key Features
- Absolute encoder with high resolution of 0.02 mm
- Measurement range up to 10 meters
- Highly flexible stranded stainless steel measuring wire
- Robust aluminum and plastic housing with IP64 to IP67 protection
- Programmable and configurable communication via SAE J1939
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and electrical safety standards.
Applications
- Industrial automation for precise wire length measurement
- Safety-related applications requiring reliable encoder feedback
- Machine control systems with absolute position encoding
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF13-J1QM1064 Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
