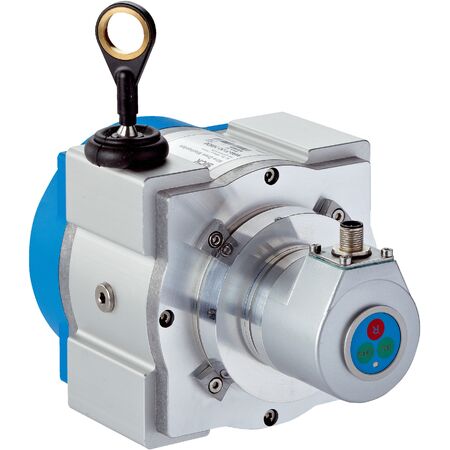

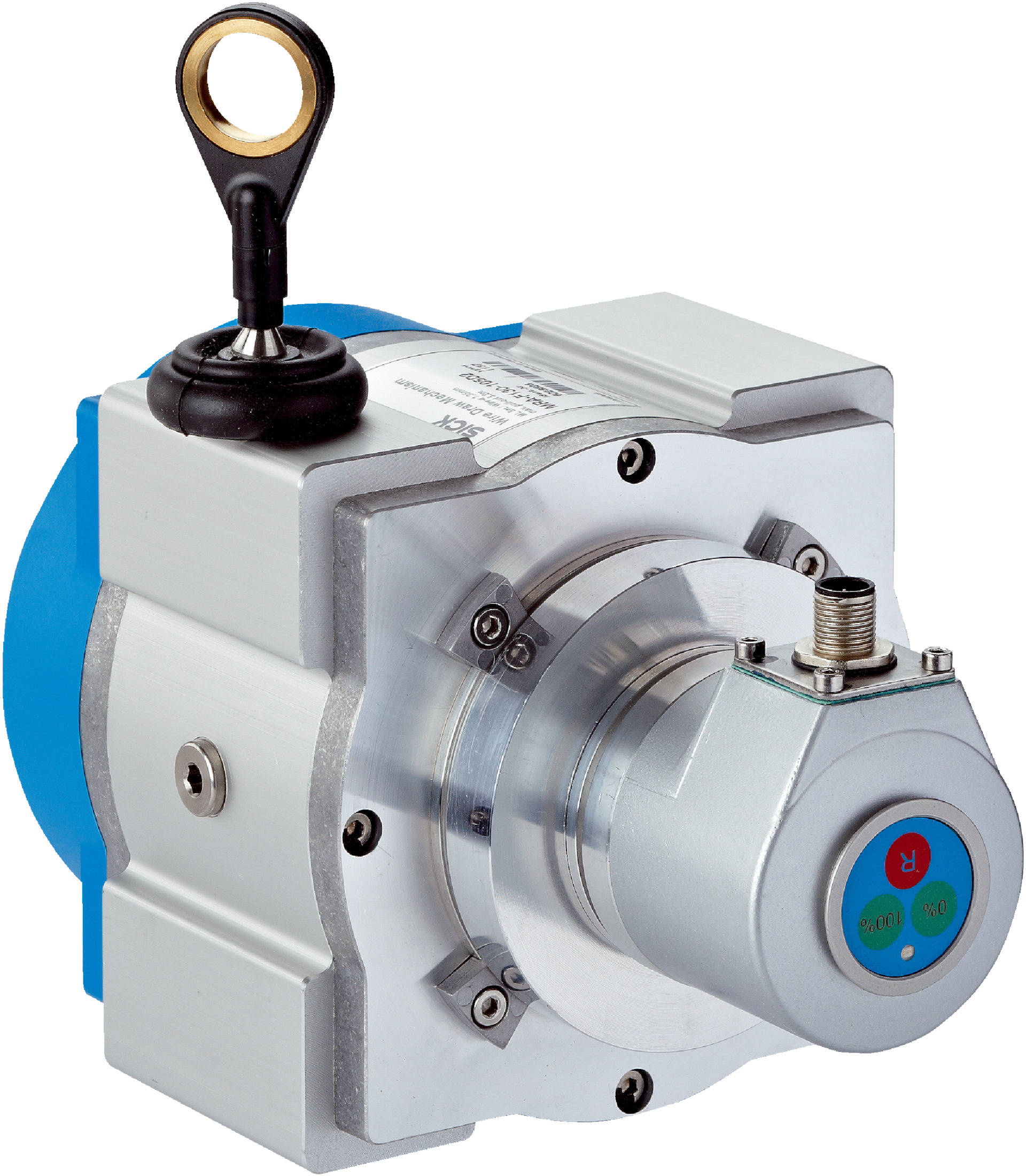

Wire Draw Encoder BTF13-K1EM10PP | 10m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-K1EM10PP offers a measurement range of up to 10 meters with an impressive resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, this absolute encoder features a robust IP64/IP67 rated housing and a long life wire draw mechanism, ensuring reliability and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: Analog / Current / 4...20 mA
- Programmable/configurable interface
- Connection type: Male connector, M12, 5-pin, radial
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Spring return force: 10 N to 20 N
- Length of wire pulled out per revolution: 332.4 mm
- Life of wire draw mechanism: Approximately 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 40 m/s²
- Mounted encoder model: ACM60, ACM60B-S1KE13X06
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.9 kg
Key Features
- Measurement range up to 10 meters
- Absolute encoder with high resolution of 0.04 mm
- Repeatability ≤ 1.5 mm and linearity ≤ ± 2 mm
- Analog current output (4...20 mA) with programmable interface
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from -30 °C to +70 °C
- High spring return force between 10 N and 20 N
- Long life wire draw mechanism rated for approximately 1,000,000 cycles
