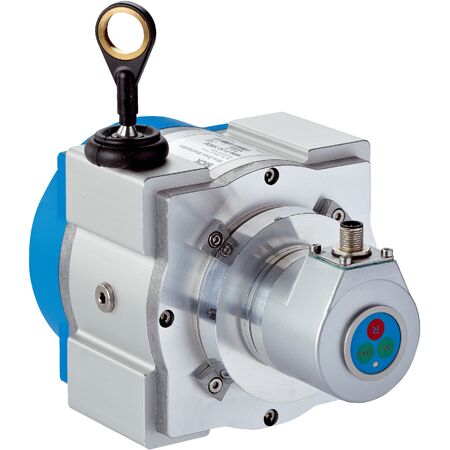

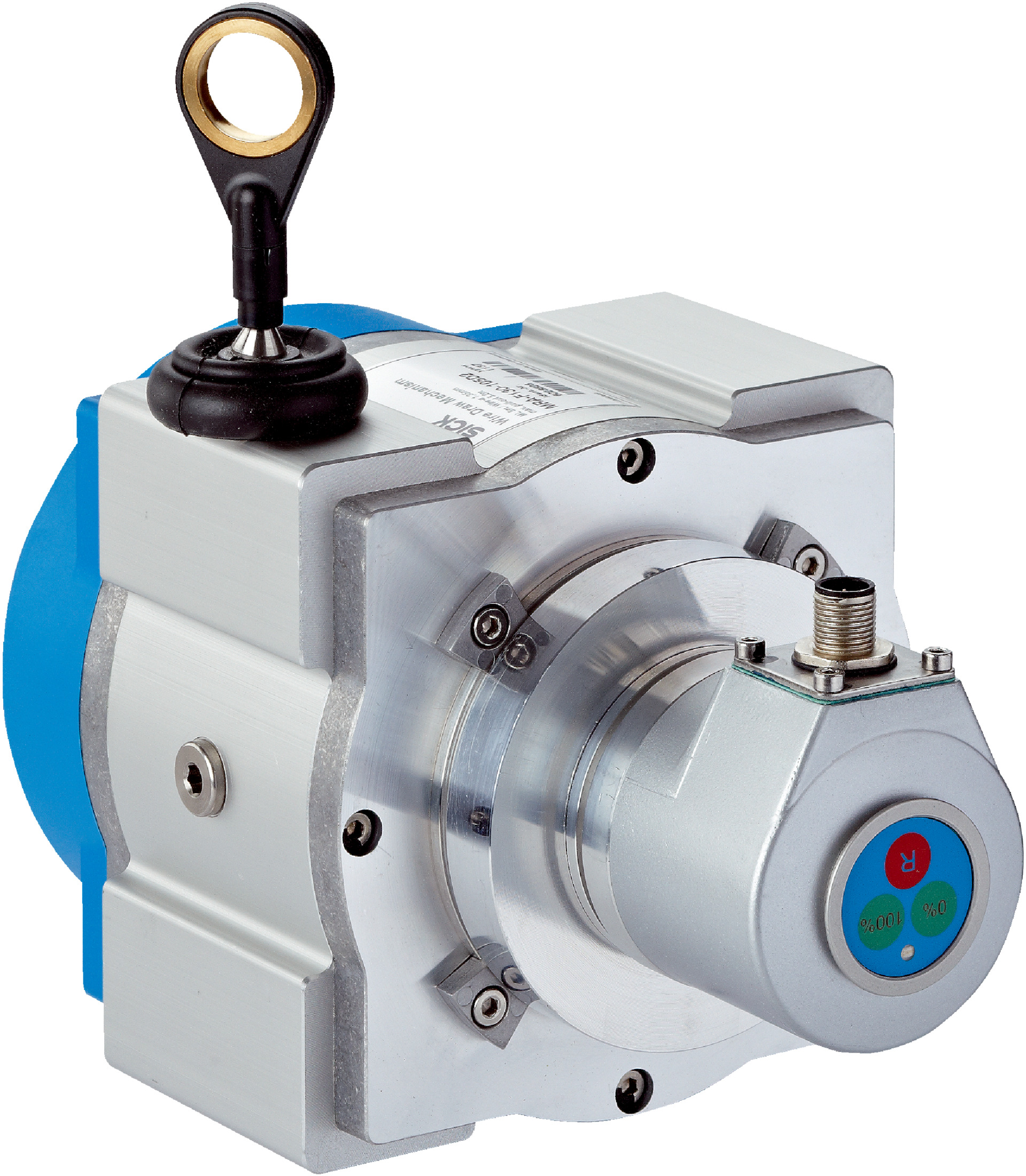

Wire Draw Encoder BTF13-K1EM20PP | 20m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-K1EM20PP offers a measurement range of up to 20 meters with an impressive resolution of 0.04 mm, making it perfect for industrial automation and precise length measurement. Designed for safety monitoring in machinery, this absolute encoder features robust IP64/IP67 protection and a long-lasting wire draw mechanism, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Analog / Current / 4...20 mA
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 0.81 mm
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.4 kg
Key Features
- Measurement range up to 20 m
- Absolute encoder with high resolution of 0.04 mm
- Repeatability and linearity within ±2 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- Programmable and configurable communication interface (4...20 mA current output)
- High operating speed up to 6 m/s
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise length measurement
- Safety-related monitoring in machinery
- Process control requiring accurate wire draw measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BTF13-K1EM20PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
