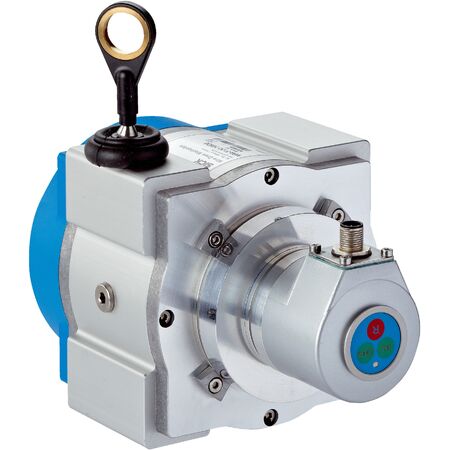

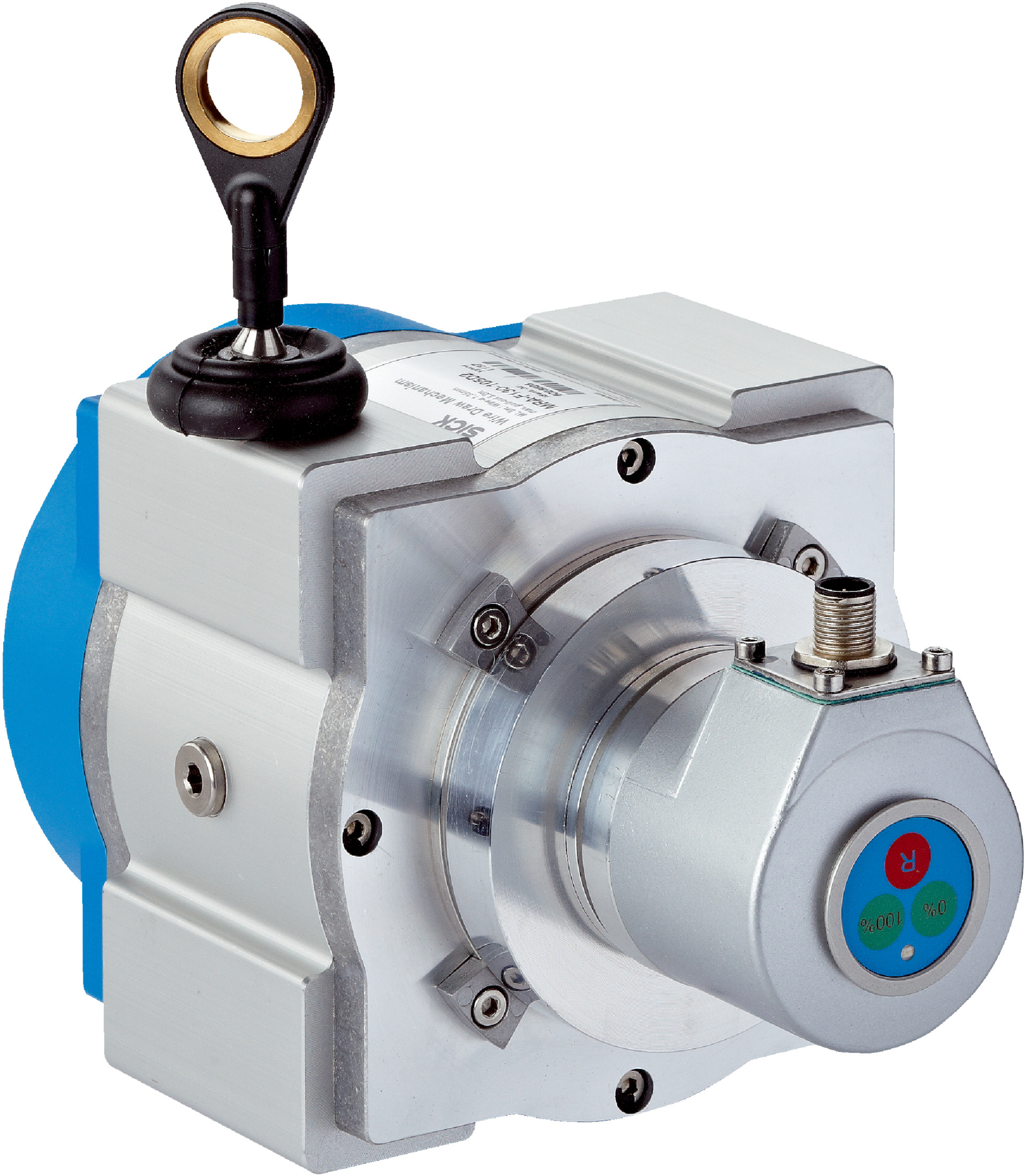

Wire Draw Encoder BTF13-L1EM05PP | 5m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-L1EM05PP offers a measurement range of up to 5 meters with an impressive resolution of 0.04 mm, making it ideal for industrial automation and safety-related applications. Designed for precise length measurement, this absolute encoder features robust IP64/IP67 protection and a long-lasting wire draw mechanism, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 5 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Analog / Voltage / 0...10 V
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded steel 1,4401 stainless steel V4A
- Measuring wire diameter: 1.35 mm
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Mounted encoder model: ACM60, ACM60B-S1LE13X06
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 3.2 kg
Key Features
- Measurement range up to 5 meters
- Absolute encoder with high resolution of 0.04 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable and configurable communication interface (Analog / Voltage / 0...10 V)
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 15 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise length measurement
- Safety-related applications requiring reliable wire draw measurement
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK BTF13-L1EM05PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
