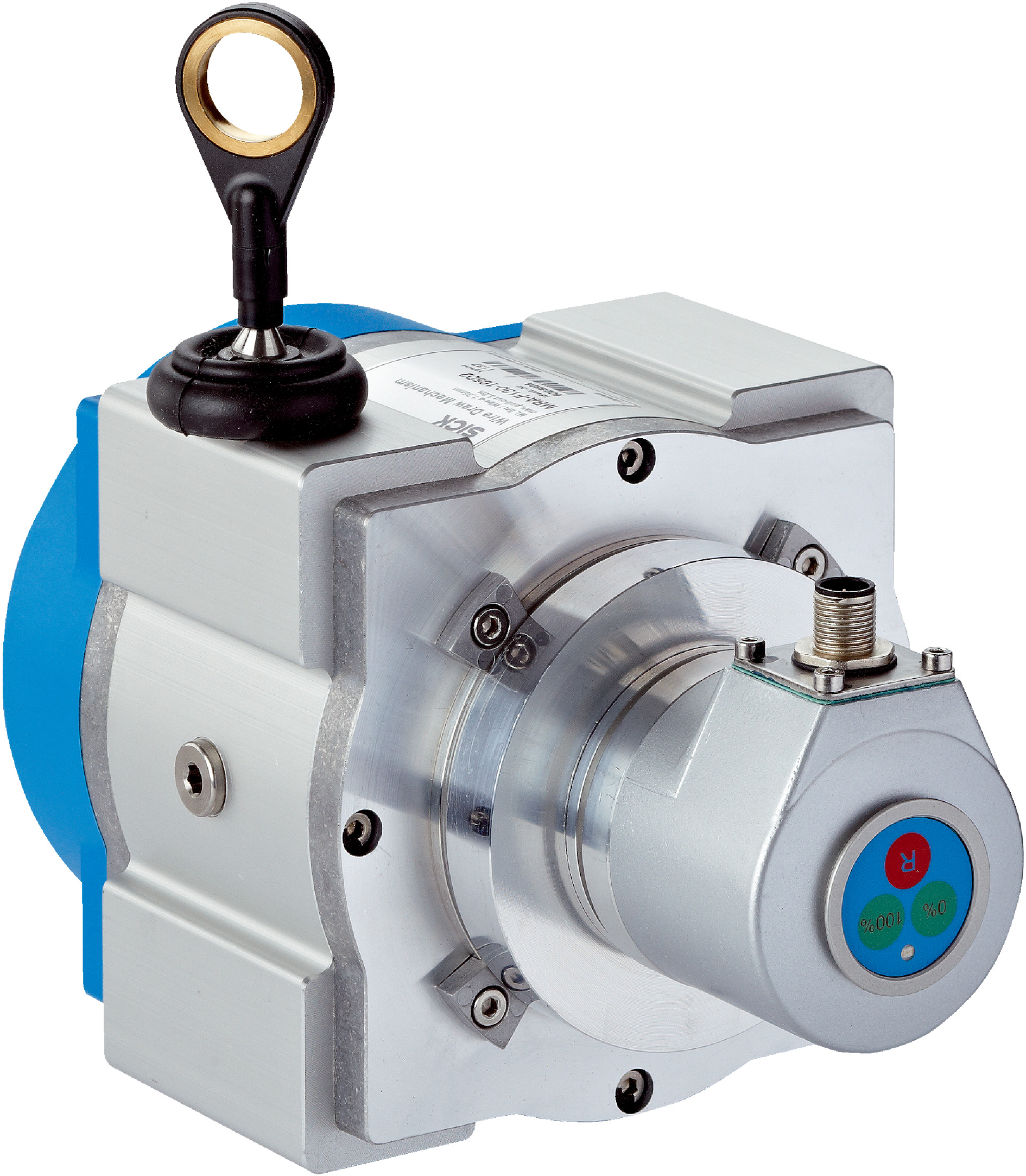

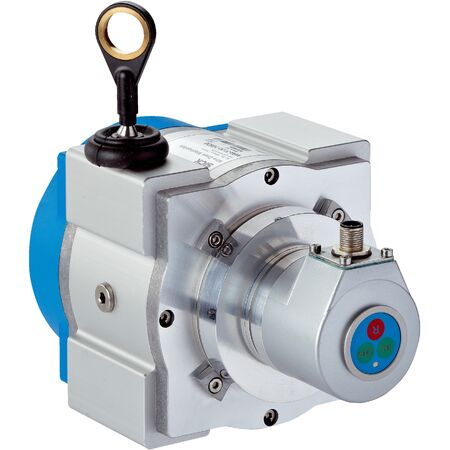

Wire Draw Encoder BTF13-L1EM10PP | 10m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-L1EM10PP offers a measurement range of up to 10 meters with an impressive resolution of 0.04 mm, making it ideal for precise linear position measurement in industrial automation. Built for reliability, it features a robust aluminum and plastic housing with IP64/IP67 protection, ensuring durability in demanding environments. Perfect for machine monitoring and control systems, this encoder is designed for safety-related applications requiring high accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 10 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 1.5 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 3 mm
- Communication interface: Analog / Voltage / 0...10 V
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Connection type: Male connector, M12, 5-pin, radial
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Measuring wire diameter: 1.35 mm
- Housing material: Aluminum (anodised) and plastic
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3.9 kg
