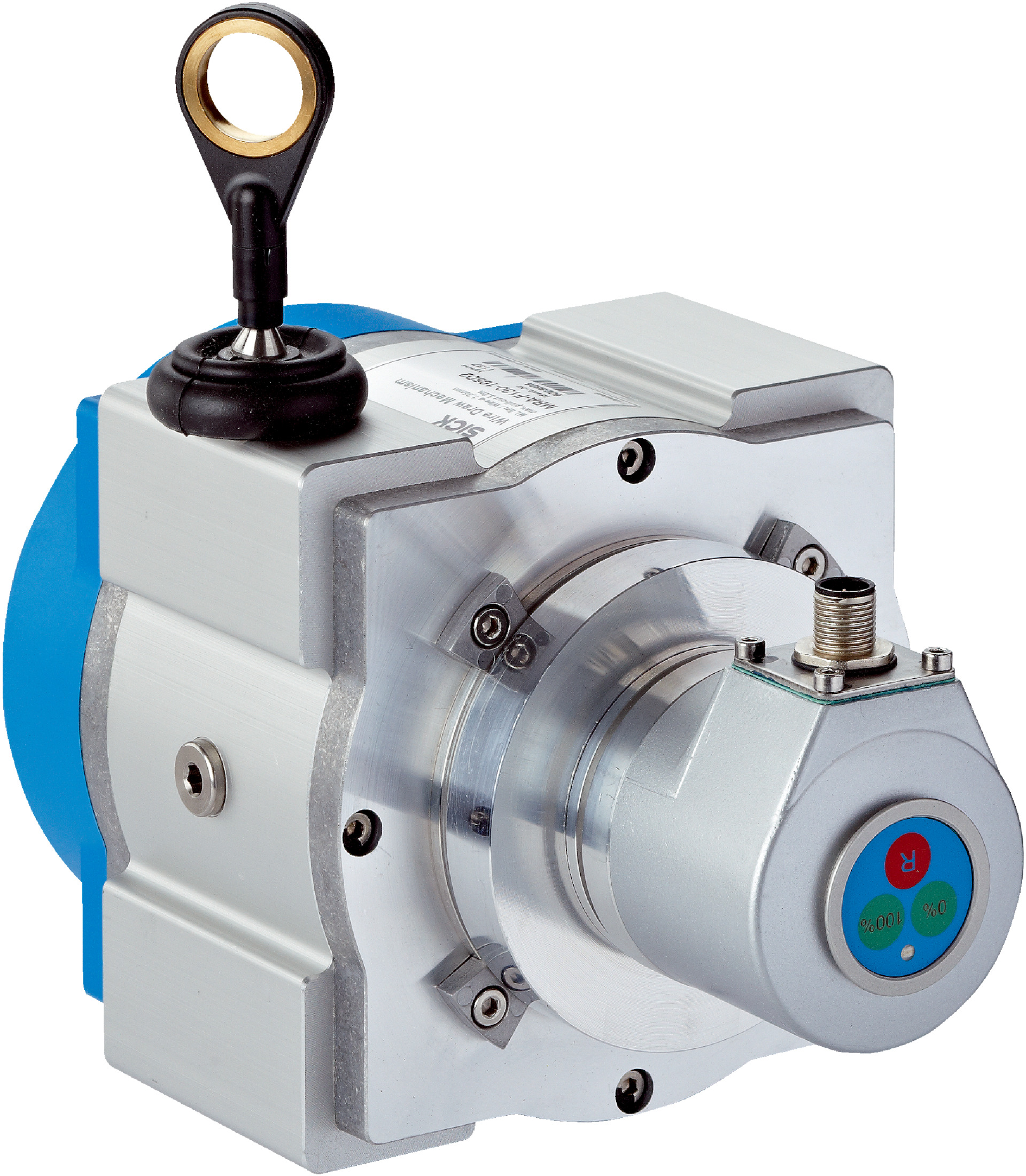

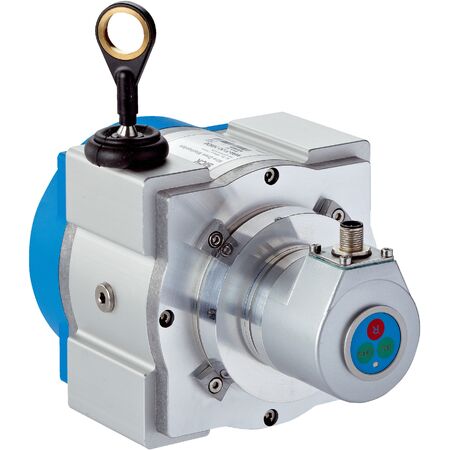

Wire Draw Encoder BTF13-L1EM20PP | 20m Measurement Range | 0.04mm Resolution | IP64/IP67 Rated | by SICK
The Wire Draw Encoder BTF13-L1EM20PP offers a measurement range of up to 20 meters and features an absolute encoder for precise position measurement with a high resolution of 0.04 mm. Ideal for industrial automation and safety monitoring applications, this encoder is built with robust aluminum and plastic housing, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 20 m
- Encoder type: Absolute encoders
- Resolution: 0.04 mm
- Repeatability: ≤ 2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 5 mm
- Communication interface: Analog / Voltage / 0...10 V
- Programmable/configurable: Yes
- Connection type: Male connector, M12, 5-pin, radial
- Supply voltage: 18 V DC to 33 V DC
- Operating current: ≤ 80 mA (without load)
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Measuring wire diameter: 0.81 mm
- Housing material: Aluminum (anodised), plastic
- Spring return force: 10 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 6 m/s
- Wire acceleration: 30 m/s²
- Mounted encoder model: ACM60, ACM60B-S1LE13X06
- Enclosure rating: IP64 (mechanic IP67, encoder IEC 60529)
- Operating temperature range: -30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 5.4 kg
Key Features
- Measurement range up to 20 m
- Absolute encoder for precise position measurement
- High resolution of 0.04 mm
- Repeatability and linearity within ±2 mm
- Robust aluminum and plastic housing with IP64/IP67 protection
- Programmable and configurable communication interface (Analog/Voltage 0...10 V)
- Spring return force between 10 N and 20 N
- Long life wire draw mechanism with approximately 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and control systems
- Measurement and positioning in manufacturing processes
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 80 mA)
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK BTF13-L1EM20PP Wire Draw Encoder is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
